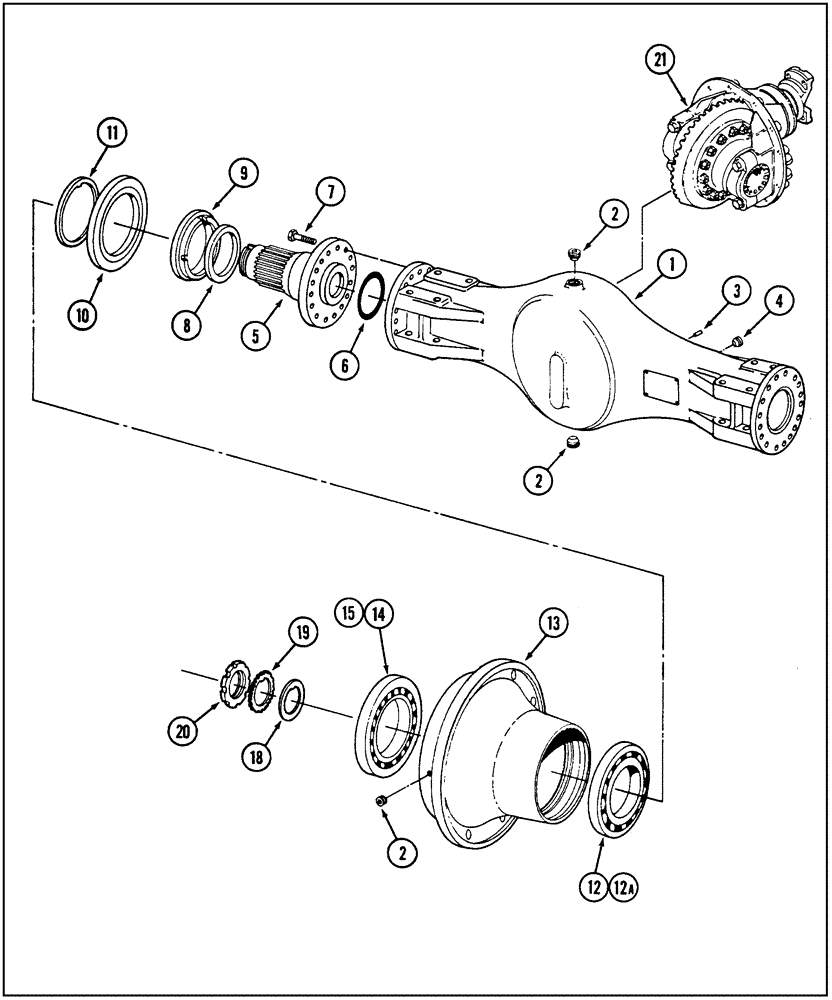

Запчасти Case IH 9250 (6-105A) - RIGID AXLE, HOUSING AND WHEEL HUB, 9250 TRACTOR, P.I.N. JEE0032778 AND AFTER (06) - POWER TRAIN

90-7844T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, without limited slip differential, k698.78, Includes: Ref. 1 - 21

1шт.

90-7842T91

4WD AXLE ASSY

AXLE ASSEMBLY - front, with limited slip differential, k698.95, Includes: Ref. 1 - 21

1шт.

90-7845T91

REAR AXLE

AXLE ASSEMBLY - rear, without limited slip differential, k698.68, Includes: Ref. 1 - 21

1шт.

90-7843T91

AXLE HOUSING

AXLE ASSEMBLY - rear, with limited slip differential, k698.85, Includes: Ref. 1 - 21

1шт.

1

90-4483T1

HOUSING

- axle, front or rear, without limited slip differential

1шт.

1

90-7176T1

HOUSING

- axle, front or rear, with limited slip differential

1шт.

2

90-4484T1

PLUG

- magnetic, M24 x 1.5 mm

4шт.

3

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

4

90-2523T1

PLUG

- special, level

1шт.

5

90-4481T1

LARGE PIN

SPINDLE - axle, right-hand or left-hand

2шт.

6

16-1505

O-RING,136mm ID x 15mm Width

- seal, 135 x 5 mm

2шт.

7

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex, special

32шт.

8

90-5989T2

SEALING RING,158mm ID x 172.5mm OD x 9mm Thk

SEAL - spindle

2шт.

9

90-7086T1

RING

- bearing adjusting

2шт.

10

90-5988T1

SEALING RING

- hub, Includes: wear sleeve

2шт.

11

90-4477T2

DISC

WASHER - thrust

2шт.

12

90-7759T1

TAPERED BEARING,230mm OD x 31mm W

CUP - tapered roller bearing

2шт.

12a

90-7760T1

TAPERED BEARING,170mm ID x 38mm W

BEARING - tapered roller

2шт.

13

90-7847T1

HUB

- wheel, left-hand or right-hand

2шт.

14

90-7762T1

TAPERED BEARING

- tapered roller

2шт.

15

90-7761T1

BEARING CUP

CUP - tapered roller bearing

2шт.

18

90-4497T1

DISC

RING - spacer

2шт.

19

90-4496T1

LOCK WASHER

- lock, adjusting nut

2шт.

20

90-4495T1

NUT

- slotted, adjusting

2шт.

21

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - without limited slip differential, parts list Figures 6-099A and 6-099C

1шт.

21

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - with limited slip differential, parts list Figures 6-103A and 6-103C

1шт.
