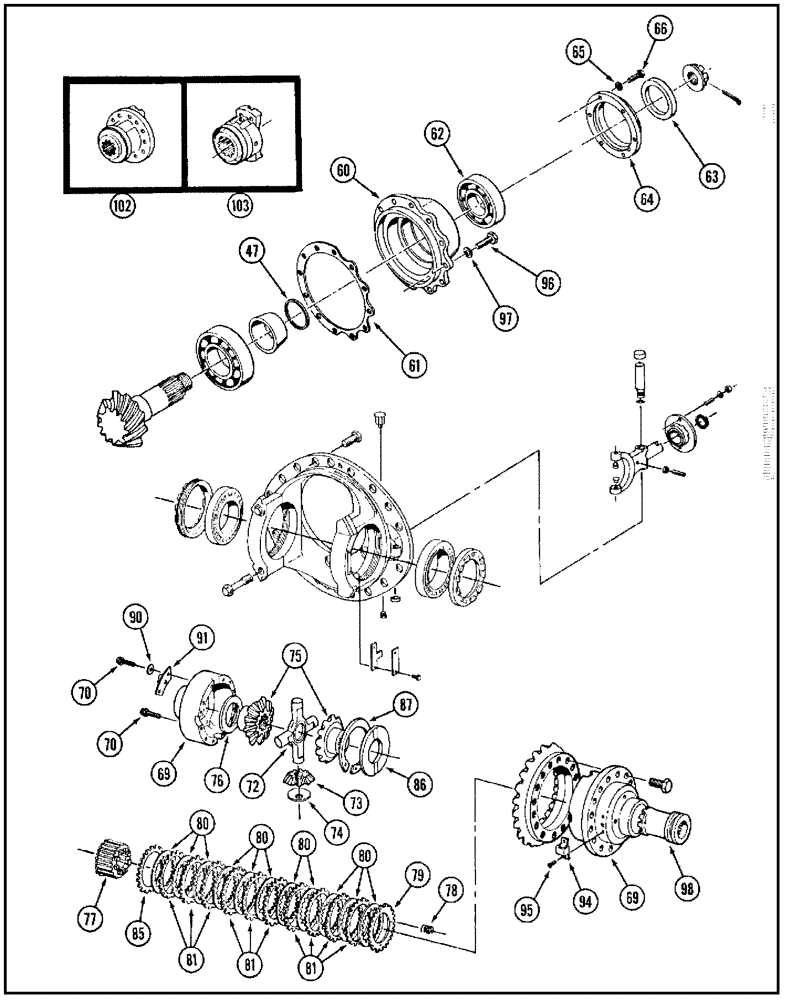

Запчасти Case IH 9250 (6-102) - DIFFERENTIAL, WITH LIMITED SLIP DIFFERENTIAL, ALL STEERABLE AXLES (CONTD) (06) - POWER TRAIN

90-7180T91

DIFFERENTIAL

ASSEMBLY - front, use with k598.95 axle, Includes: Ref. 47 - 98 and 1 - 47 on Figure 6-100

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear, use with k598.85 axle, Includes: Ref. 47 - 98 and 1 - 47 on Figure 6-100

1шт.

47

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

47

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

47

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

60

90-4515T1

HOUSING

- bearing

1шт.

61

16-1566

SHIM

- housing, 1.00 mm thick

1шт.

61

16-1567

SHIM

- housing, 0.50 mm thick

1шт.

61

16-1568

SHIM

- housing, 0.30 mm thick

1шт.

61

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

61

16-1569

SHIM

- housing, 0.20 mm thick

1шт.

62

16-1582

TAPERED BEARING

BEARING - tapered roller

1шт.

63

90-2509T2

SEALING RING,85mm ID x 110.35mm OD x 12mm Thk

SEAL - oil

1шт.

64

90-4517T1

COVER

- seal retainer

1шт.

65

16-1586

SPRING WASHER

WASHER - lock, 8 mm

6шт.

66

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

6шт.

90-7155T91

DIFFERENTIAL

ASSEMBLY - axle, front and rear, Includes: Ref. 69 - 87

1шт.

69

90-7153T91

DIFFERENTIAL

HOUSING ASSEMBLY - differential, Includes: both halves

1шт.

70

90-7154T1

SCREW

BOLT - hex flange, special

12шт.

72

90-7159T1

DIFF. SPIDER

SPIDER - gear

1шт.

73

90-7160T1

PINION

GEAR - pinion

4шт.

74

90-7161T1

WASHER

- thrust, pinion gear

4шт.

75

16-1559

PINION

GEAR - pinion, axle drive

2шт.

76

90-7162T1

WASHER

- pinion gear, 4.6 mm thick

1шт.

77

90-7165T1

HUB

- splined

1шт.

78

90-7166T1

SPRING

- compression

16шт.

79

90-7167T1

THRUST WASHER

PLATE - thrust

1шт.

80

90-7168T1

DISC

PLATE - clutch, with inner teeth

11шт.

81

90-7169T1

DISC

PLATE - clutch, with outer teeth

10шт.

85

90-7170T1

THRUST WASHER

PLATE - thrust

1шт.

86

90-7171T1

WASHER

- thrust

1шт.

87

90-7172T1

RING, SNAP

RING - snap

1шт.

90

90-7156T1

WASHER

- flat, special

4шт.

91

90-7158T1

LARGE PLATE

BAFFLE - oil, front axle

2шт.

91

90-7157T1

LARGE PLATE

BAFFLE - oil, rear axle

2шт.

94

90-7173T1

LARGE PLATE

PLATE - oil bath, front or rear axle

2шт.

95

90-7174T1

SCREW,CSK, M6 x 12mm, Cl 5.6

- flat head, 6 x 12 mm

4шт.

96

16-1591

BOLT,Hex, M14 x 1.5 x 45mm, Gr 10.9, Full Thd

BOLT - hex, 14 mm - 1.5 x 46 mm, grade 10.9

12шт.

97

16-1592

LOCK WASHER

- lock, 15 mm

12шт.

98

90-7164T1

SLEEVE

- clutch

1шт.

102

90-7322T1

FORK

YOKE - flanged, 6C, use with front axle, 9240 Tractor

1шт.

102

90-6784T1

HUB

YOKE - flanged, 8C, use with front axle, 9250, 9250 RCS and 9260 Tractor

1шт.

103

90-7321T1

FORK

YOKE, 6C, use with rear axle, 9240 Tractor

1шт.

103

1-6858

YOKE

8C, use with rear axle, 9250, 9250 RCS and 9260 Tractor

1шт.
