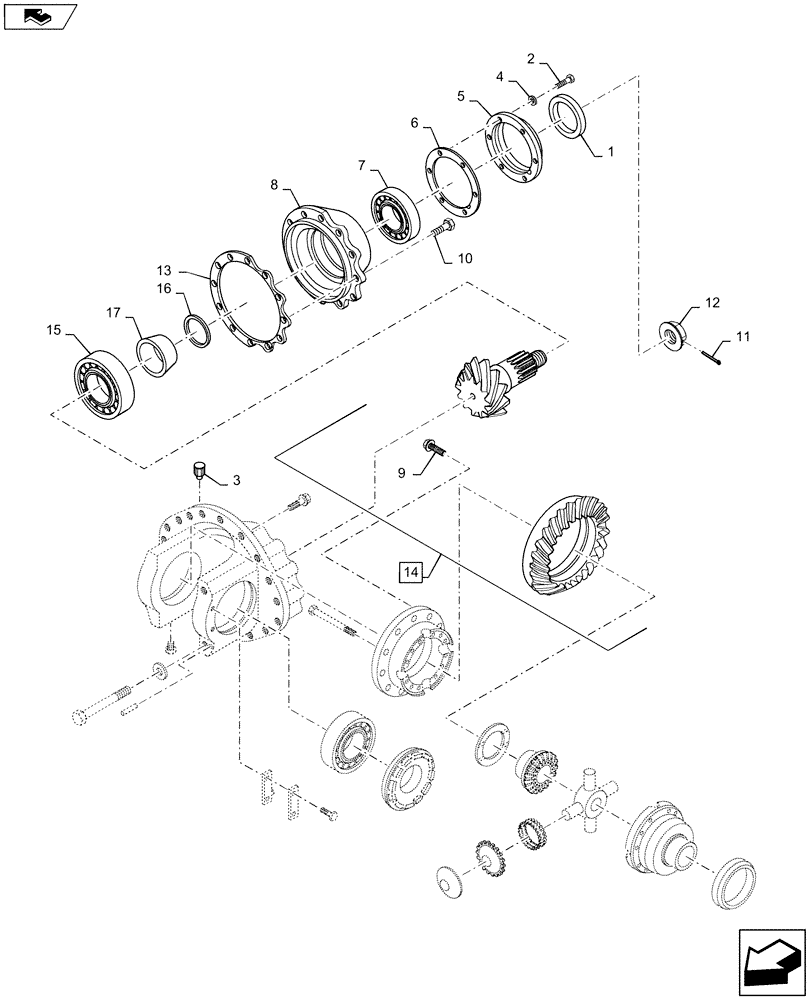

Запчасти Case IH 9250 (6-099A) - DIFFERENTIAL, WITHOUT LIMITED SLIP DIFFERENTIAL, RIGID PLANETARY AXLES, P.I.N. JEE0032778 AND AFTER (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7851T91
DIFFERENTIAL
ASSEMBLY - front, use with k698.78 axle, Incl 1 - 17 and 40 - 78 on Figure 6-099C
1шт.
90-7850T91
DIFFERENTIAL
ASSEMBLY - rear, use with k698.68 axle, Incl 1 - 17 and 40 - 78 on Figure 6-099C
1шт.
1
90-2509T2
SEALING RING,85mm ID x 110.35mm OD x 12mm Thk
SEAL - oil
1шт.
2
614-8030
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
HH, CL 8.8, M8 x 1.25 x 30
6шт.
3
1-6693
BREATHER
differential
1шт.
4
16-1586
SPRING WASHER
8 mm
6шт.
5
90-4517T1
COVER
- seal retainer
1шт.
6
90-4516T1
GASKET
- cover
1шт.
7
16-1582
TAPERED BEARING
1шт.
8
90-4515T1
HOUSING
- bearing
1шт.
9
90-7858T1
FLANGE BOLT
BOLT - hex, flange, special
12шт.
10
16-1621T1
BOLT,Flng, M14 x 1.5 x 45mm, Cl 10.9
BOLT - hex flange, 14 - 1.5 x 45 mm, grade 10.9
12шт.
11
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
1шт.
12
16-1589
NUT
NUT - hex slotted, special
1шт.
13
16-1569
SHIM
- housing, 0.20 mm thick
1шт.
13
16-1570
SHIM
- housing, 0.25 mm thick
1шт.
13
16-1568
SHIM
- housing, 0.30 mm thick
1шт.
13
16-1567
SHIM
- housing, 0.50 mm thick
1шт.
13
16-1566
SHIM
- housing, 1.00 mm thick
1шт.
14
90-4502T91
GEAR, BEVEL
GEAR SET - ring and pinion, front axle, Incl 9, 11, 12
1шт.
14
90-4501T91
GEAR, BEVEL
GEAR SET - ring and pinion, rear axle, Incl 9, 11, 12
1шт.
15
16-1565
TAPERED BEARING
1шт.
16
90-4504T1
SPACER
- bearing, 4.00 mm thick
1шт.
16
90-4505T1
SPACER
- bearing, 4.04 mm thick
1шт.
16
90-4506T1
SPACER
- bearing, 4.08 mm thick
1шт.
16
90-4507T1
SPACER
- bearing, 4.12 mm thick
1шт.
16
90-4508T1
SPACER
- bearing, 4.16 mm thick
1шт.
16
90-4509T1
SPACER
- bearing, 4.20 mm thick
1шт.
16
90-4510T1
SPACER
- bearing, 4.40 mm thick
1шт.
16
90-4511T1
SPACER
- bearing, 4.60 mm thick
1шт.
16
90-4512T1
SPACER
- bearing, 4.80 mm thick
1шт.
16
90-4513T1
SPACER
- bearing, 5.00 mm thick
1шт.
16
90-4514T1
SPACER
- bearing, 5.20 mm thick
1шт.
17
90-4503T1
SPACER
SLEEVE - bearing spacer
1шт.
Выбрано товаров: 34
