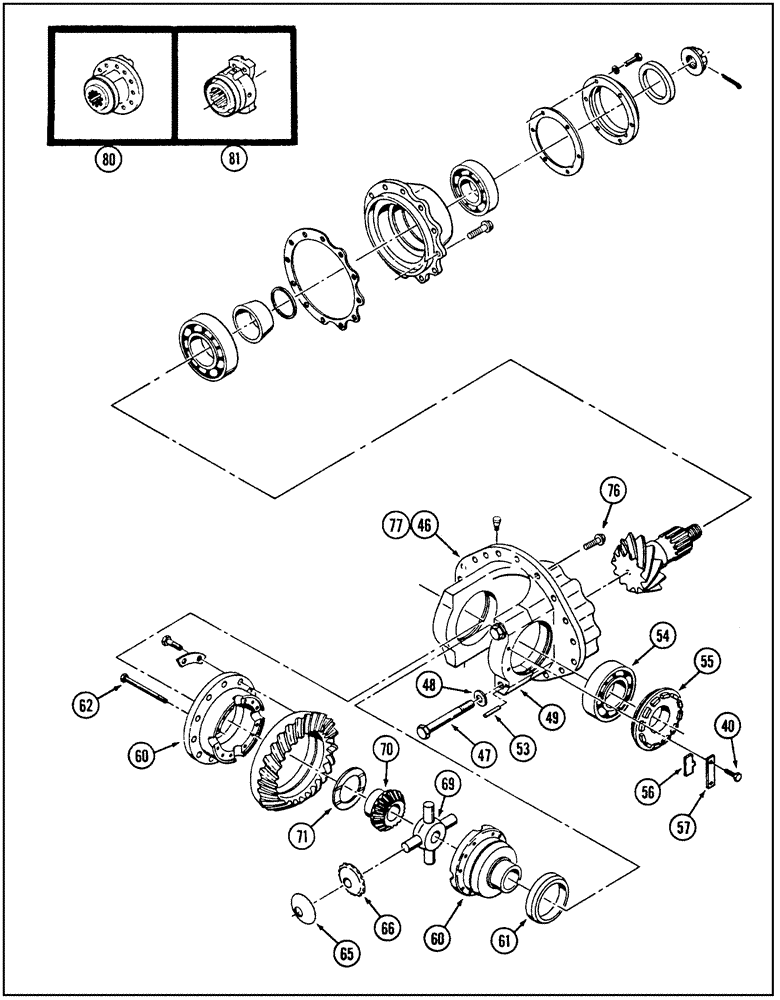

Запчасти Case IH 9250 (6-098) - DIFFERENTIAL, WITHOUT LIMITED SLIP DIFFERENTIAL, ALL STEERABLE AXLES (CONTD) (06) - POWER TRAIN

90-7233T91

DIFFERENTIAL

ASSEMBLY, front, use with k598.78 axle, Includes: Ref. 40 - 76 and 1 - 32 on Figure 6-096

1шт.

90-7232T91

DIFFERENTIAL

ASSEMBLY, rear, use with k598.68 axle, Includes: Ref. 40 - 76 and 1 - 32 on Figure 6-096

1шт.

40

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, grade 10.9

8шт.

46

90-7231T1

HOUSING

CARRIER ASSEMBLY - differential, Includes: Ref. 47 - 49

1шт.

47

16-1528

BOLT,Hex, M24 x 2 x 117mm, Cl 10.9

BOLT - hex, special

2шт.

48

90-4489T1

WASHER

- flat, special

2шт.

49

NSS

NOT SOLD SEPARAT

CARRIER - differential

1шт.

53

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

54

16-1523

BEARING ASSY,85mm ID x 130mm OD x 29mm W

BEARING - tapered roller

2шт.

55

90-7230T1

SLOTTED NUT

NUT - bearing retainer

2шт.

56

16-1526

LARGE PLATE

PLATE - locking tab, bearing nut, horizontal

1шт.

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut, 7.5 degrees from horizontal

1шт.

16-1525

LARGE PLATE

PLATE - locking tab, bearing nut, 15 degrees from horizontal

1шт.

57

16-1524

LARGE PLATE

PLATE - locking

2шт.

90-7225T91

DIFFERENTIAL

ASSEMBLY - axle, front, Includes: Ref. 60 - 71

1шт.

90-7224T91

DIFFERENTIAL

ASSEMBLY - axle, rear, no longer available, order 90-7852T91 differential assembly, See Figure 6-099C, Ref. 60 - 72, Includes: Ref. 60 - 71

1шт.

90-7227T91

CAGE ASSY.

HOUSING ASSEMBLY - differential, Includes: Ref. 60 - 62 and both halves, front axle

1шт.

90-7226T91

CAGE ASSY.

HOUSING ASSEMBLY - differential, Includes: Ref. 60 - 62 and both halves, rear axle

1шт.

60

NSS

NOT SOLD SEPARAT

HOUSING - differential, Includes: both halves

1шт.

61

90-7229T1

BAFFLE

- oil, front axle

1шт.

61

90-7228T1

BAFFLE

- oil, rear axle

1шт.

62

16-1543

SCREW,Hex, M12 x 1.5 x 90mm, Gr 10.9

BOLT - hex, 12 mm - 1.5 x 90 mm, grade 10.9

12шт.

65

90-7161T1

WASHER

- thrust, pinion gear

4шт.

66

90-7160T1

PINION

GEAR - pinion

4шт.

69

90-7159T1

DIFF. SPIDER

SPIDER - gear

1шт.

70

16-1559

PINION

GEAR - pinion, axle drive

2шт.

71

90-7162T1

WASHER

- pinion gear, 4.6 mm thick

2шт.

76

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, 12 x 40 mm, grade 10.9

18шт.

77

B17555

LOCTITE

SEALANT - Gasket Eliminator No. 515, 50 ml tube

1шт.

80

90-7322T1

FORK

YOKE - flanged, 6C, use with front axle, 9240 Tractor

1шт.

80

90-6784T1

HUB

YOKE - flanged, 8C, use with front axle, 9250, 9250 RCS and 9260 Tractor

1шт.

81

90-7321T1

FORK

YOKE, 6C, use with rear axle, 9240 Tractor

1шт.

81

1-6858

YOKE

8C, use with rear axle, 9250, 9250 RCS and 9260 Tractor

1шт.
