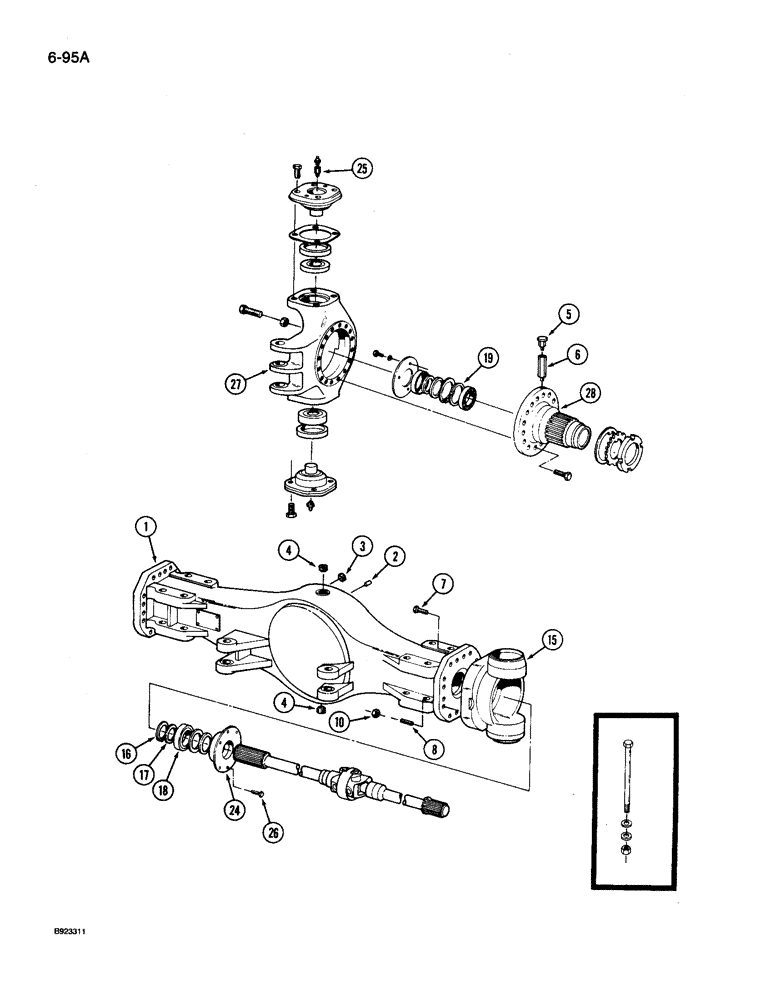

Запчасти Case IH 9250 (6-095A) - FRONT STEERABLE AXLE, AXLE HOUSING AND SPINDLE TRUNNION (06) - POWER TRAIN

90-7320T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without limited slip differential), Includes: Ref. 1 - 28 and 31 - 66 on Figure 6-095C

1шт.

90-7318T91

AXLE

ASSEMBLY - front (With limited slip differential), Includes: Ref. 1 - 28 and 31 - 66 on Figure 6-095C

1шт.

1

90-7386T1

HOUSING

- axle, front (Without limited slip differential), Includes: Ref. 1 - 28 and 31 - 66 on Figure 6-095C

1шт.

1

90-7385T1

4WD AXLE ASSY

HOUSING - axle, front (With limited slip differential), Includes: Ref. 1 - 28 and 31 - 66 on Figure 6-095C

1шт.

2

90-4485T1

DOWEL

PIN - dowel, 10 x 25 mm

1шт.

3

90-2523T1

PLUG

- hex socket, 24 mm - 1.5

1шт.

4

90-4484T1

PLUG

- magnetic, 24 mm - 1.5

2шт.

5

1-6693

BREATHER

VENT - breather

2шт.

6

90-7387T1

EXTENSION

- breather vent

2шт.

7

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex, 22 mm - 1.5 x 65 mm, class 10.9

24шт.

8

90-7388T1

STUD

- threaded, 22 mm - 1.5

5шт.

10

90-7390T1

NUT

- hex lock, 22 mm - 1.5

6шт.

15

90-7391T1

TRUNNION

- axle, left or right

2шт.

16

16-1596

RING, SNAP

RING - snap, external retainer

2шт.

17

90-7392T1

SPACER

- inner

2шт.

18

90-7393T1

BEARING, ROLLER, CYL,55mm ID x 100mm OD x 25mm W

BEARING - roller

2шт.

19

90-7394T1

SPACER

- outer

2шт.

24

90-7398T1

FLANGE

CAGE - bearing

2шт.

25

90-7483T1

FITTING

EXTENSION - grease fitting

2шт.

26

90-7399T1

BOLT,Hex, M8 x 20, Cl 10.9

BOLT - hex, 8 x 20 mm, class 10.9

8шт.

27

90-7400T1

HOUSING

- spindle, left or right

2шт.

28

90-7401T1

HUB

SPINDLE - wheel, left or right

2шт.

Uses bolt 90-7402T1.

1шт.
