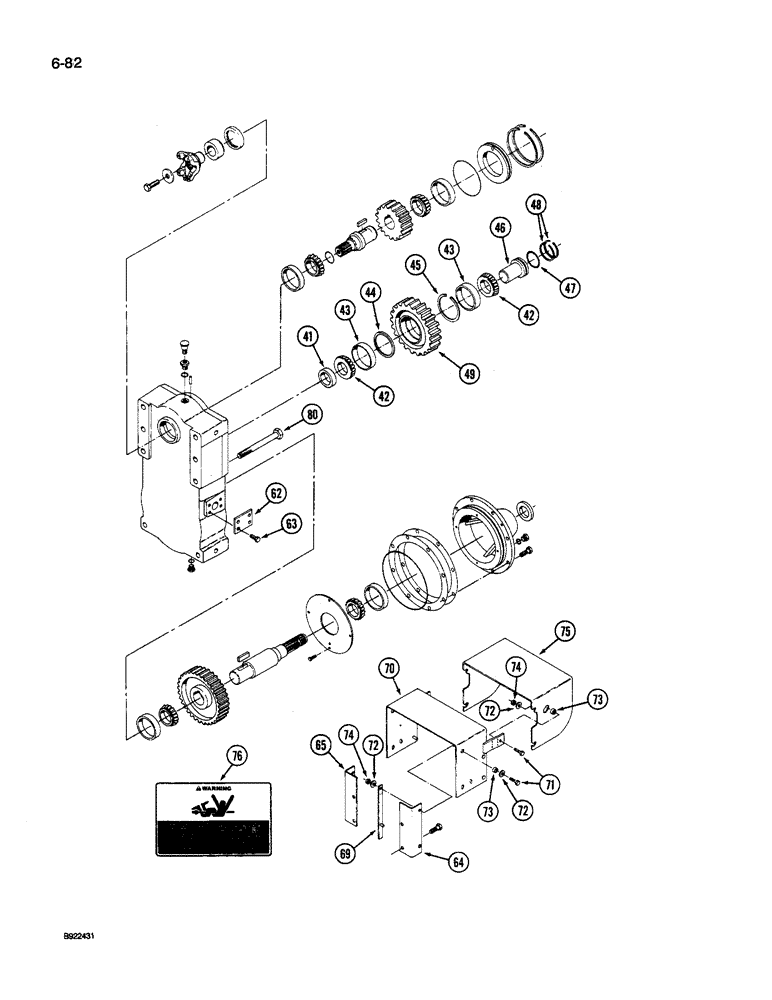

Запчасти Case IH 9250 (6-082) - POWER TAKEOFF TRANSFER CASE (CONTD) (06) - POWER TRAIN

REF

INSTRUCTION

CASE ASSEMBLY - transfer. PTO, (9240 Tractor), Includes: Ref. 41 - 65 and 1 - 38 on Figure 6-080

1шт.

REF

INSTRUCTION

CASE ASSEMBLY - transfer, PTO, (9250 and 9260 Tractor), Includes: Ref. 41 - 65 and 1 - 38 on Figure 6-080

1шт.

41

90-4425T2

BUSHING

- spacer, center shaft

1шт.

42

90-3580T1

BEARING, ROLLER,50.8mm ID x 24.61mm W

CONE - bearing

2шт.

43

90-3581T1

BEARING CUP,96.86mm OD x 19.45mm W

CUP - bearing

2шт.

44

90-3577T1

SPACER

- gear, center shaft

1шт.

45

19-6058

RING, SNAP

RING - snap

1шт.

46

90-4418T1

PIN

- center shaft

1шт.

47

90-4424T1

O-RING,2.359" ID x 2.637" OD x 0.139"

- sealing, center shaft

1шт.

48

90-5743T1

RING, SNAP

RING - snap, 0.093 inch thick

1шт.

48

90-5744T1

RING, SNAP

RING - snap, 0.089 inch thick

1шт.

48

90-5745T1

RING, SNAP

RING - snap, 0.085 inch thick

1шт.

48

90-5746T1

RING, SNAP

RING - snap, 0.081 inch thick

1шт.

48

90-5747T1

RING, SNAP

RING - snap, 0.077 inch thick

1шт.

48

90-5748T1

RING, SNAP

RING - snap, 0.073 inch thick

1шт.

48

90-5749T1

RING, SNAP

RING - snap, 0.069 inch thick

1шт.

48

90-5750T1

RING, SNAP

RING - snap, 0.065 inch thick

1шт.

49

90-6939T1

GEAR

- center (49 tooth) (9240 Tractor)

1шт.

49

90-4403T1

PINION

GEAR - center (49 tooth) (9250 and 9260 Tractor)

1шт.

62

90-6212T1

LARGE PLATE

PLATE - cover (9240 Tractor only)

1шт.

63

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

(9240 Tractor only) Hex, 7/16"-14 x 1", G5, Full Thd

1шт.

64

90-5870T1

ANGLE BAR

MOUNT - shield, left

1шт.

65

90-5869T1

ANGLE BAR

MOUNT - shield, right

1шт.

69

90-5866T1

RETAINER

- bracket

2шт.

70

90-5868T1

SUPPORT

BRACKET - shield mount

1шт.

71

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

72

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

73

19-6013

SPACER

- pivot

4шт.

74

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

4шт.

75

90-3484T1

SHIELD

- PTO

1шт.

76

2-7125T1

DECAL

- PTO safety

1шт.

80

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch (Without three point hitch)

6шт.

80

413-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch, Grade 6 (Top holes) (With three point hitch system)

6шт.

80

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch (Bottom holes) (With three point hitch system)

2шт.
