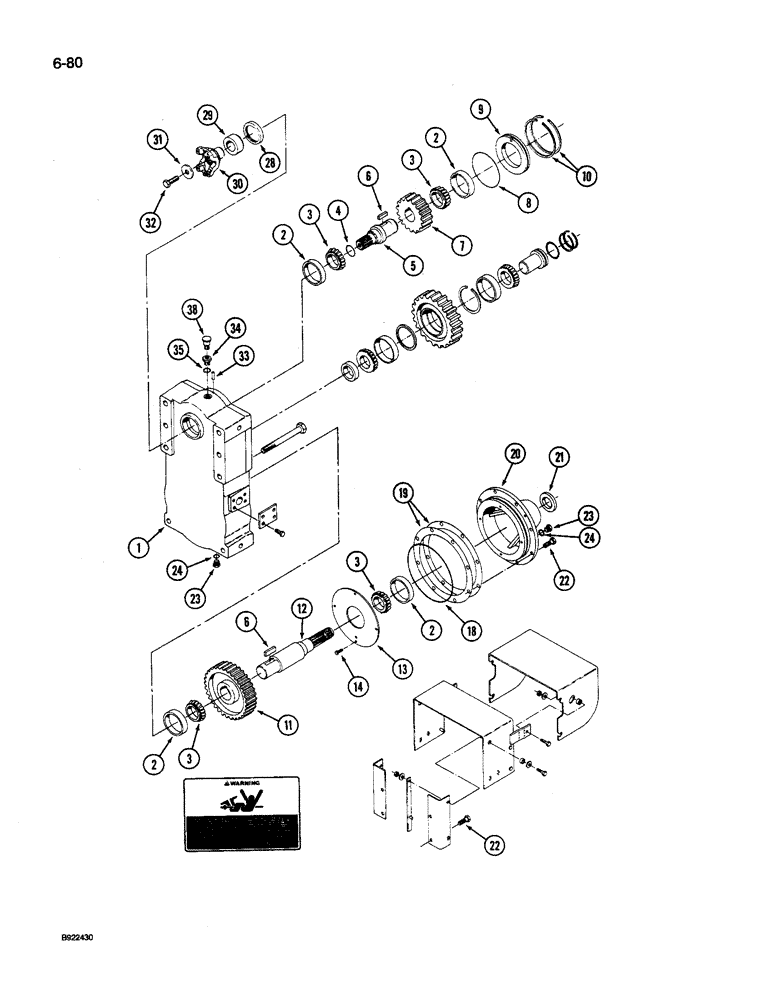

Запчасти Case IH 9250 (6-080) - POWER TAKEOFF TRANSFER CASE (06) - POWER TRAIN

90-6951T91

BOX

CASE ASSEMBLY - transfer, PTO (9240 Tractor), Includes: Ref. 1 - 38 and 41 - 65 on Figure 6-082

1шт.

90-7039T91

TRANSFER BOX

CASE ASSEMBLY - transfer, PTO (9250 and 9260 Tractor), Includes: Ref. 1 - 38 and 41 - 65 on Figure 6-082

1шт.

1

90-4417T2

HOUSING

- transfer case, PTO

1шт.

2

105497H

BEARING CUP,96.85mm OD x 15.77mm W

CUP - inner bearing pinion shaft, 3-13/16 inch (Replaces 90-1996T1)

4шт.

3

L33289

ROLLER BEARING,57.1565mm ID x 21.857mm Thk

CONE - bearing, 2-1/4 inch ID

4шт.

4

31-1744

O-RING

O-RING - sealing, yoke, 1-3/4 x 1/8 inch

1шт.

5

90-1991T1

SHAFT

- input

1шт.

6

90-1173T1

BUCKET TOOTH KEY

KEY - shaft

2шт.

7

90-6940T1

GEAR

- input (32 Tooth) (9240 Tractor)

1шт.

7

90-4404T1

PINION

GEAR - input (32 Tooth) (9250 and 9260 Tractor)

1шт.

8

90-4423T1

O-RING,5.609" ID x 5.887" OD x 0.139"

- end cap, 5-5/8 ID x 5-7/8 OD inch

1шт.

9

90-4422T1

CAP

- end, input shaft

1шт.

10

90-5755T1

RING, SNAP

RING - snap, 0.105 inch thick

1шт.

10

90-5754T1

RING, SNAP

RING - snap, 0.110 inch thick

1шт.

10

90-5753T1

RING, SNAP

RING - snap, 0.115 inch thick

1шт.

10

90-5752T1

RING, SNAP

RING - snap, 0.120 inch thick

1шт.

10

90-5751T1

RING, SNAP

RING - snap, 0.125 inch thick

1шт.

11

90-6938T1

GEAR

- output (54 Tooth) (9240 Tractor)

1шт.

11

90-4402T1

PINION

GEAR - output (54 Tooth) (9250 and 9260 Tractor)

1шт.

12

90-4401T1

SHAFT

- output

1шт.

13

90-4409T2

DEFLECTOR

BAFFLE - oil

1шт.

14

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

18

1-2270

O-RING,9.234" ID x 9.512" OD x 0.139"

O-RING - end cap, 9-1/4 x 9-1/2 inch

1шт.

19

90-4410T1

SHIM

- end cap, 0.005 inch thick

1шт.

19

90-4411T1

SHIM

- end cap, 0.007 inch thick

1шт.

19

90-4412T1

SHIM

- end cap, 0.020 inch thick

1шт.

20

90-4420T2

CAP

- end, PTO output

1шт.

21

90-1995T1

SEAL

SEAL - oil, output shaft

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

23

9410359

PLUG

- hex, 3/4-16 inch o-ring boss (Replaces 31-336), Includes: Ref. 24

2шт.

24

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

28

90-1994T1

SEAL

- oil, input shaft

1шт.

29

90-6080T1

SPACER

- yoke

1шт.

30

90-6639T1

LINKAGE YOKE

YOKE - input, PTO (9240 Tractor)

1шт.

30

90-7007T1

YOKE

- input, PTO (9250 and 9260 Tractor)

1шт.

31

19-6252

WASHER

- flat (9240 Tractor)

1шт.

31

19-5776

WASHER

- flat (9250 and 9260 Tractor)

1шт.

32

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

1шт.

33

19967R1

DOWEL,1/4" x 1 1/4"

PIN - dowel, 1/4 x 1-1/4 inch (Replaces 19-6194)

1шт.

34

218-5093

ADAPTER,#8 MALE ORB (ORING) TO # 6 FEMALE NPT (PIPE)

ADAPTER - 3/4-16 male x 3/8 inch female PT (9240 Tractor only) (Replaces 31-1547), Includes: Ref. 35

1шт.

35

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

38

D57822

BREATHER

VENT - breather (9240 only)

1шт.
