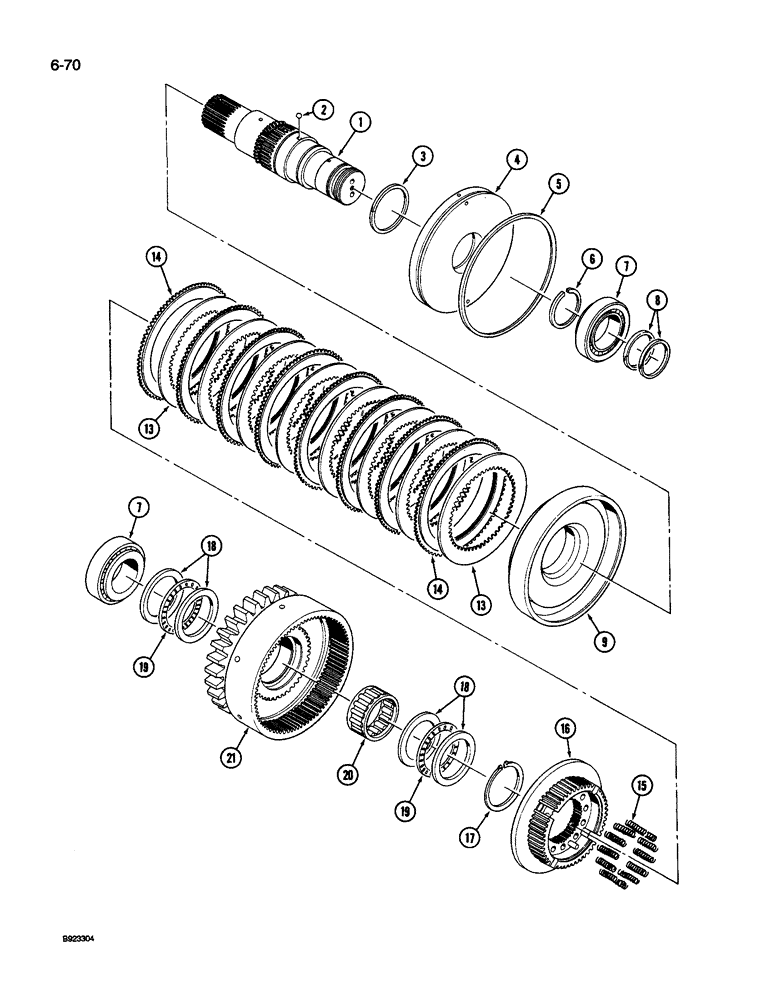

Запчасти Case IH 9250 (6-070) - POWER TAKEOFF, CLUTCH PACK (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7046T93
CLUTCH
PTO ASSEMBLY - hydraulic, 9240 Tractor, complete parts list on Figures 6-066 through 6-072, Includes: Ref. 1 - 21
1шт.
90-7045T93
REAR PTO ASSY
PTO ASSEMBLY - hydraulic, 9250 and 9260 Tractor, complete parts list on Figures 6-066 through 6-072, Includes: Ref. 1 - 21
1шт.
S8590S00F
CLUTCH PLATE
CLUTCH ASSEMBLY - PTO (9240 Tractor), Includes: Ref. 1 - 21
1шт.
S8590S00A
CLUTCH HOUSING
CLUTCH ASSEMBLY - PTO (9250 and 9260 Tractor), Includes: Ref. 1 - 21
1шт.
1
S8610S00F
SHAFT
- input, PTO (9240 Tractor)
1шт.
1
S8610S00A
SHAFT
- input, PTO (9250 and 9260 Tractor), order (2) S2220S00F washers and (1) S8610S01A shaft
1шт.
2
SM3272036
BALL
- steel
1шт.
3
S2610S00F
RING
- sealing
1шт.
Part of PTO overhaul kit P/N S9870S00F.
1шт.
4
S9190S00F
LARGE PLATE
PLATE - reaction
1шт.
5
S2630S00F
RING
- sealing
1шт.
Part of PTO overhaul kit P/N S9870S00F.
1шт.
6
S2240S00F
RING, SNAP
RING - retaining
1шт.
7
S8730S00F
TAPERED BEARING,55mm ID x 90mm OD x 23mm W
BEARING - roller
2шт.
8
S3070S00F
RING
- sealing
2шт.
Part of PTO overhaul kit P/N S9870S00F.
1шт.
9
33-1527T1
PISTON
- clutch (9240 Tractor)
1шт.
9
33-1526T1
PISTON
- clutch (9250 and 9260 Tractor)
1шт.
13
S2090S00F
CLUTCH DISC,2.1mm Thk
PLATE - flat steel, 2.1 mm thick (9240 Tractor)
5шт.
13
S2090S00F
CLUTCH DISC,2.1mm Thk
PLATE - flat steel, 2.1 mm thick (9250 and 9260 Tractor)
8шт.
14
33-1518T1
NOTCHED DISK
PLATE - faced
8шт.
15
S8690S00F
SPRING
- compression
12шт.
16
S2850S00F
HUB
- clutch (9240 Tractor)
1шт.
16
S9850S00A
HUB
- clutch (9250 and 9260 Tractor)
1шт.
17
S2100S00F
RING, SNAP
RING - snap
1шт.
18
H144527
WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk
- thrust, bearing
4шт.
20
S2030S00F
BEARING, ROLLER
BEARING - roller
1шт.
21
S8700S00F
GEAR
- drive (9240 Tractor)
1шт.
21
S8700S00A
PINION
GEAR - drive (9250 and 9260 Tractor)
1шт.
S9870S00F
KIT
- overhaul, PTO, Includes: Ref. 3, 5 and 8
1шт.
Выбрано товаров: 31
