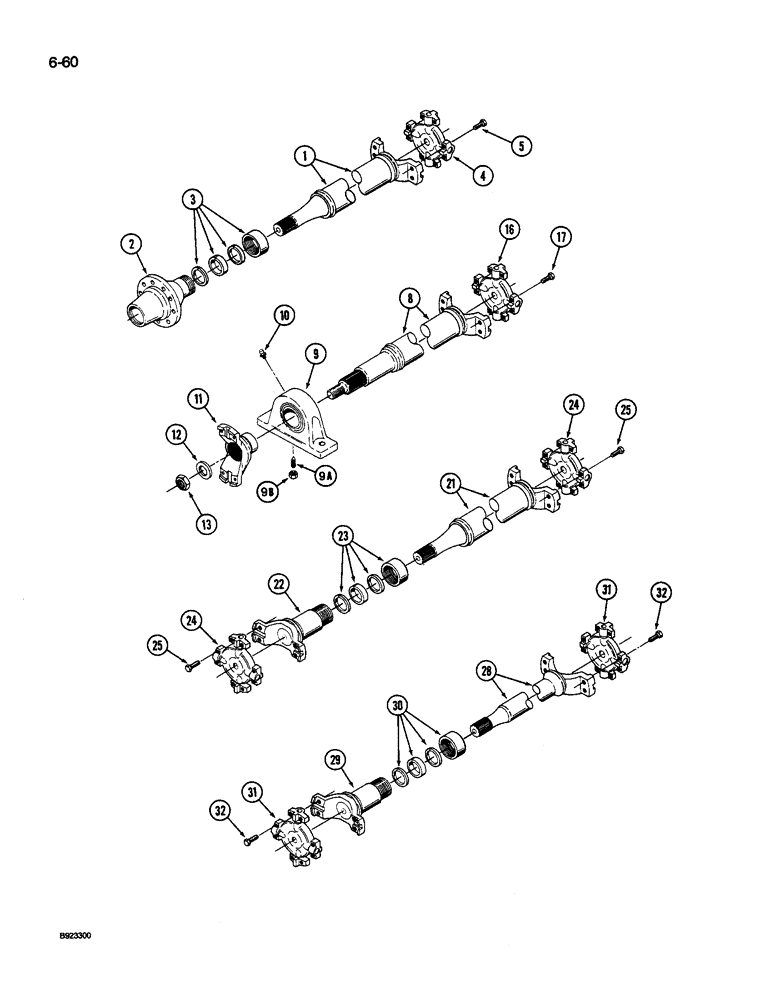

Запчасти Case IH 9250 (6-060) - DRIVE SHAFT, ENGINE TO TRANSMISSION, 9250 TRACTOR (06) - POWER TRAIN

90-6185T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, input, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

2-3843T1

RING, SET

SEAL - shaft retainer

1шт.

4

90-5882T2

U-JOINT SPIDER

SPIDER - shaft, 7C

1шт.

5

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

4шт.

90-7374T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, intermediate to rear axle, Includes: Ref. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - tube, intermediate to rear axle

1шт.

9

90-4657T1

BEARING CARRIER

- pillow block, shaft, intermediate to rear axle, Includes: Ref. 9A & 9B

1шт.

9a

84-23812

SET SCREW,Hex Soc, 3/8"-24 x 3/4"

SCREW - set, 3/8 NC x 3/4 inch, intermediate to rear axle

1шт.

9b

425-156

JAM NUT,Jam, 3/8"-24, G5

- hex, jam, 3/8 inch NC, Intermediate to rear axle

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Intermediate to rear axle 90º, 1/8" NPT x .84" lg

1шт.

11

90-4658T1

JAW

YOKE - shaft, intermediate to rear axle

1шт.

12

495-21138

WASHER,1 1/4"

- flat, 1-1/4 x 3 x 11/64 inch, intermediate to rear axle

1шт.

13

14-59T1

NUT

- hex lock (Replaces 14-59), intermediate to rear axle

1шт.

16

90-5882T2

U-JOINT SPIDER

SPIDER - shaft, intermediate to rear axle

1шт.

17

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Intermediate to rear axle Hex, 1/2"-20 x 2", G8

4шт.

90-6180T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 21 - 25

1шт.

21

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, rear axle

1шт.

22

NSS

NOT SOLD SEPARAT

SHAFT - tube, rear axle

1шт.

23

2-3843T1

RING, SET

SEAL - shaft retainer, rear axle

1шт.

24

90-5882T2

U-JOINT SPIDER

SPIDER - shaft (Replaces A182457), rear axle

2шт.

25

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Rear axle Hex, 1/2"-20 x 2", G8

8шт.

90-6181T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 28 - 32

1шт.

28

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, front axle

1шт.

29

NSS

NOT SOLD SEPARAT

SHAFT - tube, front axle

1шт.

30

2-3843T1

RING, SET

SEAL - shaft retainer, front axle

1шт.

31

90-5882T2

U-JOINT SPIDER

SPIDER - shaft (Replaces A182457), front axle

2шт.

32

328-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

Front axle Hex, 1/2"-20 x 2", G8

8шт.
