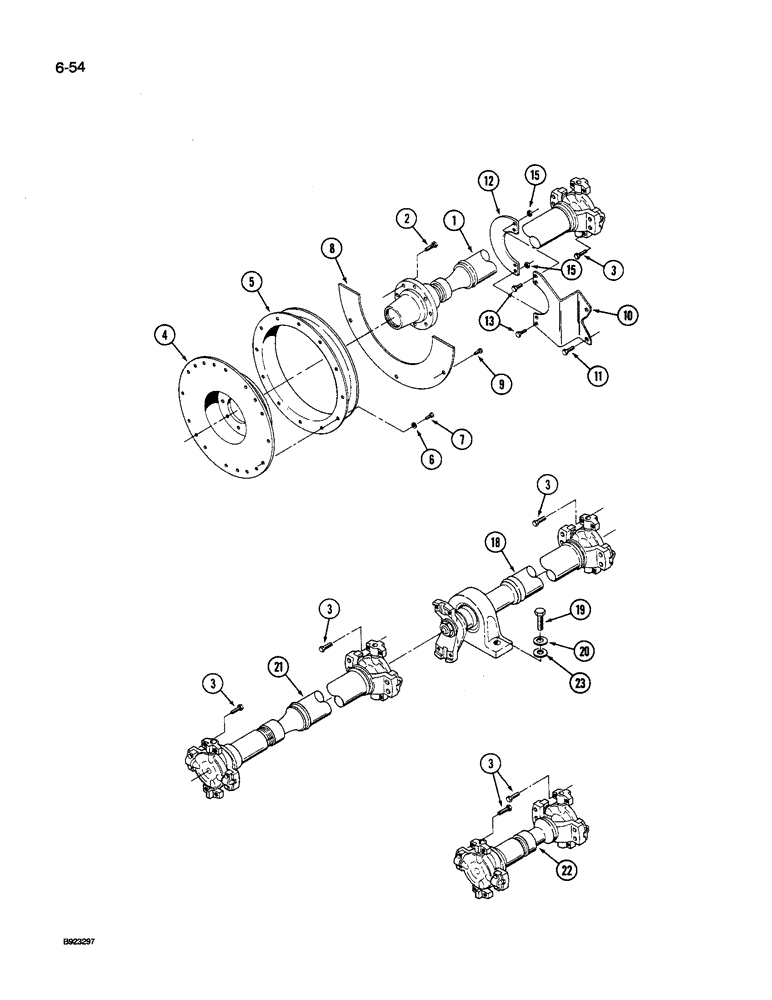

Запчасти Case IH 9250 (6-054) - DRIVE SHAFT MOUNTING, 9250 TRACTOR (06) - POWER TRAIN

1

90-6185T92

DRIVE SHAFT

ASSEMBLY - input, 7C, engine to transmission, See Figure 6-060

1шт.

2

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

3

428-832

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, grade 8

24шт.

4

90-1272T1

DAMPER

- vibration

1шт.

5

90-6190T1

LARGE PLATE

SLINGER - flywheel

1шт.

6

496-81023

WASHER

- flat, 13/32 x 3/4 x 7/32 inch, hardened

8шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

8

90-6188T1

COVER

- flywheel housing

2шт.

9

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

6шт.

10

90-6657T2

SUPPORT

BRACKET - drive shaft guard

1шт.

11

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

12

50-2852T1

LARGE PLATE

PLATE - drive shaft shield

1шт.

13

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

4шт.

15

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

18

90-7374T91

DRIVE SHAFT

ASSEMBLY - rear axle, intermediate, See Figure 6-060

1шт.

19

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

2шт.

20

496-81022

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch, hardened

2шт.

21

90-6180T92

DRIVE SHAFT

ASSEMBLY - rear axle, See Figure 6-060

1шт.

22

90-6181T92

DRIVE SHAFT

ASSEMBLY - front axle, See Figure 6-060

1шт.

23

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.
