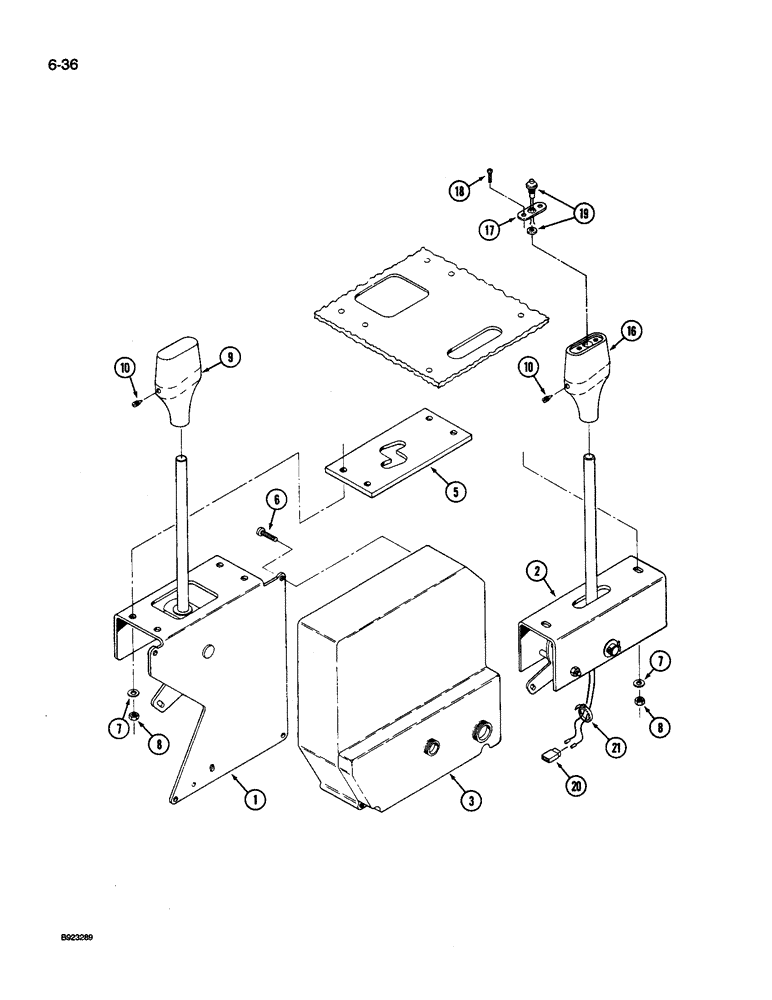

Запчасти Case IH 9250 (6-036) - TRANSMISSION SHIFT CONTROLS (06) - POWER TRAIN

1

60-6060T91

CONTROL

ASSEMBLY - mode, See Figure 6-038

1шт.

2

60-6483T92

CONTROL

ASSEMBLY - pulser, See Figure 6-040

1шт.

3

60-6478T2

CONTROL

LER - transmission, electronic (Prior to P.I.N. JCB0028400) (Replaces 60-6478T1)

1шт.

3

60-6798T1

BOX

CONTROLLER - transmission, electronic P.I.N. JCB0028400 and after)

1шт.

Included in kit 35-1918T91

1шт.

4

60-6801T1

CABLE

- solenoid adapter, used with 60-6798T1 controller, not shown, See Ref. 4 on Figure 4-020

1шт.

Included in kit 35-1918T91

1шт.

5

60-6140T1

LARGE PLATE

PLATE - wear, mode

1шт.

6

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head tapping, No. 10 NC x 3/4 inch

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

8

19-6082

JAM NUT

- hex lock, 1/4 inch NC

6шт.

9

60-6036T1

KNOB

KNOB - shift handle

1шт.

10

19-5798

SET SCREW

SCREW - set, No.8 NC

2шт.

16

60-6488T2

BUTTON

KNOB - shift handle

1шт.

17

60-6480T1

LARGE PLATE

PLATE - retainer, switch

1шт.

18

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - tapping

2шт.

19

60-6482T2

IGNITION SWITCH

SWITCH - skip-shift

1шт.

19

60-6478T2R

REMAN ELECT CONTROL

9240, 9260, Both (10/90-10/94), 9250 (9/90-5/95) All CASE IH STEIGER 4WD TRACTOR, LER transmission, electronic, Prior to P.I.N. JCB0028400

1шт.

19

60-6478T2C

CORE-ELECTRONIC CONT

Return Number

1шт.

20

60-6479T1

CONNECTION,ELECTRIC

CONNECTOR - wire

1шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

2шт.
