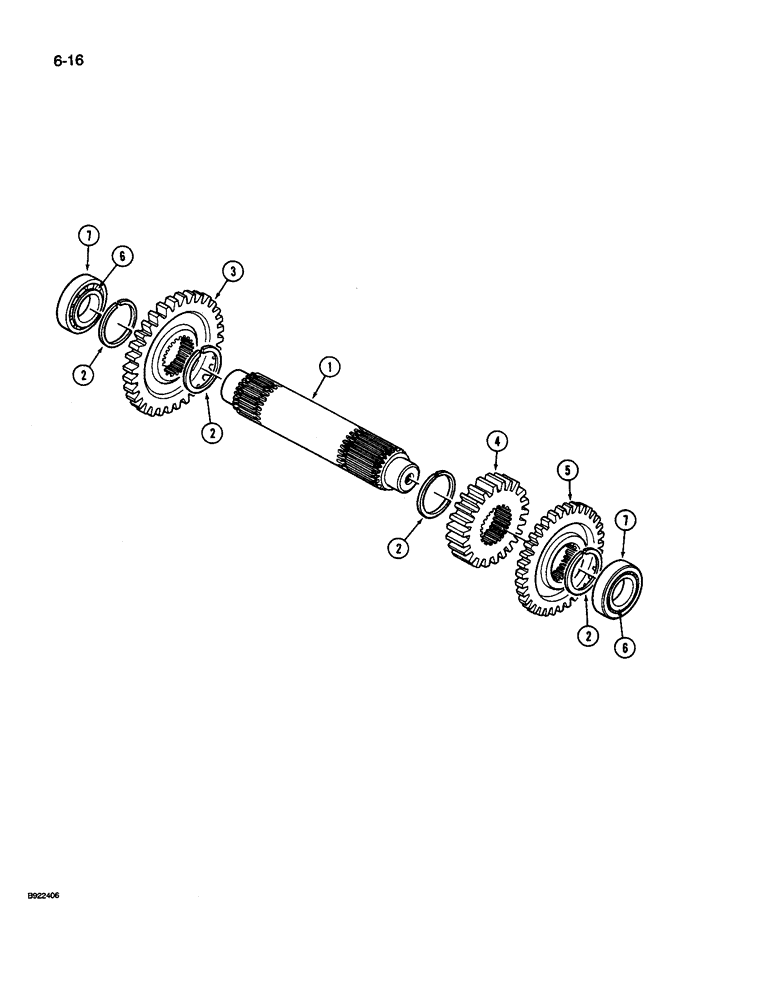

Запчасти Case IH 9250 (6-016) - TRANSMISSION, COMPOUND SHAFT (06) - POWER TRAIN

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 7

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEBLY - 9250 and 9260 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 7

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1436T1

SHAFT

SHAFT - compound

1шт.

2

33-1416T1

RING, SNAP

RING SNAP RING - retaining

4шт.

3

33-1415T1

PINION

GEAR - compound shaft (32 Tooth)

1шт.

4

33-1434T1

PINION

GEAR - drive (22 Tooth)

1шт.

5

33-1435T1

PINION

GEAR - driven (29 Tooth)

1шт.

6

529207R91

BEARING ASSY,54.99mm ID x 29mm W

BEARING - tapered roller

2шт.

7

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.
