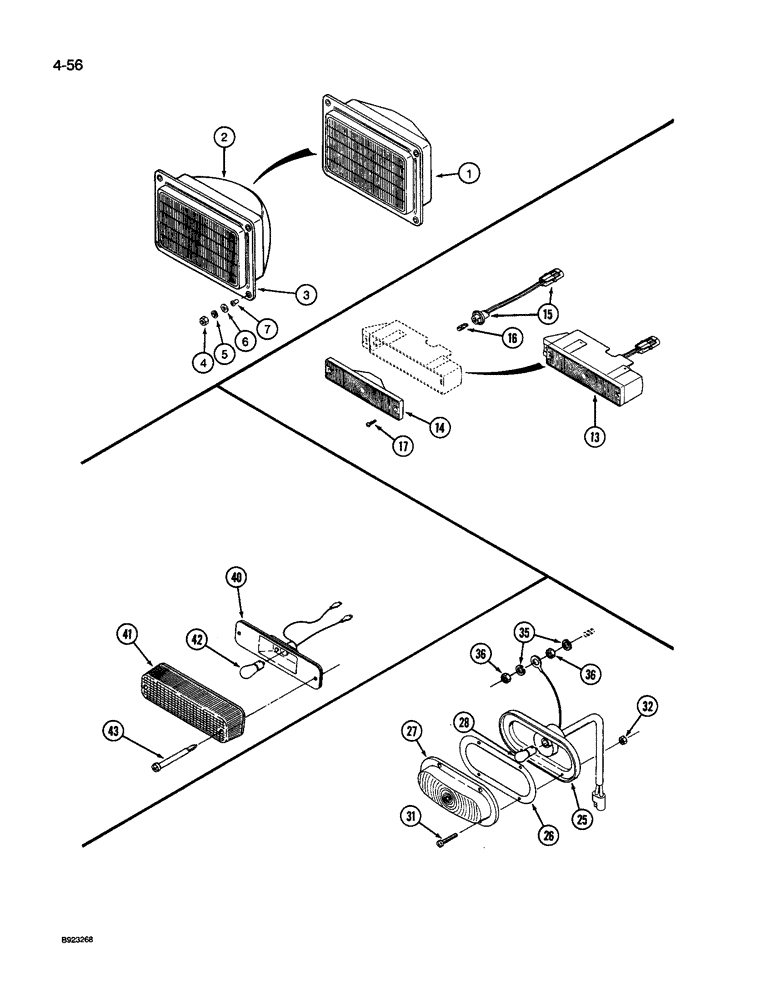

Запчасти Case IH 9240 (4-056) - LAMPS, HEAD LAMP (04) - ELECTRICAL SYSTEMS

1

20-2063T1

HEADLIGHT

LAMP - head (Prior to P.I.N. JCB0028400) (Sealed beam lamp is not serviced separately)

2шт.

60-6730T91

HEADLIGHT

LAMP ASSEMBLY - head (P.I.N. JCB0028400 and after), Includes: Ref. 2 & 3

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - head lamp

1шт.

3

60-6731T1

LAMP

- sealed beam

1шт.

Lamp only, does not include rubber seal. To obtain lamp, frame and seal order 60-6730T91.

1шт.

4

225-14110

NUT,#10-24

8шт.

5

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

6

495-31022

WASHER,#10

- flat, 9/32 x 5/8 x 1/16 inch

8шт.

7

60-6843T1

BUSHING

- headlamp mounting, brass (If used)

8шт.

13

A186202

LAMP

ASSEMBLY - tail, Includes: Ref. 14 - 16

2шт.

Check parts carefully before ordering.

1шт.

14

NSS

NOT SOLD SEPARAT

LENS AND HOUSING - tail lamp (Order A186202)

1шт.

15

A186201

WIRE HARNESS

SOCKET - bulb, tail lamp

1шт.

16

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, tail

1шт.

17

187-829

SELF-TAP SCREW,Slotted Pan Hd, #8 x 1"

SCREW - pan head, No. 8-18 x 1 inch, tail lamp

4шт.

20-1308T91

LAMP, TAIL

LAMP ASSEMBLY - tail, Includes: Ref. 25 - 28

2шт.

Check parts carefully before ordering.

1шт.

25

NSS

NOT SOLD SEPARAT

HOUSING - tail lamp

1шт.

26

20-1661T1

GASKET

- lens, tail lamp

1шт.

27

20-1660T1

LENS

- tail lamp

1шт.

28

T34857

BULB,C6, #1157, 12.8V

- lamp, No. 1157, tail

1шт.

31

153308

SCREW,Phil Pan Hd, #10 - 24 x 0.75", Gr 2

- pan head machine, No. 10-24 x 3/8 inch, tail lamp

8шт.

32

19-5571

SERRATED NUT

- hex Keps, No. 10-24, tail lamp

8шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tail lamp 1/4"

4шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, tail lamp

4шт.

22-665T1

LIGHT ASSY.

LAMP ASSEMBLY - warning, Includes: Ref. 40 - 42

4шт.

40

NSS

NOT SOLD SEPARAT

HOUSING - warning lamp

1шт.

41

60-6246T1

LENS

- warning lamp

1шт.

42

A41264

BULB,#1156, 12V

Lamp, Warning #1156, 12V

1шт.

43

19-1104

SCREW,Cross Pan Hd, #8 - 32 x 1 3/4", Shldrd

- pan head shoulder, No. 8-32 x 1-3/4 inch, warning lamp

8шт.
