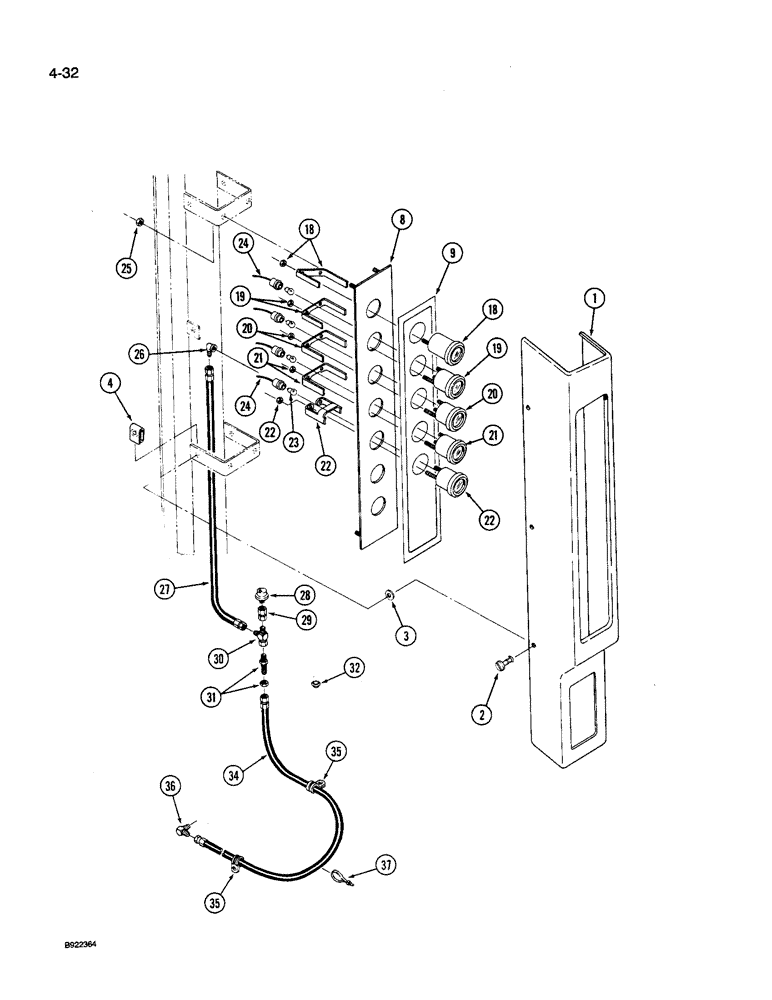

Запчасти Case IH 9240 (4-032) - GAUGE PANEL, 9240 TRACTOR (04) - ELECTRICAL SYSTEMS

1

60-5940T2

COVER

- panel, ROPS (Deluxe cab)

1шт.

1

60-6166T1

COVER

- panel, ROPS (ROPS cab)

1шт.

2

19-6136

STUD

- lock, quarter turn

6шт.

3

19-5668

WASHER

- flat, 1/4 inch

6шт.

4

A36042

CLIP

RECEPTACLE - lock stud, quarter turn

6шт.

60-6291T91

PANEL, INSTRUMENTS

PANEL ASSEMBLY - gauge (Order components), Includes: Ref. 8 - 24

1шт.

8

60-5756T1

PANEL

- gauge

1шт.

9

60-5939T2

DECAL

- gauge panel

1шт.

18

20-2018T2

HOURMETER

GAUGE - hourmeter

1шт.

19

20-2466T1

VOLTMETER

GAUGE - voltmeter

1шт.

20

20-2464T1

FUEL GAUGE

GAUGE - fuel level

1шт.

21

20-2465T1

GAUGE

- water temperature, engine

1шт.

22

60-6145T1

OIL PRESSURE GAUGE

GAUGE - oil pressure, engine

1шт.

23

23731R1

BULB,C2F, #1893, 14V

- lamp, No. 1893

5шт.

24

60-6292T4

HARNESS

- instrument panel lamping

1шт.

25

9411893

LOCK NUT,#10-32, GB

NUT - hex lock, No. 10 NF

4шт.

26

31-2740

ELBOW

- 90 degree brass, 1/8 PT x 7/16 inch thread

1шт.

27

31-2784

HOSE

- gauge, 42 inch

1шт.

28

60-6330T1

ASSEMBLY

SWITCH - oil pressure, engine

1шт.

29

31-2741

HYD CONNECTOR,37 Degree, Sw, 7/16"-20 x 1/8"-27 NPTF

ADAPTER - straight, 1/8 PT x 7/16 inch thread

1шт.

30

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- 7/16-20 inch flare branch x fl x adj straight thread

1шт.

31

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare

1шт.

32

64-146

PLUG

- button

1шт.

34

31-2155

HOSE

- engine oil pressure, 108 inch

1шт.

35

31-1776

MOUNTING CLIP

CLAMP - retaining

2шт.

36

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 thread x 1/8 inch PT

1шт.

37

50-2037T1

STRAP

- nylon

1шт.
