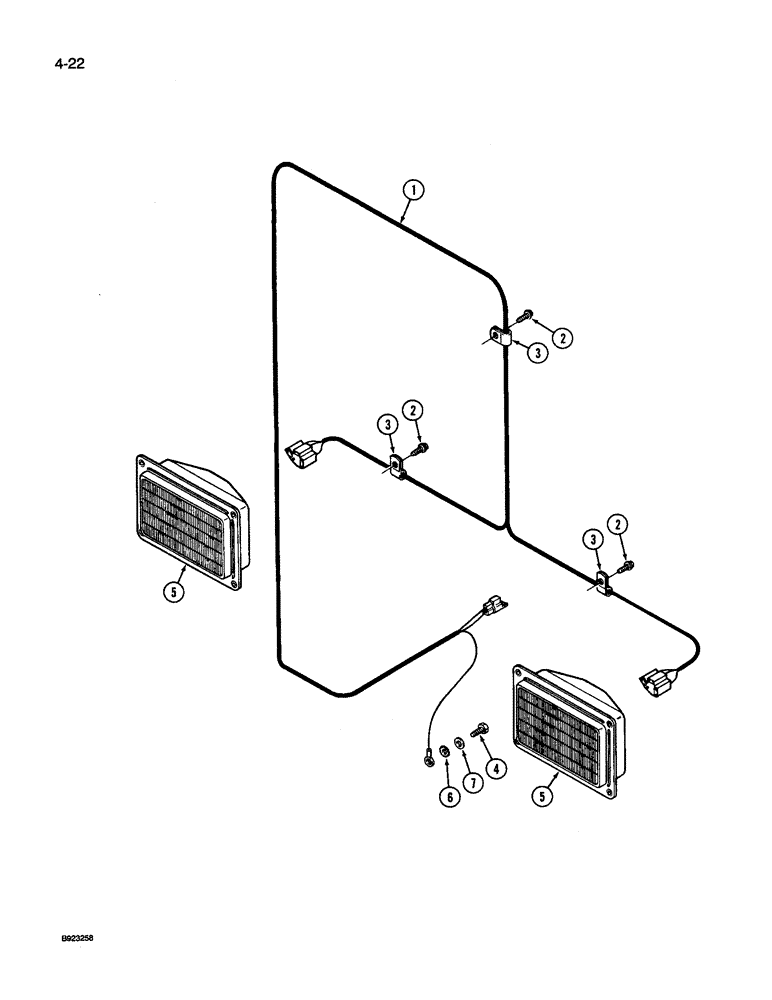

Запчасти Case IH 9240 (4-022) - FRONT HEADLAMP HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2022T1

HARNESS

- headlamp (Before S/N JCB0028400)

1шт.

1

60-6783T1

HARNESS

- headlamp (S/N JCB0028400 and After)

1шт.

2

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - hex flange tapping, 1/4 NC x 3/4 inch

3шт.

3

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

3шт.

4

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

1шт.

5

20-2063T1

HEADLIGHT

SEALED LAMP ASSEMBLY (Before S/N JCB0028400)

2шт.

6

493-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER - lock, 5/16 inch

1шт.

5

60-6730T91

HEADLIGHT

LAMP ASSEMBLY - head, See Figure 4-056 (S/N JCB0028400 and After)

2шт.

7

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

1шт.
