Запчасти Case IH 9240 (3-020) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (03) - FUEL SYSTEM

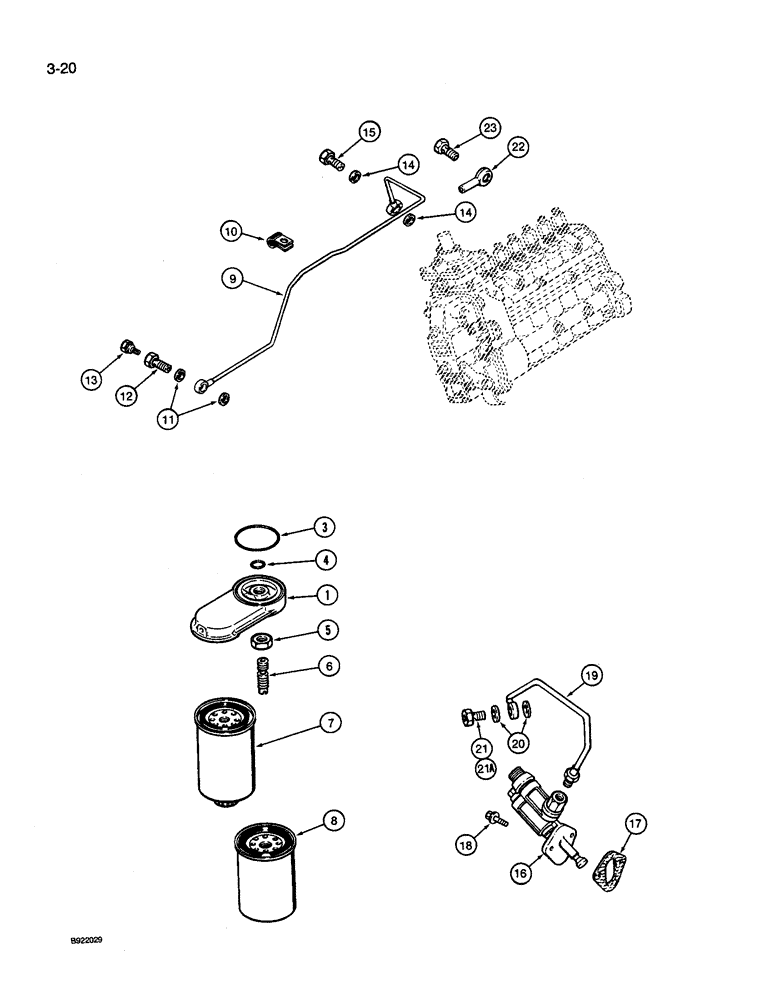

Схема запчастей Case IH 9240 - (3-020) - FUEL FILTER AND TRANSFER PUMP, 6TA-830 ENGINE (03) - FUEL SYSTEM
14
21
17
15
21a
11
12
8
7
18
22
19
4
6
16
14
3
13
9
5
1
23
10
20

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, filter head to cylinder head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel filter

1шт.

7

J903410

FILTER

- fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J912923

FUEL TUBE,8 mm OD x 509.8 mm L

TUBE - fuel supply, 9210 tractor only

1шт.

9

J912925

FUEL TUBE,8 mm OD x 656.2 mm L

TUBE - fuel supply, 9230 and 9240 tractor only

1шт.

10

J914711

CLIP

- tube retaining, P style, replaces A77436 clip

1шт.

11

J918191

PACKING RING

WASHER - sealing, special

2шт.

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, connector, Includes: Ref. 12 & 13

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - connector, banjo hex, special

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - hex, special, vent

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, 14 x 20 x 1 mm

2шт.

15

J907541

BANJO BOLT

BOLT - connector, banjo

1шт.

16

J917998

PUMP

- fuel transfer

1шт.

17

J914304

GASKET

- mounting, pump

1шт.

18

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm

2шт.

19

J906790

FUEL TUBE,8 mm OD x 306.3 mm L

TUBE - supply

1шт.

20

J918191

PACKING RING

WASHER - sealing, special

2шт.

21

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, , Prior to Engine S/N 44713107 M12 x 1.5 x 24

1шт.

21a

J916361

BANJO BOLT

BOLT - banjo connector, 8 mm threads, Engine Serial Number 44713107 and after

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

23

REF

INSTRUCTION

VALVE - bolt, overflow, See Ref. 6, Figure 3-022

1шт.

J926764

GASKET KIT

KIT - repair, fuel transfer pump, not shown (Replaces J920544), Includes: Ref. 24 - 28

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

25

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

3шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

Выбрано товаров: 31
