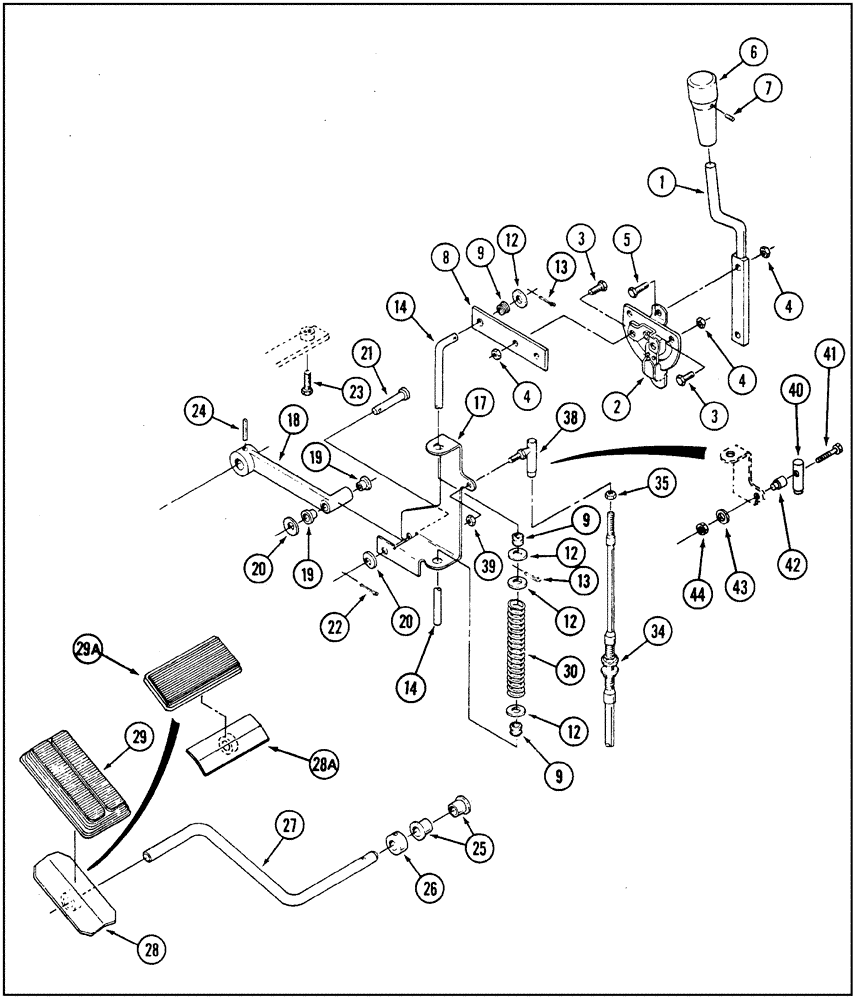

Запчасти Case IH 9240 (3-012) - THROTTLE AND DECELERATOR CONTROLS, CAB MODELS (03) - FUEL SYSTEM

1

60-4686T2

CONTROL LEVER

LEVER - throttle control

1шт.

2

60-3783T1

ACTUATOR

BELLCRANK - throttle control

1шт.

3

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

4шт.

4

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC, replaces 19-1081

6шт.

5

113-9

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

2шт.

6

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

7

19-5798

SET SCREW

SCREW - set, No. 8 NC

1шт.

8

60-3696T1

LINING

LEVER - bellcrank

1шт.

9

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

3шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

14

60-6278T1

ROD

- actuating

1шт.

17

60-6277T1

SUPPORT

BRACKET - rod and spring retaining

1шт.

18

60-6276T1

LEVER

- decelerator

1шт.

19

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

- flange, decelerator lever

2шт.

20

19-5995

SPRING WASHER

- spring, 5/16 inch

2шт.

21

19-5664

CLEVIS PIN,5/16" x 2"

PIN - clevis, 5/16 x 2 inch

1шт.

22

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

23

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

24

138-2067

PIN,3/16" x 1", Coiled

1шт.

25

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BUSHING - flange

2шт.

26

19-490

COLLAR

- locking

1шт.

27

60-4926T1

STEM

ROD - pedal, decelerator

1шт.

28

60-3688T1

PEDAL

- decelerator, prior to P.I.N. JEE0033501

1шт.

28a

60-7066T1

PEDAL

- decelerator, P.I.N. JEE0033501 and after

1шт.

29

24-13

PROTECTION STRIP

PAD - pedal, decelerator, prior to P.I.N. JEE0033501

1шт.

29a

1958503C1

PROTECTIVE COVER

PAD - pedal, decelerator, P.I.N. JEE0033501 and after

1шт.

30

60-3702T1

SPRING

- compression

1шт.

34

60-6425T1

CABLE,3048mm L

- throttle, Includes: Ref. 35

1шт.

35

225-14210

NUT,#10-32

1шт.

38

A75447

BALL JOINT

JOINT - ball, no longer used, replace with Ref. 40 - 44

1шт.

39

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF, used with A75447 ball joint only

1шт.

40

H433283

BALL JOINT

JOINT - ball, replaces A75447 ball joint

1шт.

41

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch, used with H433283 ball joint only

1шт.

42

90-7749T1

SPACER

used with H433283 ball joint only

1шт.

43

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 3/64 inch, used with H433283 ball joint only

1шт.

44

86625057

NUT,#10-24, GB

NUT, LOCK, , Used with H433283 ball joint only #10-24, GB

1шт.
