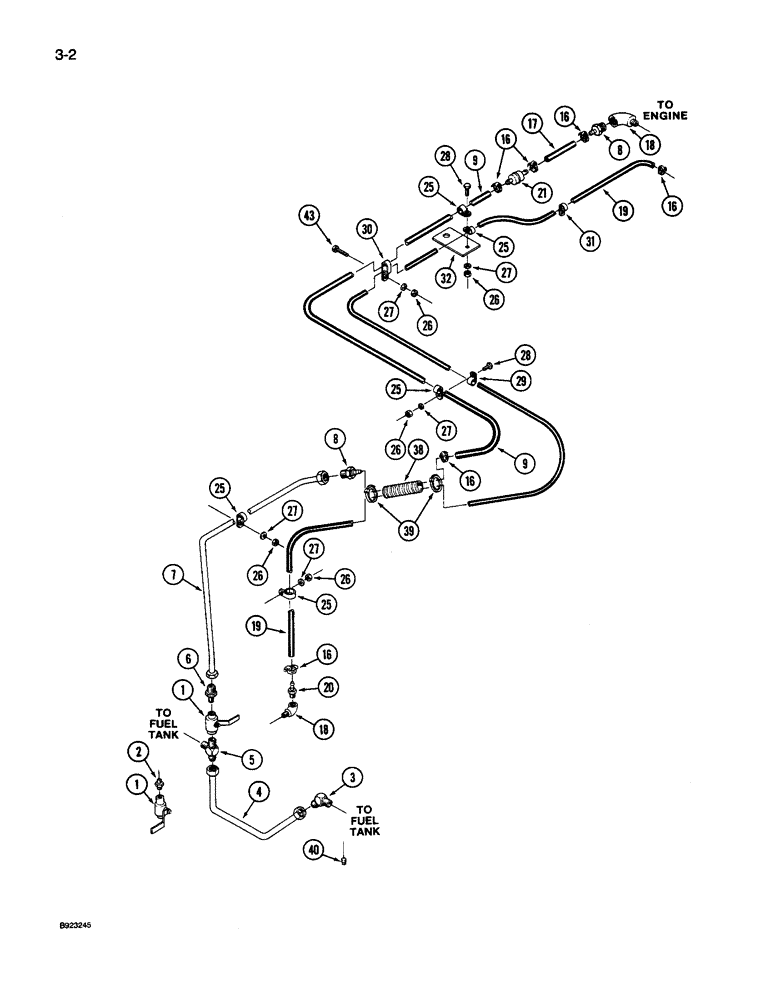

Запчасти Case IH 9240 (3-002) - FUEL LINES, PRIOR TO P.I.N. JCB0028400 (03) - FUEL SYSTEM

1

31-1267

SHUT-OFF VALVE

VALVE - shutoff

2шт.

2

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

CONNECTOR - straight, 1/2 inch PT

1шт.

3

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8 flare x 5/8 inch PT

1шт.

4

90-7200T1

FUEL TUBE,.625" OD

TUBE - fuel crossover

1шт.

5

31-494

TEE

- connector, 1/2 x 1/2 PT x 7/8 inch thread

1шт.

6

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

7

90-7201T1

FUEL TUBE,.625" OD

TUBE - fuel supply

1шт.

8

31-2466

FITTING

- straight barb, 7/8 thread x 3/8 inch barb end

2шт.

9

31-2289

HOSE,0.38" ID x 125.00"

Tube to Filter, Order 32-12, and Cut to Required Length 0.38" ID x 125.00"

1шт.

16

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - retaining (Replaces 32-59)

6шт.

17

31-2836

FUEL HOSE

HOSE - filter to engine, 5 inch (Order 32-12 and, Serial Range: cut-length)

1шт.

18

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

2шт.

19

126767

BOLT

HOSE - engine to tank, 180 inch (Order 31-2855 and cut to length) (Replaces 31-2914)

1шт.

20

220-503

ROD, CONNECTING

FITTING - straight barb, 1/4 PT x 5/16 inch barb end

1шт.

21

D139225

FILTER, FUEL

FILTER - fuel

1шт.

25

31-2458

HOSE

CLAMP - hose

5шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

28

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

29

31-1775

CLAMP

- hose

1шт.

30

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- hose

2шт.

31

22-632

CLIP

CLAMP - hose

1шт.

32

90-7332T1

BRACKET

- support, hose clamp

1шт.

38

50-2697T1

CONDUIT

GUARD - hose, 15 inch (Order 50-2695T1 and, Serial Range: cut-length)

1шт.

39

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

4шт.

40

31-35

PLUG

- square head pipe, 1/2 inch PT

1шт.

43

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

1шт.
