Запчасти Case IH 9240 (2-066) - CONNECTING RODS, 6TA-830 ENGINE (02) - ENGINE

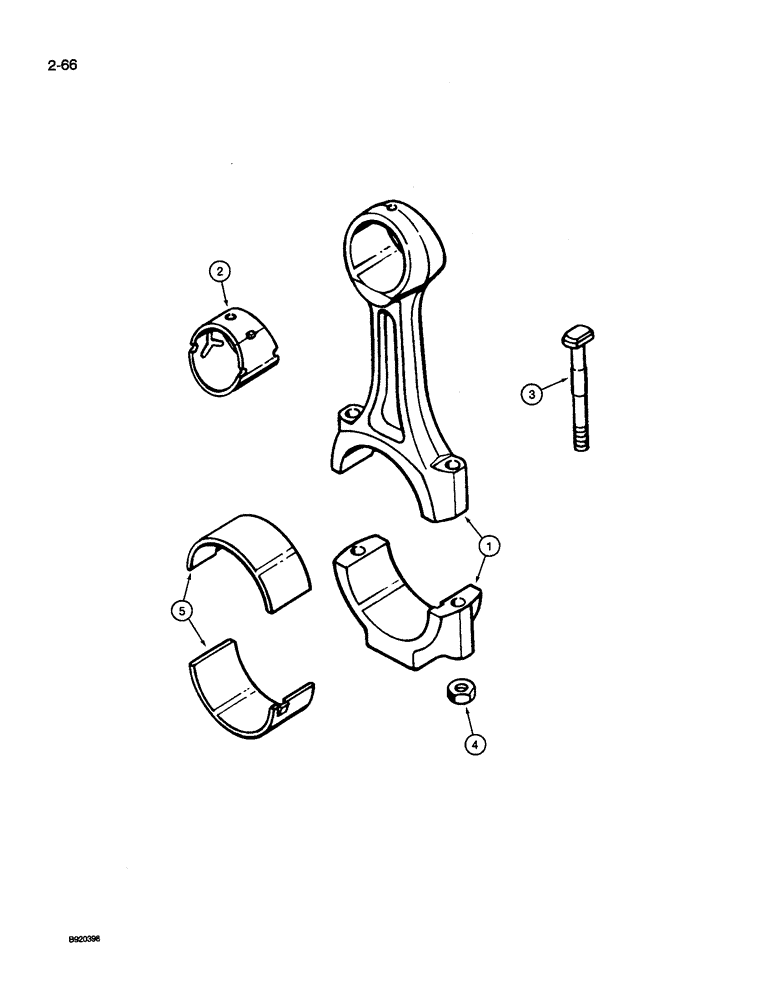

Схема запчастей Case IH 9240 - (2-066) - CONNECTING RODS, 6TA-830 ENGINE (02) - ENGINE
4
5
3
2
2

Артикул

Название

Примечание

Количество

JR901383

REMAN-CONNECTING ROD

ROD ASSEMBLY - connecting, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 4

6шт.

JC901383

CORE-ROD CONNECTING

RETURN NUMBER - use this part number to return connecting rod for credit when using a remanufactured assembly

1шт.

J901383

CONNECTING ROD

ROD ASSEMBLY - connecting, Includes: Ref. 1 - 4

6шт.

84487529R

REMAN-CONNECTING ROD

9240 (10/90 - 10/94), Reman for New P/N J901383

6шт.

84487529C

CORE-ROD CONNECTING

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

ROD - connecting, two piece

1шт.

2

J913990

BUSHING,45.03mm ID x 49mm OD x 45mm L

- connecting rod

1шт.

3

J901380

BOLT

- rod retaining

2шт.

4

J901381

SPECIAL NUT

- hex, bolt retaining

2шт.

5

A77563

BEARING SET

KIT - bearing, standard, upper and lower

6шт.

5

A77564

BEARING SET

KIT - bearing, 0.25 mm undersize, upper and lower

6шт.

5

A77565

BEARING SET

KIT - bearing, 0.50 mm undersize, upper and lower

6шт.

5

A77566

BEARING SET

KIT - bearing, 0.75 mm undersize, upper and lower

6шт.

5

A77567

BEARING SET

KIT - bearing, 1.00 mm undersize, upper and lower

6шт.

Выбрано товаров: 14
