Запчасти Case IH 9240 (2-064) - PISTONS, 6TA-830 ENGINE, PISTONS PRIOR TO ENGINE SERIAL NUMBER 44536857 (02) - ENGINE

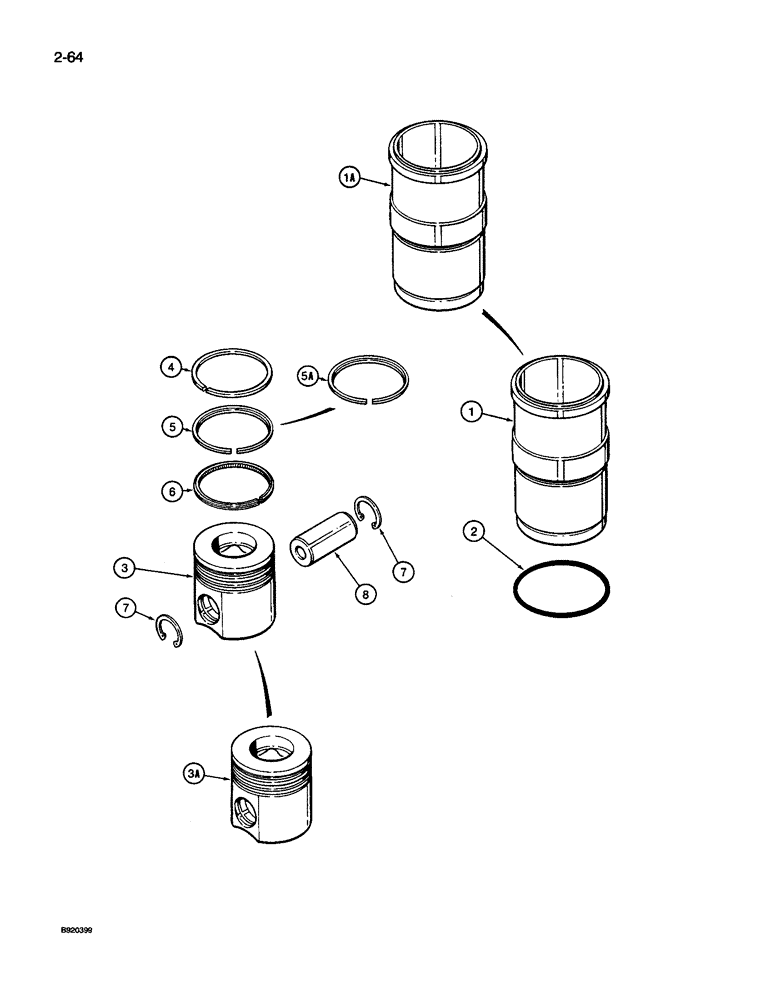

Схема запчастей Case IH 9240 - (2-064) - PISTONS, 6TA-830 ENGINE, PISTONS PRIOR TO ENGINE SERIAL NUMBER 44536857 (02) - ENGINE
4
3
5a
1
7
8
2
7
5
3a
1a
3

Артикул

Название

Примечание

Количество

A77774

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 8750, no longer available, order A77748 kit, below (Replaces A77626), Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, replaces J917737 O-ring

1шт.

A77664

KIT

- piston, standard, Includes: piston stamped 8750, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8750

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8750, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

A77748

PACKAGE

KIT - piston and sleeve, Includes: piston stamped 9930 (Replaces A77748), engine serial number 44536857 through 44706125, Includes: Ref. 1 - 7

6шт.

A77774

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9565, engine serial number 44536857 through 44706125, Includes: Ref. 1 - 7

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston, engine serial number 44536857 through 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, pistons engine serial number 44536857 through 44706125

1шт.

A77746

PACKAGE

KIT - piston, standard, Includes: piston stamped 9930, engine serial number 44536857 through 44706125, Includes: Ref. 3A - 6

1шт.

A77773

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9565 or 3164, engine serial number 44536857 through 44706125, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9930, engine serial number 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, engine serial number 44536857 through 44706125

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9930, 9565 or 3164, engine serial number 44536857 through 44706125, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, pistons engine serial number 44536857 through 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, pistons engine serial number 44536857 through 44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, pistons engine serial number 44536857 through 44706125

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, pistons engine s/n 44536857 through 44706125 1.75", Int, #175

2шт.

8

J901597

PIN

- piston, engine serial number 44536857 through 44706125

1шт.

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9565, engine serial number 44706126 and after, Includes: Ref. 1A - 8

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston, engine serial number 44706126 and after

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, pistons engine serial number 44706126 and after

1шт.

A77773

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9565 or 3164, engine serial number 44706126 and after, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, engine serial number 44706126 and after

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9565 or 3164, engine serial number 44706126 and after, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, pistons engine serial number 44706126 and after

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, pistons engine serial number 44706126 and after

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, pistons engine serial number 44706126 and after

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, pistons engine s/n 44706126 and after 1.75", Int, #175

2шт.

8

J901597

PIN

- piston, engine serial number 44706126 and after

1шт.

Выбрано товаров: 36
