Запчасти Case IH 9240 (2-042) - CYLINDER HEAD COVER, 6TA-830 ENGINE (02) - ENGINE

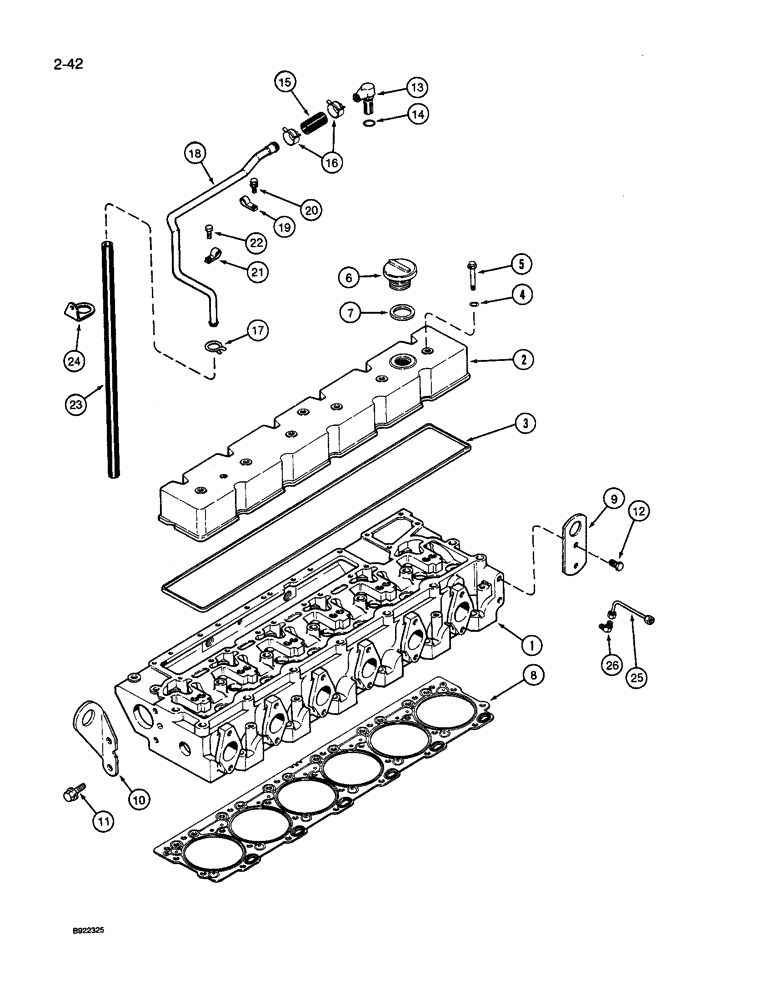

Схема запчастей Case IH 9240 - (2-042) - CYLINDER HEAD COVER, 6TA-830 ENGINE (02) - ENGINE
5
4
3
16
17
20
2
21
22
23
19
13
12
11
1
9
24
25
14
26
10
6
15
8
7
18

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

HEAD - cylinder, See Figures 2-046 and 2-048 for correct assembly and component parts

1шт.

2

J907734

COVER ASSY

COVER - valve

1шт.

3

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

4

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, sealing (Replaces J910824)

6шт.

5

J916585

BOLT,Hex Flg, M8 x 1.25

BOLT - hex flange, shoulder, special

6шт.

6

J902468

FILLER CAP,Male

CAP - oil filler

1шт.

7

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

8

J921850

GASKET

- cylinder head, standard, replaces J921216 gasket

1шт.

8

J921852

GASKET

- cylinder head, 0.27 mm thicker, replaces J914305 gasket

1шт.

8

J921853

GASKET

- cylinder head, 0.48 mm thicker, replaces J914306 gasket

1шт.

9

J907861

LIFTING EYE

BRACKET - lifting, front

1шт.

10

J906440

LIFTING EYE

BRACKET - lifting, rear

1шт.

11

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9, rear lifting bracket to cylinder head

2шт.

12

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

Front lifting bracket to cylinder head Hex, M12 x 25, 8.8, Full Thd

2шт.

13

J906794

CONNECTION

CONNECTOR - 90 degree, vent, breather

1шт.

14

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing, breather tube

1шт.

15

J915040

HOSE

- breather, Serial Range: tube-connector

1шт.

16

J918163

CLIP

CLAMP - hose, spring type

2шт.

17

214-113

HOSE CLAMP,#18, 1 1/8", Spring

CLAMP - spring type, 1-1/8 inch

1шт.

18

J909669

TUBE,15.9-19 mm OD x 642.7 mm L

- breather

1шт.

19

J907741

CLAMP,15.88mm ID, 9.52mm Bolt Hole, P Type

P-style, Tube retaining M15.88, M9.52 Bolt Hole

1шт.

20

J912072

SELF-TAP SCREW

SCREW - hex washer head, self-tapping, special, 8 x 15 mm

1шт.

21

A77538

CLIP

- P style, tube retaining

1шт.

22

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

1шт.

23

A77717

HOSE

- breather, tube end

1шт.

24

J909670

CLIP

- retaining

1шт.

25

J918167

TUBE,6.35 mm OD x 117.5 mm L

- vent, air

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degree, compression, 1/4 tube OD x 1/8 inch PT

1шт.

Выбрано товаров: 28
