Запчасти Case IH 9240 (2-040) - OIL PUMP AND OIL PAN, 6TA-830 ENGINE (02) - ENGINE

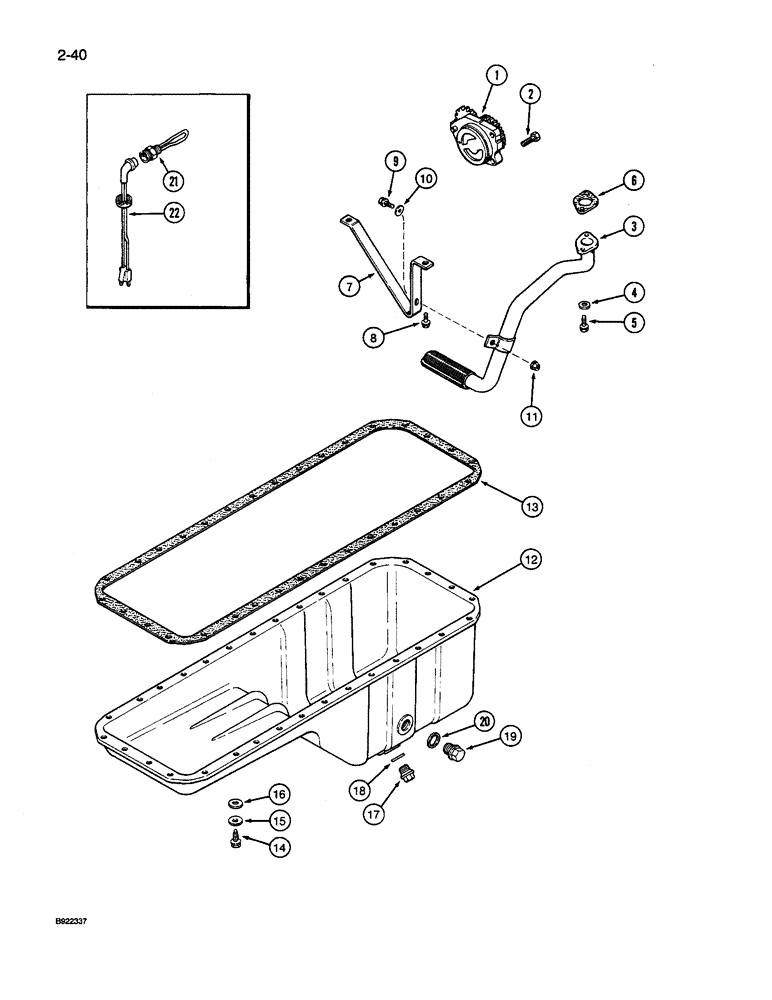

Схема запчастей Case IH 9240 - (2-040) - OIL PUMP AND OIL PAN, 6TA-830 ENGINE (02) - ENGINE
3
11
6
12
20
17
8
19
1
22
15
13
10
7
4
2
18
21
5
9
16
14

Артикул

Название

Примечание

Количество

1

J921067

PUMP, ENGINE OIL

PUMP - engine oil, new, replaces J918213 pump

1шт.

JR921067

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only

1шт.

JC921067

CORE-ENGINE OIL PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

JR948071

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC948071

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J910787

TUBE

TUBE - oil suction, with screen

1шт.

4

J908738

SPACER

SPACER - mounting

2шт.

5

845-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

BOLT - heavy hex flange, 6 - 1.00 x 30 mm

2шт.

6

J914302

GASKET

GASKET - mounting, oil tube

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

7

J913427

BRACE

BRACE - suction tube

1шт.

8

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

9

J901865

FLANGE BOLT,Hvy Hex, M6 x 20mm, Cl 8.8, Full Thd

BOLT - hex flange, special

1шт.

10

J910960

WASHER

WASHER - flat, retaining

1шт.

11

J906216

FLANGE NUT

NUT - hex flange, special, M6

1шт.

12

J914013

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - pan, oil

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

14

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, M8 x 25

32шт.

15

J910266

LOCK WASHER

WASHER - spring, Belleville

32шт.

16

J908316

WASHER

WASHER - flat, M9 x 16 x 1

32шт.

17

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic

1шт.

18

J920773

SEALING WASHER

WASHER - sealing

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

19

J904386

PLUG

PLUG - heater hole, oil

1шт.

20

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing

1шт.

Part of oil pan gasket kit P/N A77679.

1шт.

A77679

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 6, 13, 18 and 20

1шт.

A77580

SERVICE KIT

KIT - heater, oil pan (also order Ref. 20, J902425 washer), Includes: Ref. 21 & 22

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 12 volt, oil pan kit

1шт.

22

J905113

CABLE

CABLE - heater, 6 foot, oil pan kit

1шт.

Выбрано товаров: 32
