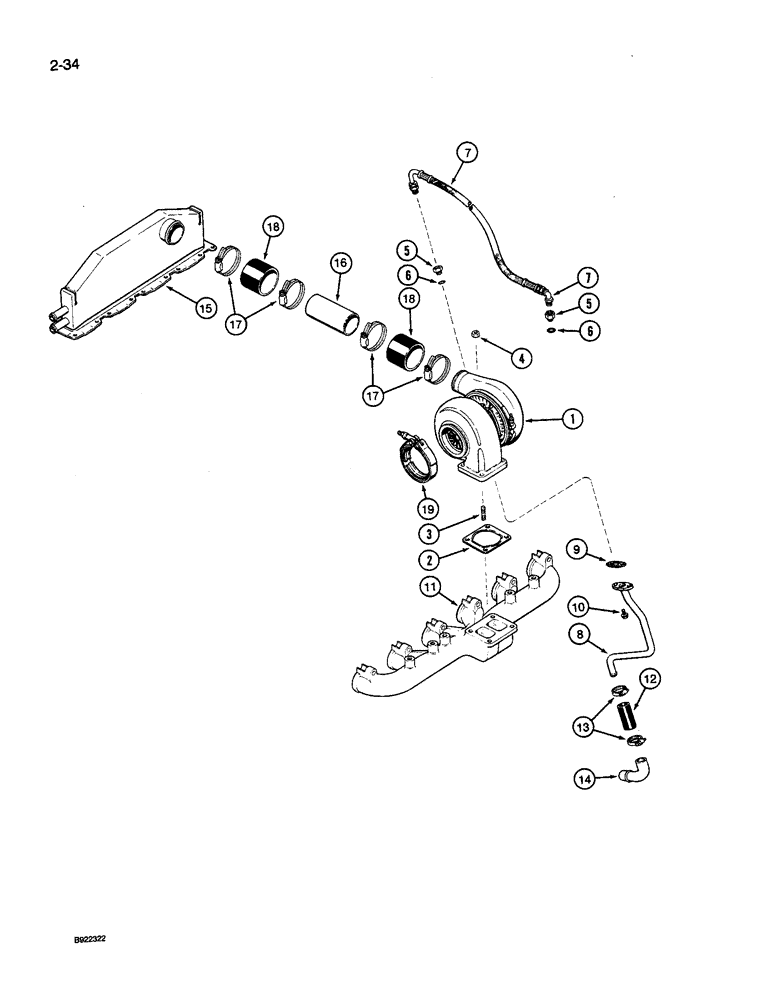

Запчасти Case IH 9240 (2-034) - TURBOCHARGER SYSTEM, 6TA-830 ENGINE (02) - ENGINE

1

J919199

TURBOCHARGER

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-036

1шт.

1

JR802303

REMAN-TURBOCHARGER

9240, Reman For New P/N J919199

1шт.

1

JC528777

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J911941

GASKET

GASKET - mounting, turbocharger

1шт.

3

J905417

STUD

STUD - turbocharger mounting

4шт.

4

J901961

NUT

NUT - hex, special

4шт.

5

J919687

HYD CONNECTOR

ADAPTER - female, supply hose, Includes: Ref. 6

2шт.

6

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

7

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply, Replaces J913759

1шт.

8

J917417

TUBE,22.23 mm OD x 281, 141.1 mm L

TUBE - oil drain

1шт.

9

J914388

GASKET

GASKET - oil drain tube

1шт.

10

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

2шт.

11

J906720

MANIFOLD

MANIFOLD - exhaust, See Figure 2-032 for mounting parts

1шт.

12

J903745

LARGE HOSE

HOSE,LARGE HOSE - turbocharger oil drain

1шт.

13

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

HOSE CLAMP, - adj. #16, 0.81/1.50 Type F Worm

2шт.

14

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - drain, oil

1шт.

15

J914501

COOLER

AFTERCOOLER - intake, See Figure 2-032 for mounting parts and water tubes

2шт.

16

J914943

TUBE,63.5 mm OD x 140 mm L

TUBE - air, crossover

1шт.

17

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia

4шт.

18

J916529

TRANSMISSION SLEEVE

HOSE - crossover tube

2шт.

19

A170807

CLAMP,102mm ID

CLAMP, exhaust tube retaining

1шт.
