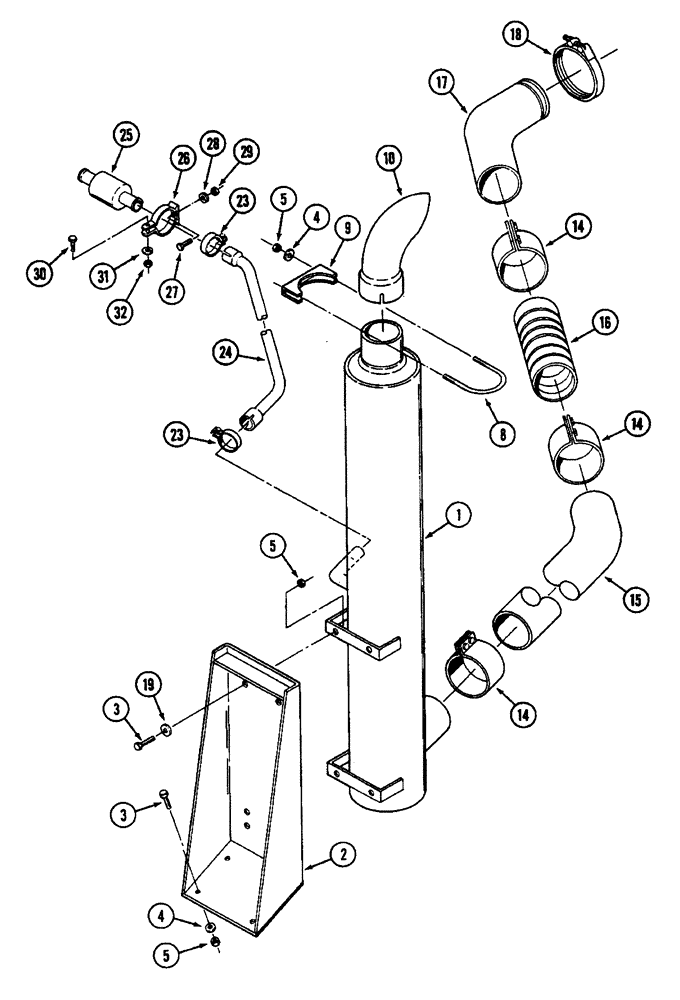

Запчасти Case IH 9240 (2-020) - EXHAUST SYSTEM (02) - ENGINE

1

90-7342T1

MUFFLER

- exhaust

1шт.

2

90-5779T3

SUPPORT

MOUNT - support, muffler

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

5

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

10шт.

8

19-6256T1

BOLT

CLAMP - U-bolt, 3/8 NC x 4 x 5-3/4 inch

1шт.

9

19-6232T1

SADDLE

- clamp, U-bolt

1шт.

10

90-7343T1

EXHAUST SYSTEM PIPE,4" OD

STACK - exhaust, muffler

1шт.

14

90-7635T1

CLAMP

- exhaust

3шт.

15

90-7366T1

EXHAUST SYSTEM PIPE,4" OD

TUBE - exhaust

1шт.

16

90-5858T1

TUBE,4" ID x 4.25" OD x 9" L

- flex, exhaust

1шт.

17

90-7368T1

TUBE,8.67 mm L

- exhaust, turbocharger to flex tube

1шт.

18

A170807

CLAMP,102mm ID

tube retaining 4 inch

1шт.

Use 90-3606T1 for a 4-3/4 inch clamp.

1шт.

19

19-1059

WASHER

- flat, 3/8 x 1-1/4 x 7/64 inch

4шт.

23

31-2434

CLAMP

- tube

2шт.

24

90-7304T2

TUBE,1.5" OD

- aspirator

1шт.

25

A190699

VALVE

- check, aspirator

1шт.

26

1-8563

CLAMP BRACKET

CLAMP - check valve

1шт.

27

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

28

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

30

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

1шт.

31

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
