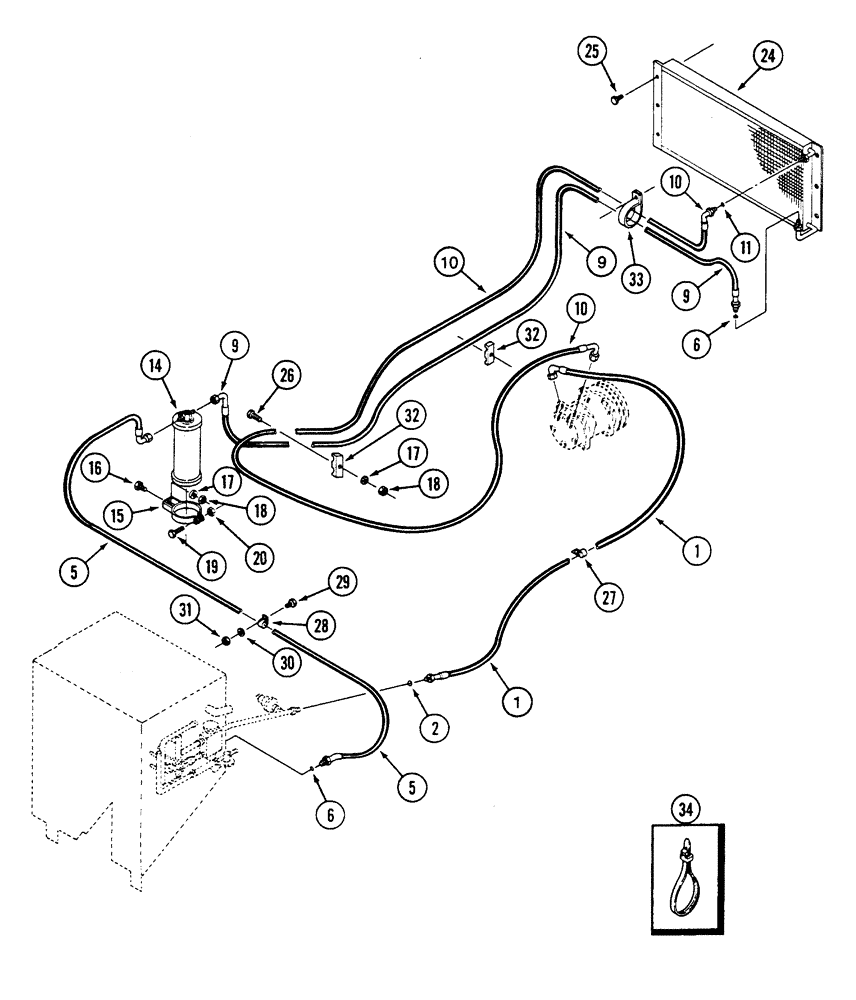

Запчасти Case IH 9240 (9-108) - AIR CONDITIONING LINES, CONDENSER AND RECEIVER-DRIER, 9240 TRACTOR (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
31-2913
HOSE ASSY.
HOSE, suction
1шт.
2
31-1809
O-RING
9/16 ID x 1/16 inch wide, hose
1шт.
5
31-2822
HOSE ASSY.
HOSE, 42 inch (1067 mm) long, receiver-drier to thermal expansion valve
1шт.
6
31-1807
O-RING
O-RING, 5/16 ID x 1/16 inch wide, hose
2шт.
9
31-2895
HOSE
, Serial Range: condenser-receiver-drier
1шт.
10
31-2912
HOSE ASSY.
HOSE - discharge, 5/16 inch ID
1шт.
10
31-2982
HOSE ASSY.
HOSE - discharge, 13/32 ID x 113 inch (2870 mm) long
1шт.
11
31-1808
O-RING
O-RING, 7/16 ID x 1/16 inch wide, hose
1шт.
14
60-5818T2
CONDENSER
RECEIVER-DRIER - air conditioning
1шт.
15
1-8563
CLAMP BRACKET
BRACKET - mounting, receiver-drier
2шт.
16
426-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 8
- hex, 5/16 NC x 3/4 inch, grade 8
2шт.
17
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
1шт.
18
231-1445
NUT,5/16"-18, GB
NUT - hex, self-locking, 5/16 inch NC
3шт.
19
426-424
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8
- hex, 1/4 NC x 1-1/2 inch, grade 8
2шт.
19
413-436
BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5
2шт.
20
232-4114
LOCK NUT,1/4"-20, GC
NUT, LOCK, 1/4"-20, GC
2шт.
24
60-6711T1
CONDENSER
- air conditioning, replaces 60-4335T2
1шт.
25
426-58
BOLT,Hex, 5/16" - 18 x 1/2", Gr 8
- hex, 5/16 NC x 1/2 inch, grade 8
6шт.
26
413-528
BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5
- hex, 5/16 NC x 1-3/4 inch, if used
1шт.
27
515-23270
CLAMP,1 1/16", Insul, 3/8" Bolt
- P-type, 1-1/16 inch ID, retaining
1шт.
28
31-1776
MOUNTING CLIP
CLAMP - P-type, hose, if used
1шт.
29
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
1шт.
30
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
1шт.
31
232-4136
LOCK NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
1шт.
32
50-2551T1
CLAMP
- hose, split, Includes both halves
2шт.
33
31-1411
CLAMP
- P-type, hose
1шт.
34
19-135
CABLE TIE
STRAP - tie, nylon
1шт.
