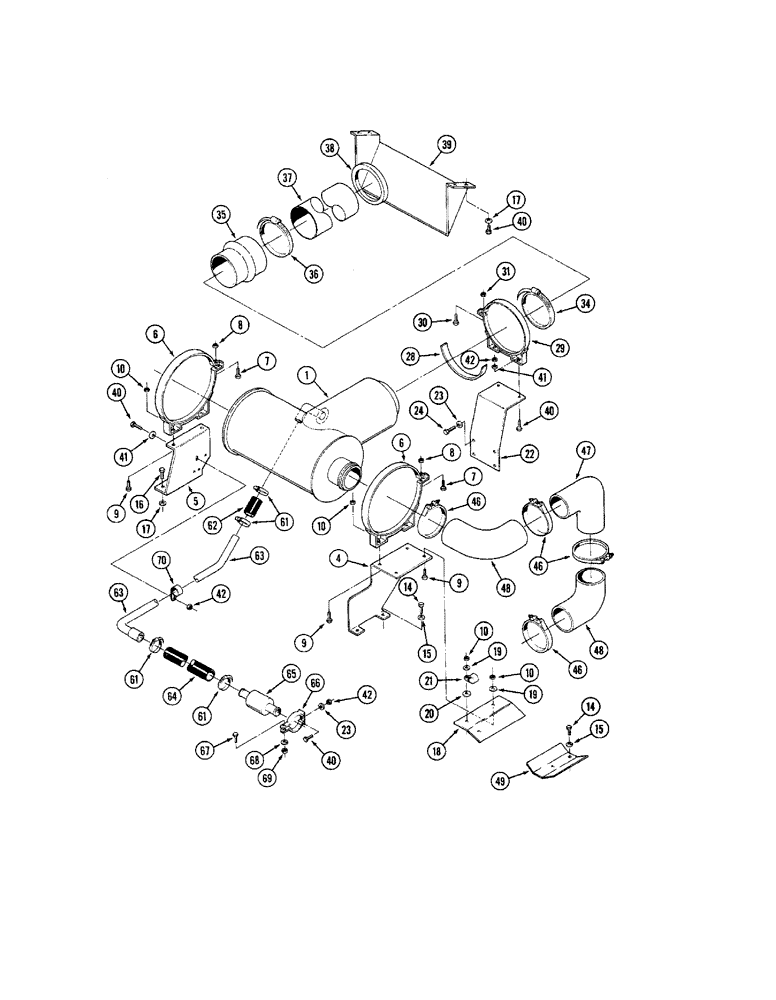

Запчасти Case IH 9240 (2-010) - AIR INDUCTION SYSTEM, 9240 TRACTOR (02) - ENGINE

1

90-6122T91

AIR CLEANER

ASSEMBLY - engine, See Figure 2-014

1шт.

4

90-6118T1

BRACKET

- mounting, air cleaner

1шт.

5

90-6972T1

BRACKET

- mounting, air cleaner

1шт.

6

90-6121T1

BRAKE BAND

CLAMP ASSEMBLY - air cleaner (Order A16574), Includes: Ref. 7 & 8

2шт.

7

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

2шт.

8

27254R1

NUT

- hex lock, 5/16 inch NC

2шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/4 NC x 1 inch

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

14

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 - 1.5 x 20 mm

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

3шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

18

90-6522T1

SHIELD

- heat

1шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

20

19-380

SPACER - clamp

1шт.

21

32-343

MOUNTING CLIP

CLAMP - hose

1шт.

22

90-7351T1

BRACKET

- mounting, air cleaner

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

28

90-6834T1

FOAM

- mounting back, 9 inch (Order 2-6617T2 and, Serial Range: cut-length)

1шт.

29

90-6241T1

CLAMP

ASSEMBLY - air cleaner, Includes: Ref. 30 & 31

1шт.

30

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

- round head slotted, 1/4 NC x 1-1/2 inch

1шт.

31

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- square, 1/4 inch NC

1шт.

34

214-21160

CLAMP,#160, 5.87"-6.18", T-Bolt

- hose, 5-1/4 to 6-1/8 inch range

1шт.

35

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Coupling 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

36

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose (Order 214-1420)

1шт.

37

90-7348T1

AIR INTAKE TUBE,6" OD x 18" L

TUBE - air induction

1шт.

38

90-7220T1

SEAL

GROMMET - seal tube to shroud, 23-1/4 inch (Order 90-2894T1 and, Serial Range: cut-length)

1шт.

39

90-7329T1

BAFFLE

- air

1шт.

40

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

8шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

3шт.

42

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

46

32-146

CLAMP,#108, 4.25"-4.56", T-Bolt

- hose, 4-1/4 to 4-9/16 inch range (Order 214-3272)

4шт.

47

90-7370T1

ELBOW

- air induction

1шт.

48

218899R1

ELBOW

- air cleaner outlet

2шт.

49

90-6119T2

SHIELD

- heat

1шт.

61

32-26

HOSE CLAMP,#28, 1.31/2.25 Type F Worm

CLAMP - hose, 1-5/16 to 2-1/4 inch range

4шт.

62

31-2594

HOSE,1.25" ID x 4.00"

Aspirator Tube; Order 01-4569T1, and Cut to Required Length 1.25" ID x 4.00"

1шт.

63

90-7349T1

TUBE,1.25" OD x 24.62", 4.5" L

- aspirator

1шт.

64

90-7350T1

HOSE,16.00"

Aspirator (Order 31-2901 and Cut to Length) 16.00"

1шт.

65

A190699

VALVE

- check, aspirator tube

1шт.

66

1-8563

CLAMP BRACKET

CLAMP - check valve

1шт.

67

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

1шт.

68

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

69

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

70

31-1348

CLAMP

- hose

1шт.
