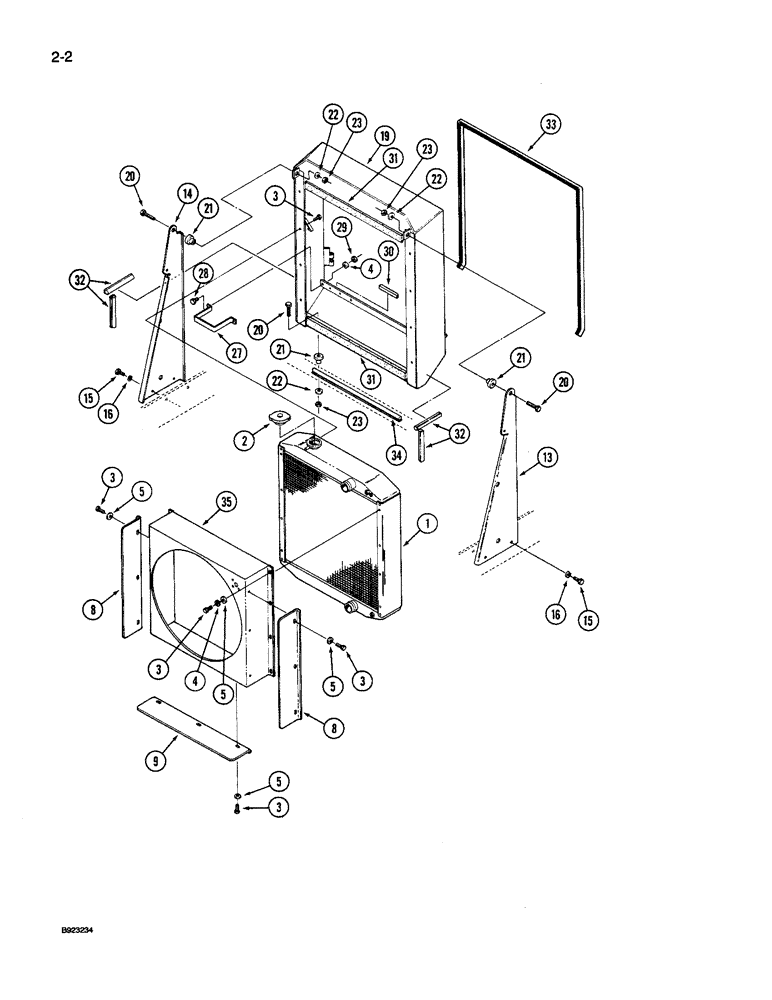

Запчасти Case IH 9240 (2-002) - RADIATOR MOUNTING, 9240 TRACTOR (02) - ENGINE

1

A190762

RADIATOR

- cooling system, See Figure 2-006

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

3

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

25шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

17шт.

8

90-7360T2

SHIELD

- fan, sides

2шт.

9

90-7361T2

SHIELD

- fan, bottom

1шт.

13

70-5767T1

SUPPORT

MOUNT - radiator frame, right

1шт.

14

70-5765T1

SUPPORT

MOUNT - radiator frame, left

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

90-7252T2

FRAME

- radiator mounting

1шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

18-511

MOUNTING PARTS

MOUNT - isolator, rubber (Order L13142)

4шт.

22

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2 x 1-3/4 x 1/8 inch

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

27

50-3333T1

SUPPORT

BRACKET - hose retaining

1шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

30

70-5848T1

SEAL

TRIM - edge protector, 5-1/2 inch (Order F64277 and, Serial Range: cut-length)

1шт.

31

60-6505T1

FOAM

- seal, 29-1/2 inch (Order 60-4595T1 and, Serial Range: cut-length)

2шт.

32

90-7285T1

SEAL

FOAM - seal, 7-1/4 inch (Order 70-5259T1 and, Serial Range: cut-length)

4шт.

33

90-7277T1

SEAL

FOAM - seal, 112 inch (Order F43117 and, Serial Range: cut-length)

1шт.

34

90-7284T1

SEAL

FOAM - seal, 24-1/2 inch (Order 70-5259T1 and, Serial Range: cut-length)

1шт.

35

90-7358T1

SHROUD

- fan

1шт.
