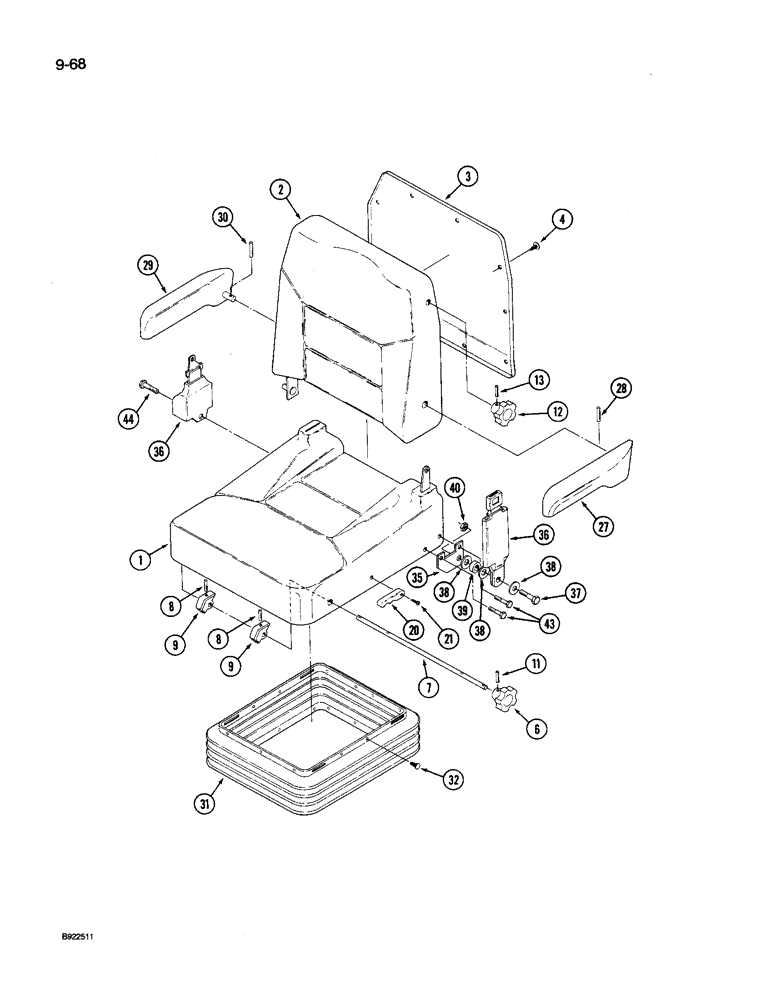

Запчасти Case IH 9240 (9-068) - VINYL SEAT, MECHANICAL SUSPENSION, ROPS UNITS (09) - CHASSIS/ATTACHMENTS

1340224C3

SEAT ASSY.

SEAT ASSEMBLY - mechanical, vinyl, Includes: Ref. 1 - 44 and 1 - 28 on Figure 9-070

1шт.

1981830C2

SET OF PARTS

KIT - cushion and backrest, service, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat (Order 1981832C2)

1шт.

1981832C2

CUSHION, SEAT

KIT - cushion, seat, service, Includes: cushion and retainer

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - cushion

22шт.

2

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest (Order 1981831C1)

1шт.

1981831C1

BACKREST

KIT - cushion, backrest, service, Includes: cushion and retainer

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - cushion

22шт.

3

1981820C2

PACKAGE, REPAIR

KIT - cover, back, Includes: Ref. 4

1шт.

4

1974722C1

CLIP,ELECTRICAL

RETAINER - cover

10шт.

6

1981826C1

KNOB

- tilt, seat

1шт.

1343826C2

SHAFT ASSY.

SHAFT ASSEMBLY - tilt, seat, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - tilt, seat

1шт.

8

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

9

1343828C1

CAM

- tilt, seat (Order 1343826C2)

2шт.

11

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

12

1981828C1

BUTTON

KNOB - control, lumbar

1шт.

13

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

20

1974711C1

LEVER

KNOB - backrest tilt

1шт.

21

30299R1

SCREW,Cross Oval Hd, M6 x 12

- oval head slotted machine, 6 x 12 mm

1шт.

27

1981818C1

ARMREST

KIT - armrest, seat, left, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

29

1974703C2

ARMREST ASSY.

KIT - armrest, seat, right, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

31

1981786C1

KIT

- boot, suspension, Includes: Ref. 32

1шт.

32

700709502

FASTENER

PIN - mounting, boot (bag of 25)

1шт.

35

1975957C1

BRACKET

- seat belt

1шт.

36

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

37

326-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

1шт.

38

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

39

S5375

SPACER,3/8" Pipe x 3/8"

- pipe, 3/8 x 3/8 inch

1шт.

40

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex lock, 7/16 inch NC

1шт.

43

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

44

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.
