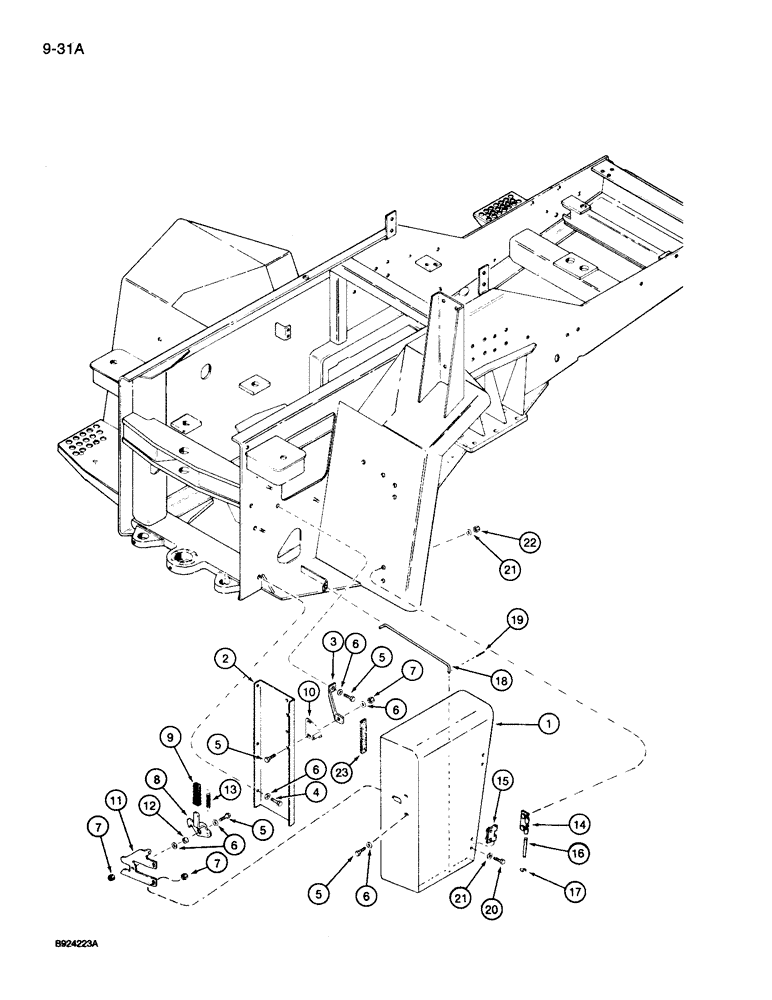

Запчасти Case IH 9240 (9-031A) - HYDRAULIC OIL TANK COVER WITH SIDE HINGED ACCESS DOOR (09) - CHASSIS/ATTACHMENTS

1

70-6338T1

COVER

AND ACCESS DOOR - hydraulic oil tank

1шт.

2

70-6337T2

LARGE PLATE

PANEL - mounting, latch striker

1шт.

3

70-6332T2

SUPPORT

BRACE - panel

1шт.

4

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

3шт.

5

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

6

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

10шт.

7

19-087

NUT - hex, self-locking, 3/8 inch NC

7шт.

8

70-6206T1

LATCH

- access door

1шт.

9

90-6966T1

MOLDING

HANDLE - door latch

1шт.

10

70-6333T1

LARGE PLATE

STRIKER - door latch

1шт.

11

70-6207T2

SUPPORT

BRACKET - mounting, latch

1шт.

12

70-5177T1

SPACER

- pivot, latch

1шт.

13

90-7524T1

SPRING

- latch return

1шт.

14

70-6210T1

HINGE

- door mounting, at frame

2шт.

15

70-6200T1

HINGE

- door mounting, at access door

2шт.

16

70-1996T3

PIN,6.35mm OD x 111mm L

ROD - hinge

2шт.

17

70-2600T2

CIRCLIP

RING - retaining, rod

4шт.

18

70-6336T1

STEM

ROD - hold open, access door

1шт.

19

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

1шт.

20

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

8шт.

22

19-087

NUT - hex, self-locking, 3/8 inch NC

4шт.

23

60-6607T2

FOAM

- seal, access door, 28 inch long (Order 60-4596T2 and, Serial Range: cut-length)

1шт.
