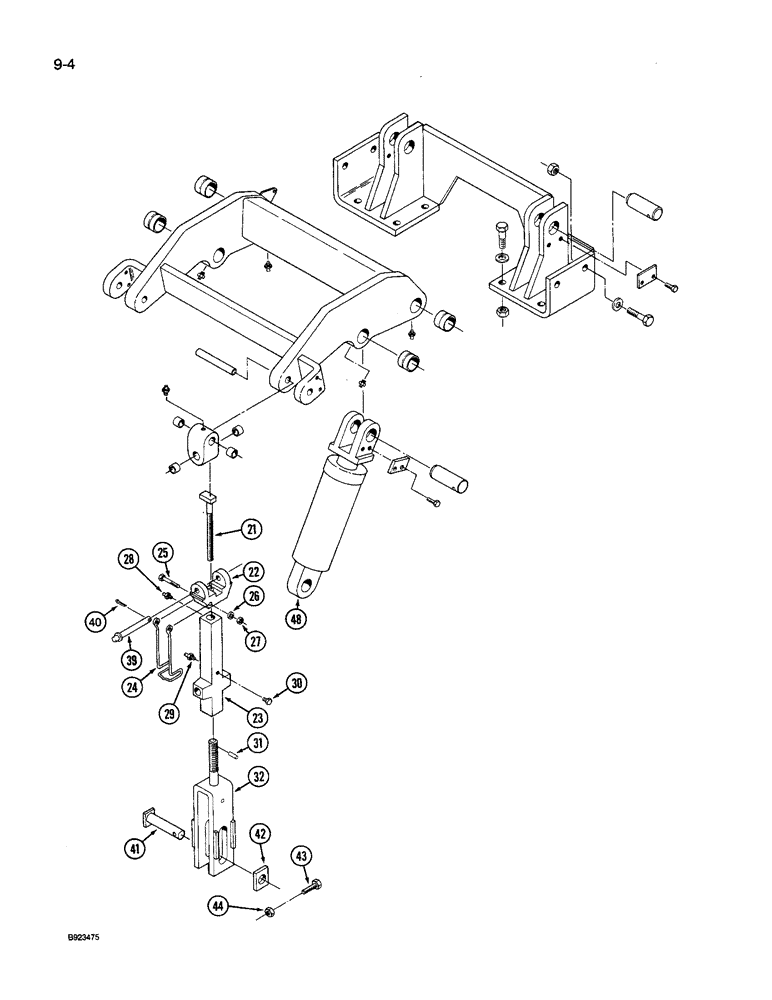

Запчасти Case IH 9240 (9-004) - HITCH ROCKERSHAFT (CONTD) (09) - CHASSIS/ATTACHMENTS

70-5350T91

ARM, LIFT

LINK ASSEMBLY - lift (Order components), Includes: Ref. 21 - 32

2шт.

21

70-5410T1

STEM

ROD - leveling

1шт.

22

70-5496T1

FORK

YOKE - lift link

1шт.

23

149836C2

TURNBUCKLE

- lift link

1шт.

24

123464C2

CLAMP

- turnbuckle lock

1шт.

25

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

29

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, 1/4 inch PT

1шт.

30

221-841

PLUG

- pipe, 1/4 inch PT

1шт.

31

138-2007

PIN,1/4" x 1 1/4", Coiled

1шт.

32

70-5349T1

CLEVIS

- hitch

1шт.

39

70-5471T1

PIN

- head, lift link

2шт.

40

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

41

70-5025T1

PIN

- lift link, lower

2шт.

42

70-4425T1

LARGE PLATE

PLATE - pin retaining

2шт.

43

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

44

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

2шт.

48

REF

INSTRUCTION

CYLINDER ASSEMBLY - hitch lift, See Figure 8-062 for correct cylinder

2шт.
