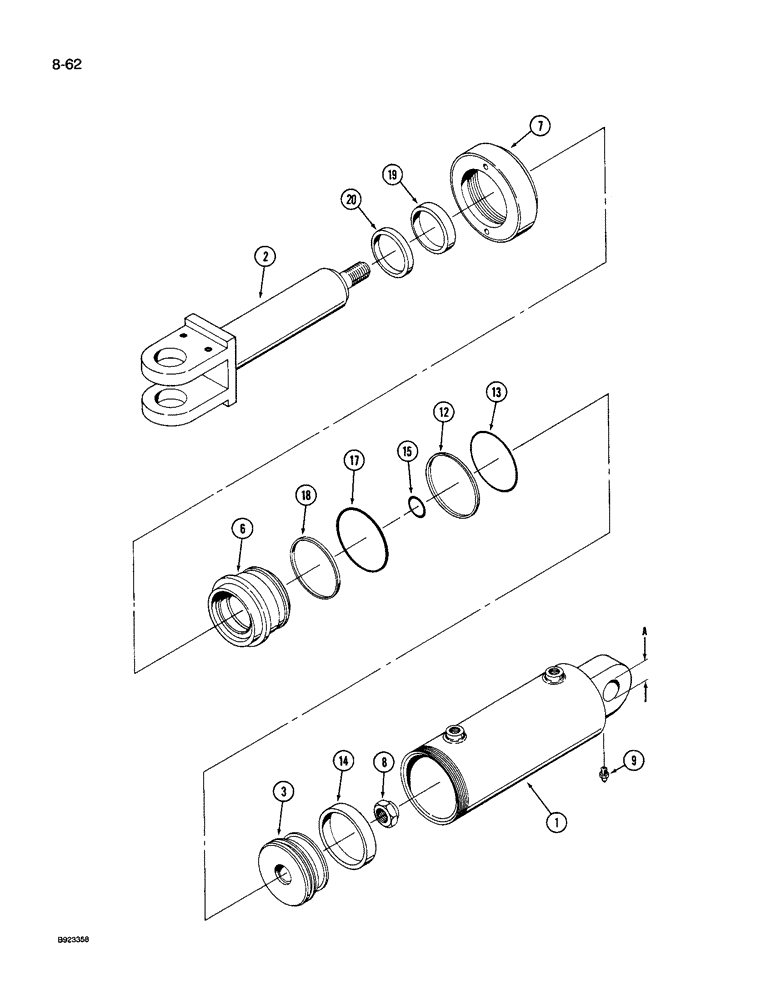

Запчасти Case IH 9240 (8-062) - HITCH LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS

50-2441T91

CYLINDER

ASSEMBLY - hitch lift, Includes: Ref. 1 - 20

1шт.

Identify cylinder by checking dimension "A" before ordering repair parts.

1шт.

1

50-2445T1

TUBE ASSY.

TUBE - cylinder (Dimension "A" is 1-33/64 inch)

1шт.

2

50-2412T2

ROD

- cylinder, 16-3/8 inch long

1шт.

3

50-2442T1

JACK PISTON

PISTON - cylinder

1шт.

6

50-2436T1

CYLINDER END CAP

GUIDE - rod

1шт.

7

50-2440T1

CLAMP

COLLAR - locking, guide

1шт.

8

19-5582

LOCK NUT

- lock

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

35-1642T91

SEAL KIT

KIT - seal, cylinder (Order components), Includes: Ref. 12 - 20

1шт.

12

50-2443T1

PISTON RING

RING - piston

1шт.

13

50-2444T1

O-RING,3.987" ID x 0.103" Width

- seal, piston

1шт.

14

50-2439T1

WEAR RING,107.95mm ID x 114.3mm OD x 15.88mm Thk

RING - wear, piston

1шт.

15

1-9857T1

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

O-RING - seal, rod

1шт.

17

50-2438T1

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

- seal, guide

1шт.

18

50-2437T1

WASHER

WASHER - backup, o-ring

1шт.

19

1-9858T1

SEAL

- rod

1шт.

20

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

SEAL - wiper, rod

1шт.

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch lift, Includes: Ref. 1 - 20

1шт.

Identify cylinder by checking dimension "A" before ordering repair parts.

1шт.

1

50-3501T1

HYD CYL SLEEVE

TUBE - cylinder (Dimension "A" is 2-1/64 inch)

1шт.

2

50-3500T1

PISTON ROD

ROD - cylinder, 16-5/8 inch long

1шт.

3

50-2442T1

JACK PISTON

PISTON - cylinder

1шт.

6

50-2436T1

CYLINDER END CAP

GUIDE - rod

1шт.

7

50-2440T1

CLAMP

COLLAR - locking, guide

1шт.

8

19-5582

LOCK NUT

- lock

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

12

50-2443T1

PISTON RING

RING - piston

1шт.

13

50-2444T1

O-RING,3.987" ID x 0.103" Width

- seal, piston

1шт.

14

50-2439T1

WEAR RING,107.95mm ID x 114.3mm OD x 15.88mm Thk

RING - wear, piston

1шт.

15

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

17

50-2438T1

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

- seal, guide

1шт.

18

50-2437T1

WASHER

WASHER - backup, o-ring

1шт.

19

1-9858T1

SEAL

- rod

1шт.

20

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - rod sealing

1шт.
