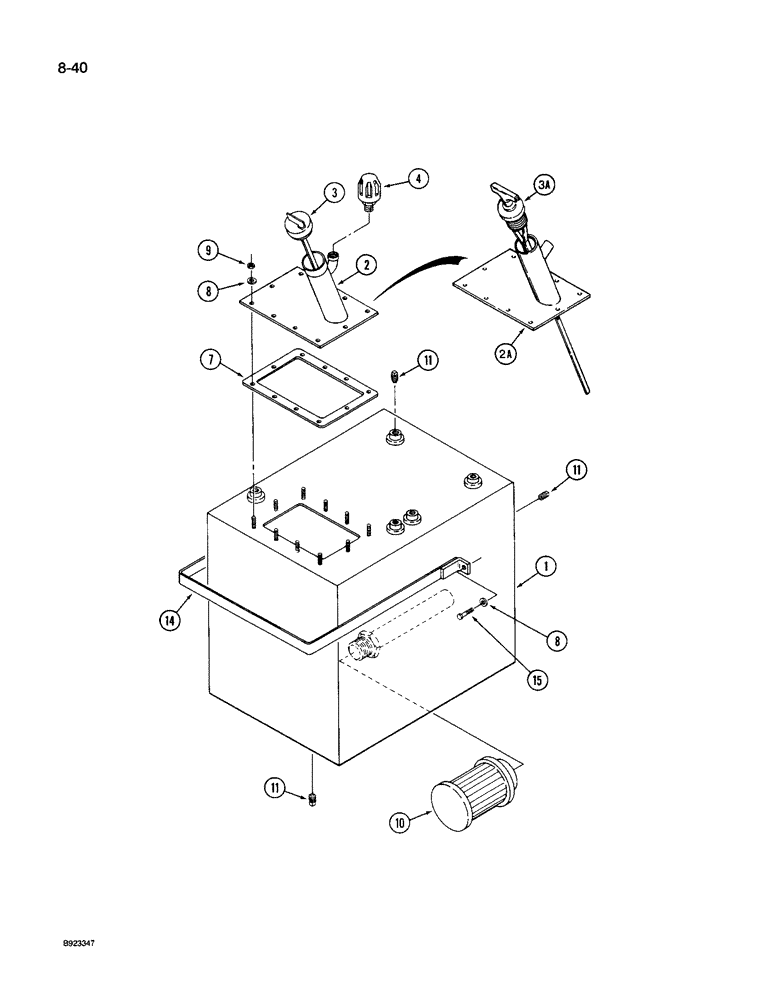

Запчасти Case IH 9240 (8-040) - HYDRAULIC TANK (08) - HYDRAULICS

1

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic oil

1шт.

2

50-3224T1

PLATE

- cover, no longer available, replaced with 50-3523T1 plate and 50-3522T1 dipstick, Ref. 2A & 3A

1шт.

2a

50-3523T1

COVER

PLATE - cover, hydraulic oil tank

1шт.

3

50-2558T1

DIPSTICK

- oil fill, used with 50-3224T1 cover plate, Ref. 2

1шт.

3a

50-3522T1

DIPSTICK

- oil fill, used with 50-3523T1 cover plate, Ref. 2A

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

7

50-2429T1

GASKET

- cover

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

12шт.

9

425-106

NUT,3/8"-16, Cl 5

10шт.

10

50-2029T1

FILTER SCREEN

FILTER - suction, screen

1шт.

11

31-506

PLUG,Hex Hd, 3/8"-18

- square head pipe, 3/8 inch PT, if used

1шт.

11

31-35

PLUG

- square head pipe, 1/2 inch PT, if used

1шт.

14

50-3447T1

BAND

- mounting (19 inch long)

1шт.

14

50-3060T1

BAND

- mounting (15-51/64 inch long) (Order 50-3447T1)

1шт.

15

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

2шт.

50-3513T1

GROMMET

SEAL - protective, 61 inch long (Order 31-1785 and cut to length) (Not Shown)

1шт.
