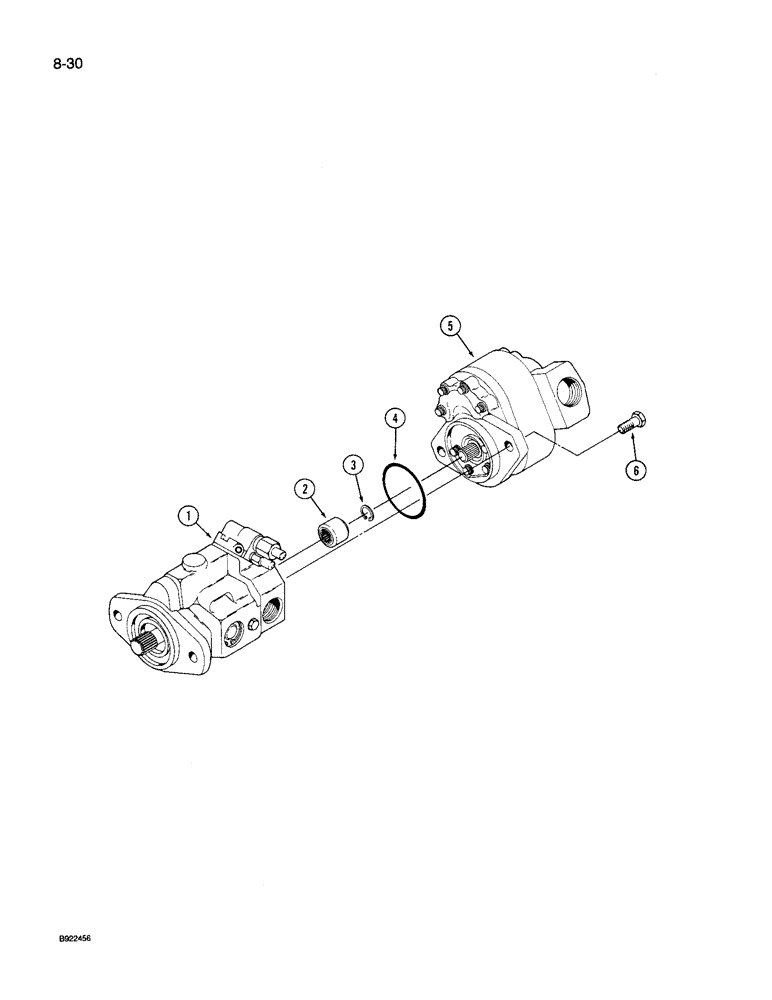

Запчасти Case IH 9240 (8-030) - HYDRAULIC TANDEM PUMP (08) - HYDRAULICS

50-3287T91

PUMP

ASSEMBLY - tandem, piston and gear (9240 and 9260 Tractors), Includes: Ref. 1 - 6

1шт.

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, piston and gear (9250 Tractor), not available, order components, Includes: Ref. 1 - 6

1шт.

1

50-3274T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - piston (9240, 9250 and 9260 Tractors), See Figures 8-032 and 8-034

1шт.

2

50-2663T1

COUPLING

- drive

1шт.

3

D66349

RING, SNAP

RING - retaining

1шт.

4

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

- seal

1шт.

5

50-3320T91

PUMP

ASSEMBLY - gear (9240 and 9260 Tractors), See Figure 8-036

1шт.

5

50-2662T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear (9250 Tractor), See Figure 8-038

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
