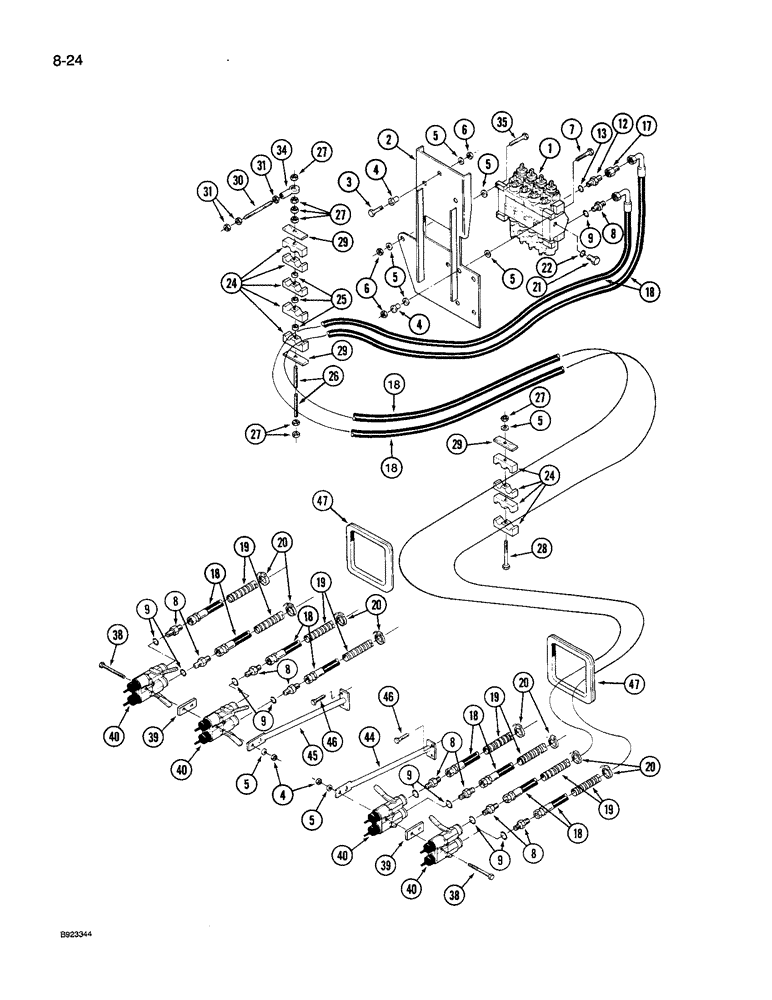

Запчасти Case IH 9240 (8-024) - HYDRAULIC COUPLERS AND LINES, 9240 AND 9260 TRACTOR (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-070 for correct valve

1шт.

2

60-4358T2

SUPPORT

MOUNT - control valve

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

4

60-6650T1

RUBBER BUSHING

CUSHION - rubber

6шт.

5

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 3/32 inch) 3/8"

10шт.

6

425-106

NUT,3/8"-16, Cl 5

10шт.

6

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

2шт.

7

426-648

BOLT,Hex, 3/8" - 16 x 3", Gr 8

- hex, 3/8 NC x 3 inch, grade 8

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

426-696

BOLT,Hex, 3/8" - 16 x 6", Gr 8

- hex,3/8 NC x 6 inch, grade 8

2шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 9 3/4"-16, 37º x 7/8"-14, O-Ring

12шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

12шт.

12

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch thread, Includes: Ref. 13

4шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

17

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER - reducer, 7/8 to 3/4 inch thread

4шт.

18

31-2885

HOSE ASSY.

HOSE - valve to couplers, 127 inch long

8шт.

19

50-3087T1

CONDUIT

GUARD - hose, 59 inch (Order S119717 conduit and, Serial Range: cut-length)

8шт.

20

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

24шт.

21

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Includes: Ref. 22 Hex Hd, 1 1/16"-12 ORB

1шт.

22

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

24

50-2551T1

CLAMP

- hose, spilt halves

13шт.

25

19-6249

SPACER

- clamp

3шт.

26

50-2713T1

STUD

- clamp

1шт.

27

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

28

413-588

BOLT,Hex, 5/16" - 18 x 5-1/2", Gr 5

- hex, 5/16 NC x 5-1/2 inch

2шт.

29

50-2533T1

PLATE

COVER - clamp

4шт.

30

19-6234

STUD

- clamp

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

3шт.

34

19-6233

BALL JOINT

JOINT - ball

1шт.

35

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

35

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch

1шт.

38

413-688

BOLT,Hex, 3/8" - 16 x 5-1/2", Gr 5

- hex, 3/8 NC x 5-1/2 inch

4шт.

39

50-1604T1

SPACER

- coupler

2шт.

40

REF

INSTRUCTION

COUPLER ASSEMBLY - quick disconnect, See Figure 8-078 for correct coupler

4шт.

44

50-3318T1

SUPPORT

MOUNT - coupler, left (With PTO system)

1шт.

44

50-3334T1

SUPPORT

MOUNT - coupler, left (Without PTO system)

1шт.

45

50-3319T1

SUPPORT

MOUNT - coupler, right (With PTO system)

1шт.

45

50-3334T1

SUPPORT

MOUNT - coupler, right (Without PTO system)

1шт.

46

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

- hex, 3/4 NC x 7 inch (With PTO system)

4шт.

46

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch (Without PTO system)

4шт.

47

50-3342T1

GROMMET

- edge, 22-1/2 inch (Order 31-1785T1 and, Serial Range: cut-length)

2шт.
