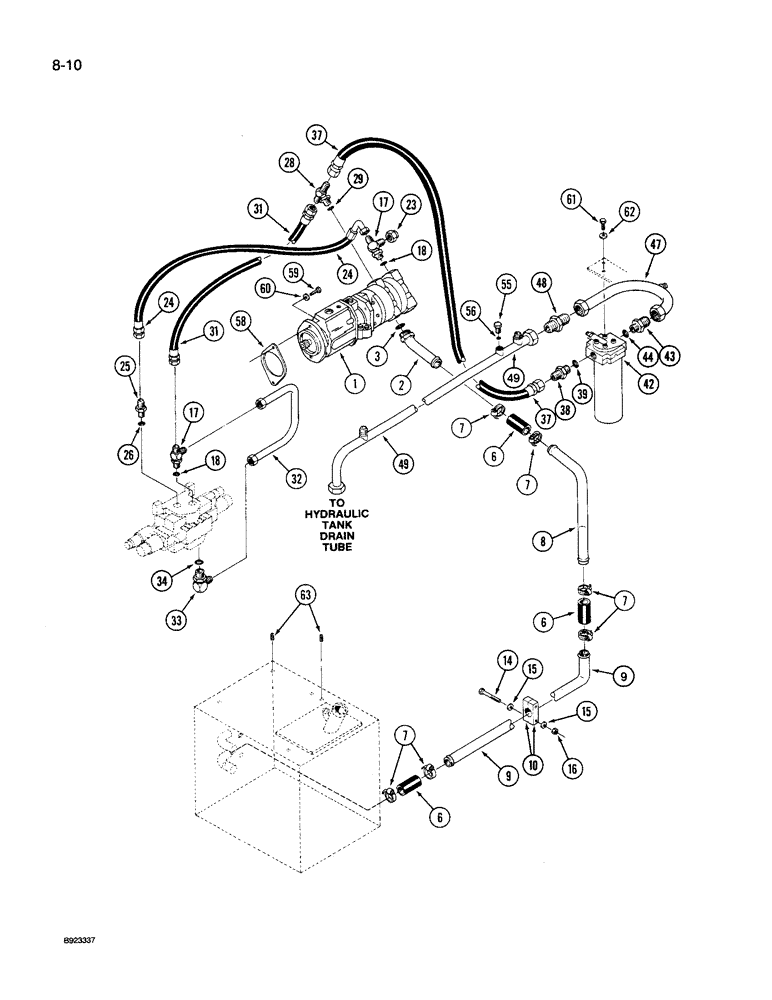

Запчасти Case IH 9240 (8-010) - HYDRAULIC SYSTEM, PUMP TO FILTER AND REAR STEERING VALVE, PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS

1

50-3287T91

PUMP

ASSEMBLY - hydraulic, See Figure 8-030

1шт.

2

31-2529

TUBE

- tank to pump, at pump, Includes: Ref. 3

1шт.

3

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 ID x 1/8 inch

1шт.

6

1-4571

HOSE

- tube to tube, 1-1/2 x 4-1/2 inch long (Order 1-4482T1 and, Serial Range: cut-length)

3шт.

7

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

6шт.

8

50-2838T2

TUBE

-, Serial Range: pump-tube

1шт.

9

50-2840T1

TUBE

-, Serial Range: tank-tube

1шт.

10

50-2884T1

CLAMP

- tube, set

1шт.

14

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

16

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

17

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- 1-1/16-12 inch flare branch x flare x adj O-ring boss, Includes: Ref. 18

2шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

- tube, 1-1/16 inch thread

1шт.

24

31-2888

HOSE ASSY.

HOSE - pump to valve, 25 inch long, if used

1шт.

24

31-3020

HOSE ASSY.

HOSE - pump to valve, 27 inch long, if used

1шт.

25

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 26

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

28

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- adjustable, 1-1/16 inch thread, Includes: Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

31

31-2878

HOSE ASSY.

HOSE - pump to valve, 17 inch long

1шт.

32

50-3299T1

HYD TUBE

TUBE - valve

1шт.

33

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 deg, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring, Includes: Ref. 34

1шт.

34

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

37

31-2877

HOSE ASSY.

HOSE - pump to filter, 46 inch long

1шт.

38

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss, Incl. Ref. 39

1шт.

39

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

42

D131293

FILTER

ASSEMBLY - hydraulic, See Figure 8-042

1шт.

43

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 x 1-5/16-12 inch thread, Includes: Ref. 44

1шт.

44

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.

47

50-3281T1

HYD TUBE

TUBE - filter to check valve

1шт.

48

50-2565T1

VALVE

- check

1шт.

49

50-3282T2

HYD TUBE

TUBE - check valve to tank drain

1шт.

55

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 56 Hex Hd, 9/16"-18 ORB

1шт.

56

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

58

18-1176

GASKET

- pump

1шт.

59

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

2шт.

60

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

61

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

62

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

63

31-35

PLUG

- square head pipe, 1/2 inch PT

2шт.
