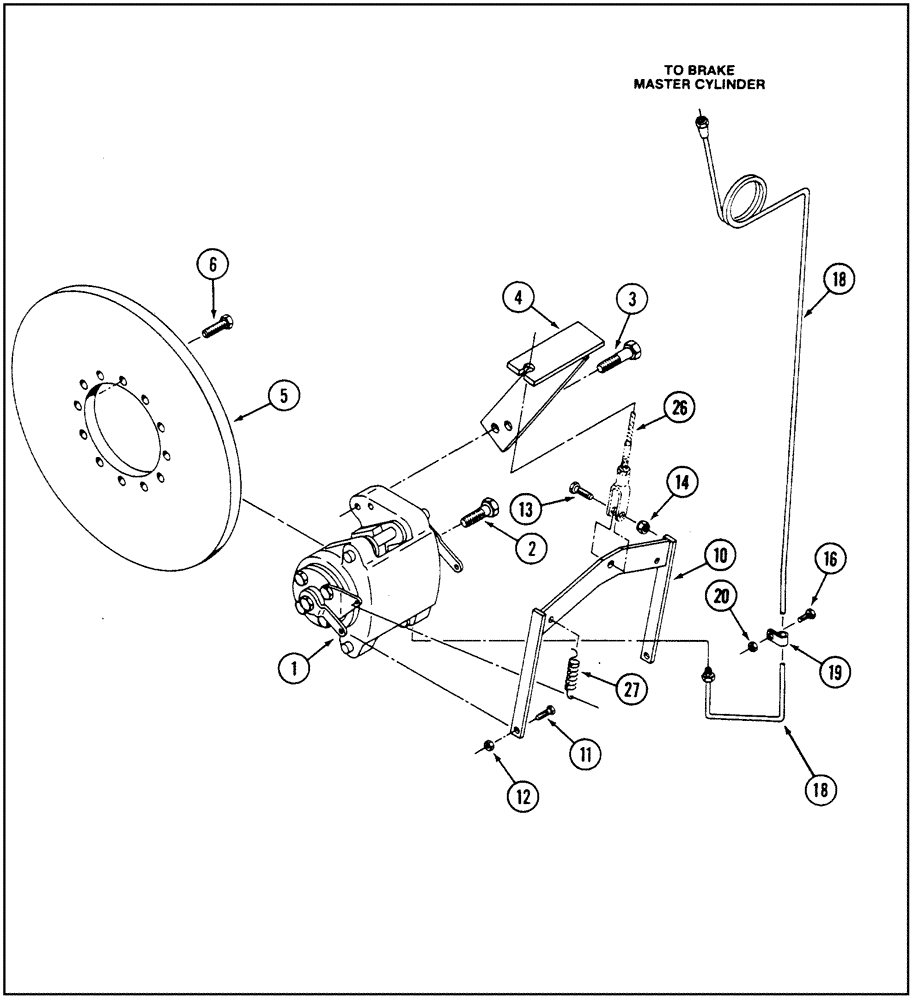

Запчасти Case IH 9240 (7-008) - BRAKE SYSTEM, BAR AXLE (07) - BRAKES

1

REF

INSTRUCTION

CALIPER ASSEMBLY - brake, parts list Figures 7-010 or 7-012

1шт.

2

9424760

SCREW,5/8" - 11 x 2", Gr 8

BOLT - hex, 5/8 NC x 2 inch, grade 8

2шт.

3

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

2шт.

4

90-6347T2

SUPPORT

BRACKET - retaining, parking brake cable

1шт.

5

90-4574T1

BRAKE DISC

DISC - brake

1шт.

6

328-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 8

12шт.

10

90-4030T1

SUPPORT

BRACKET - actuating, park brake

1шт.

11

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, grade 8

1шт.

14

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

16

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

18

90-7103T2

TUBE,0.25" OD x 51.65" L

- to brake master cylinder

1шт.

19

31-1862

CLAMP

- P-type

1шт.

20

425-106

NUT,3/8"-16, Cl 5

1шт.

26

REF

INSTRUCTION

CABLE - parking brake, See Figure 7-004 or 7-005A

1шт.

27

REF

INSTRUCTION

SPRING - return, parking brake, See Figure 7-010 or 7-012

2шт.
