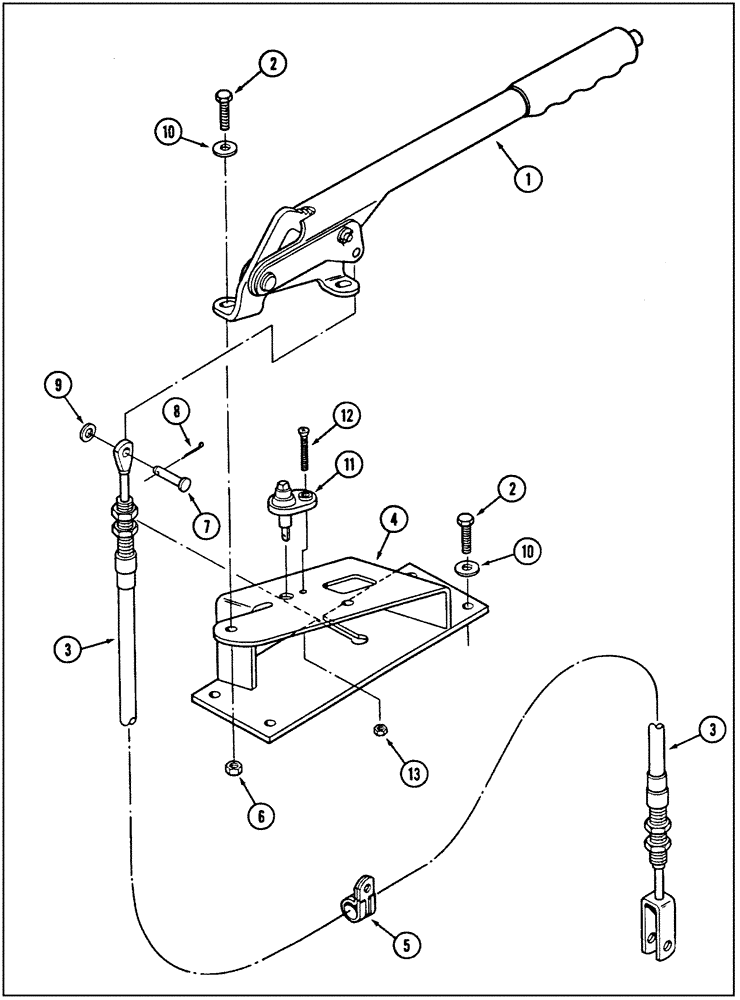

Запчасти Case IH 9240 (7-005A) - PARK BRAKE CONTROLS, P.I.N. JEE0032460 AND AFTER (07) - BRAKES

1

60-7001T1

HANDLE

LEVER - parking brake

1шт.

2

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

6шт.

3

60-7002T1

CABLE

- parking brake

1шт.

4

60-7006T1

SUPPORT

MOUNT - parking brake lever and cable

1шт.

5

31-1776

MOUNTING CLIP

CLAMP - P-type

1шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

7

427-6106

CLEVIS PIN,9.53mm OD x 26.92mm L

PIN, CLEVIS, , Hardened 3/8" x 1 1/16"

1шт.

8

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

9

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

10

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

11

1534229C1

PUSH BUTTON SWITCH

SWITCH, parking brake

1шт.

12

442-10820

SCREW,Cross Oval Hd, #8-32 x 1 1/4"

- machine, oval Phillips, No. 8 NC x 1-1/4

1шт.

13

225-14108

NUT,#8-32

- hex, No. 8 NC

1шт.
