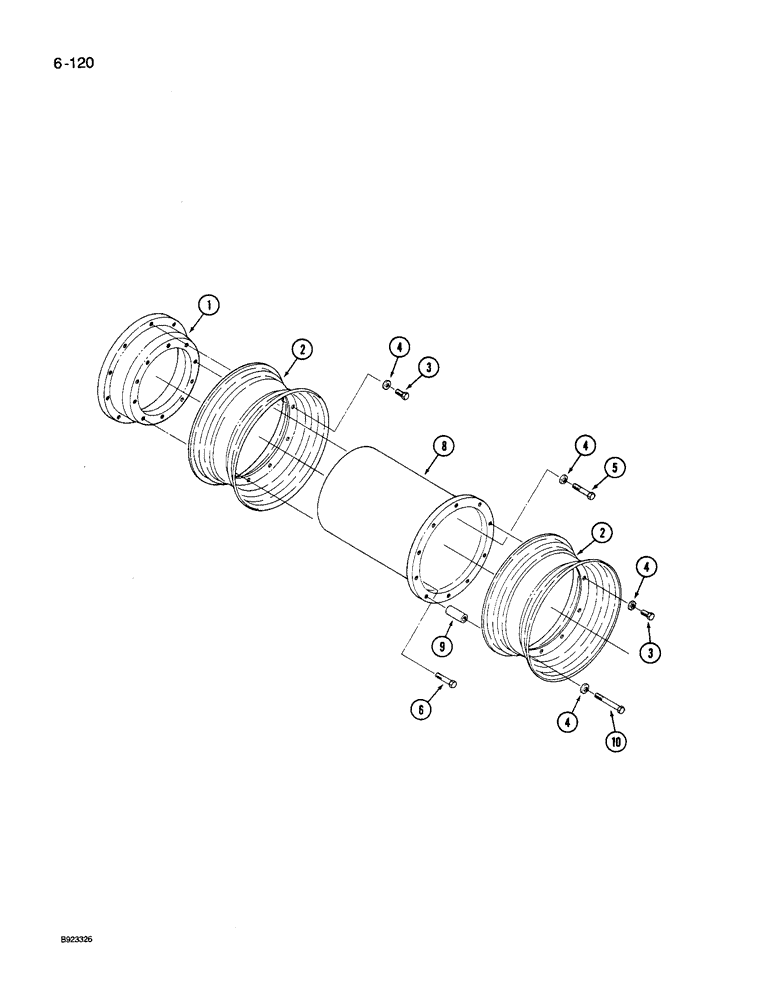

Запчасти Case IH 9240 (6-120) - ROW CROP WHEEL HUBS AND WHEELS, STEERABLE AXLE (06) - POWER TRAIN

1

30-1442T1

HUB

- mounting, wheel

4шт.

2

30-1479T1

WHEEL ASSY.

WHEEL - inner and outer, 16 x 38 inch

4шт.

2

30-1480T1

WHEEL ASSY.

WHEEL - inner and outer, 16 x 42 inch

4шт.

2

30-1472T1

WHEEL ASSY.

WHEEL - inner and outer, 18 x 38 inch

4шт.

3

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

80шт.

4

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat, 7/8 x 1-3/4 x 1/4 inch

120шт.

5

426-1472

BOLT,Hex, 7/8" - 9 x 4-1/2", Gr 8

- hex, 7/8 NC x 4-1/2 inch, grade 8

32шт.

6

25738R1

BOLT,Hex, 7/8" - 9 x 3", Gr 8

- hex, 7/8 NC x 3 inch, grade 8

8шт.

8

30-1461T1

SPACER

- wheel, dual mounting

4шт.

9

30-1471T1

SPACER

- mounting, wheel (wide spacing)

40шт.

10

326-14104

BOLT,Hex, 7/8" - 9 x 6-1/2", Gr 8

40шт.
