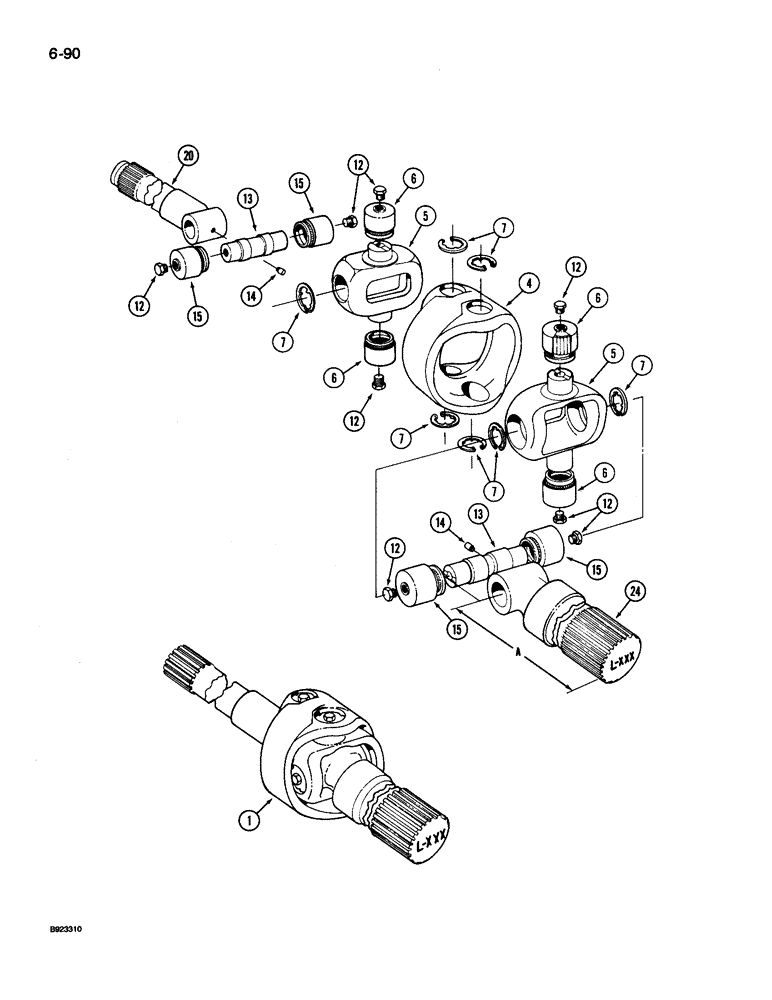

Запчасти Case IH 9240 (6-090) - STEERABLE AXLE, AXLE SHAFT (06) - POWER TRAIN

90-7320T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without limited slip differential), Includes: Ref. 1 - 24

1шт.

90-7318T91

AXLE

ASSEMBLY - front (With limited slip differential), Includes: Ref. 1 - 24

1шт.

90-7319T91

AXLE, REAR

AXLE ASSEMBLY - rear (Without limited slip differential), Includes: Ref. 1 - 24

1шт.

90-7317T91

AXLE

ASSEMBLY - rear (With limited slip differential), Includes: Ref. 1 - 24

1шт.

1

90-7418T91

HALF SHAFT

SHAFT ASSEMBLY - axle, with short inner shaft (Without limited slip differential), Includes: Ref. 4 - 24

1шт.

See Ref. 24 for identification of correct inner axle shaft.

1шт.

1

90-7417T91

HALF SHAFT

SHAFT ASSEMBLY - axle, with long inner shaft (Without limited slip differential), Includes: Ref. 4 - 24

1шт.

See Ref. 24 for identification of correct inner axle shaft.

1шт.

1

90-7416T91

DRIVE SHAFT

SHAFT ASSEMBLY - axle, with short inner shaft (With limited slip differential), Includes: Ref. 4 - 24

1шт.

See Ref. 24 for identification of correct inner axle shaft.

1шт.

1

90-7415T91

DRIVE SHAFT

SHAFT ASSEMBLY - axle, with long inner shaft (With limited slip differential), Includes: Ref. 4 - 24

1шт.

See Ref. 24 for identification of correct inner axle shaft.

1шт.

90-7419T91

JOINT

ASSEMBLY - double universal (With and without limited slip differential), Includes: Ref. 4 - 15

1шт.

4

90-7425T1

HUB

- double universal joint

1шт.

5

90-7426T1

CROSS

- universal joint

2шт.

6

90-7427T1

NEEDLE BEARING

BEARING - needle roller

4шт.

7

90-7428T1

RING, SNAP

RING - snap, 2.050 mm thick (yellow)

1шт.

7

90-7429T1

RING, SNAP

RING - snap, 2.075 mm thick (blue)

1шт.

7

90-7430T1

RING, SNAP

RING - snap, 2.100 mm thick (white)

1шт.

12

90-7431T1

PLUG

- hex, 12 mm - 1.5

8шт.

13

90-7432T1

SHAFT

- universal joint pin

2шт.

14

90-7433T1

PIN

- threaded

2шт.

15

90-7434T1

NEEDLE BEARING

BEARING - needle roller

4шт.

20

90-7420T1

SHAFT

- axle, outer, 510 mm (20-1/16 inch) long

1шт.

24

90-7424T1

HALF SHAFT

SHAFT - axle, inner, dimension "A" is 706 mm (27-13/16 inch) (Without limited slip differential)

1шт.

24

90-7423T1

HALF SHAFT

SHAFT - axle, inner, dimension "A" is 836 mm (32-15/16 inch) (Without limited slip differential)

1шт.

24

90-7422T1

SHAFT

- axle, inner, dimension "A" is 747 mm (29-7/16) (With limited slip differential)

1шт.

24

90-7421T1

SHAFT

- axle, inner, dimension "A" is 795 mm (31-5/16) (With limited slip differential)

1шт.
