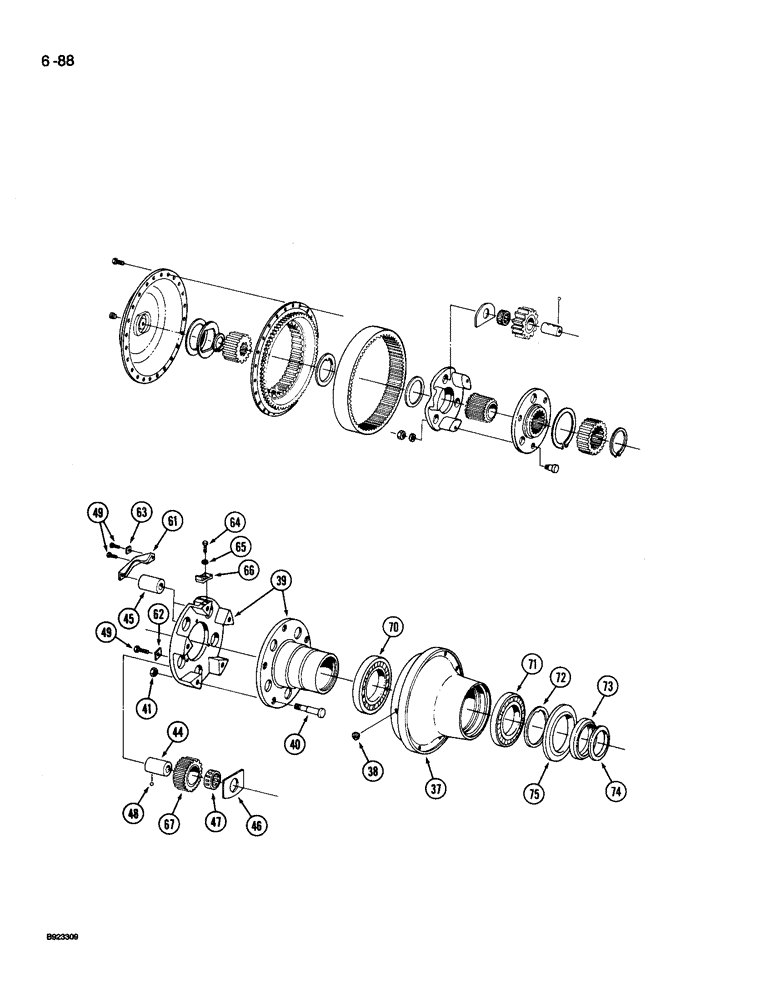

Запчасти Case IH 9240 (6-088) - STEERABLE AXLE, WHEEL HUB AND AXLE PLANETARY (CONTD) (06) - POWER TRAIN

90-7320T91

AXLE, FRONT

AXLE - front, (Without limited slip differential), Includes: Ref. 37 - 75 and 1 - 30 on Figure 6-086

1шт.

90-7318T91

AXLE

- front, (With limited slip differential), Includes: Ref. 37 - 75 and 1 - 30 on Figure 6-086

1шт.

90-7319T91

AXLE, REAR

AXLE - rear, (Without limited slip differential), Includes: Ref. 37 - 75 and 1 - 30 on Figure 6-086

1шт.

90-7317T91

AXLE

- rear, (With limited slip differential), Includes: Ref. 37 - 75 and 1 - 30 on Figure 6-086

1шт.

37

90-7441T1

HUB

- wheel, left or right

2шт.

38

90-4484T1

PLUG

- magnetic, 24 mm - 1.5

2шт.

90-7439T91

CARRIER

ASSEMBLY - inner planetary, Includes: Ref. 39 - 67

2шт.

39

90-7440T91

CARRIER

ASSEMBLY - inner planetary, Includes: Ref. 40 & 41 and both halves

1шт.

40

90-4538T1

SCREW

BOLT - shoulder

5шт.

41

16-1598

NUT

- hex, 16 mm - 1.5

5шт.

44

90-2567T1

PIN

SHAFT - planetary pin (With lube hole)

3шт.

45

90-4536T1

LARGE PIN

SHAFT - planetary pin (Without lube hole)

2шт.

46

1-8341

SPACER

PLATE - spacer, wear

10шт.

47

1-8340

BEARING, NEEDLE

BEARING - needle roller (2 per gear)

10шт.

48

16-1607

BALL

- steel

5шт.

49

16-1626

BOLT,Hex, M8 x 1.25 x 15mm, Gr 10.9

BOLT - hex, 8 x 15 mm, class 10.9

6шт.

61

90-4530T1

LARGE PLATE

PLATE - baffle

1шт.

62

90-4531T2

NUT

TAB - locking, 4 mm thick

3шт.

63

90-6731T1

NUT

TAB - locking, 2 mm thick

2шт.

64

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

65

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

66

90-4532T1

LARGE PLATE

PLATE - oil

1шт.

67

1-8339

PINION

GEAR - pinion, planetary (19 Tooth)

5шт.

70

90-4498T1

TAPERED BEARING,170mm ID x 230mm OD x 32mm W

- taper roller

2шт.

71

90-4500T1

TAPERED BEARING,169.97mm ID x 239.97mm OD x 0mm W

- taper roller

2шт.

72

90-4477T2

DISC

DISK - spacer

2шт.

73

90-7086T1

RING

- shoulder

2шт.

74

90-5989T1

SEALING RING

SEAL - oil, stub axle

2шт.

75

90-5988T1

SEALING RING

- stub axle

2шт.
