Запчасти Case IH 9240 (6-084) - STEERABLE AXLE, TIE RODS (06) - POWER TRAIN

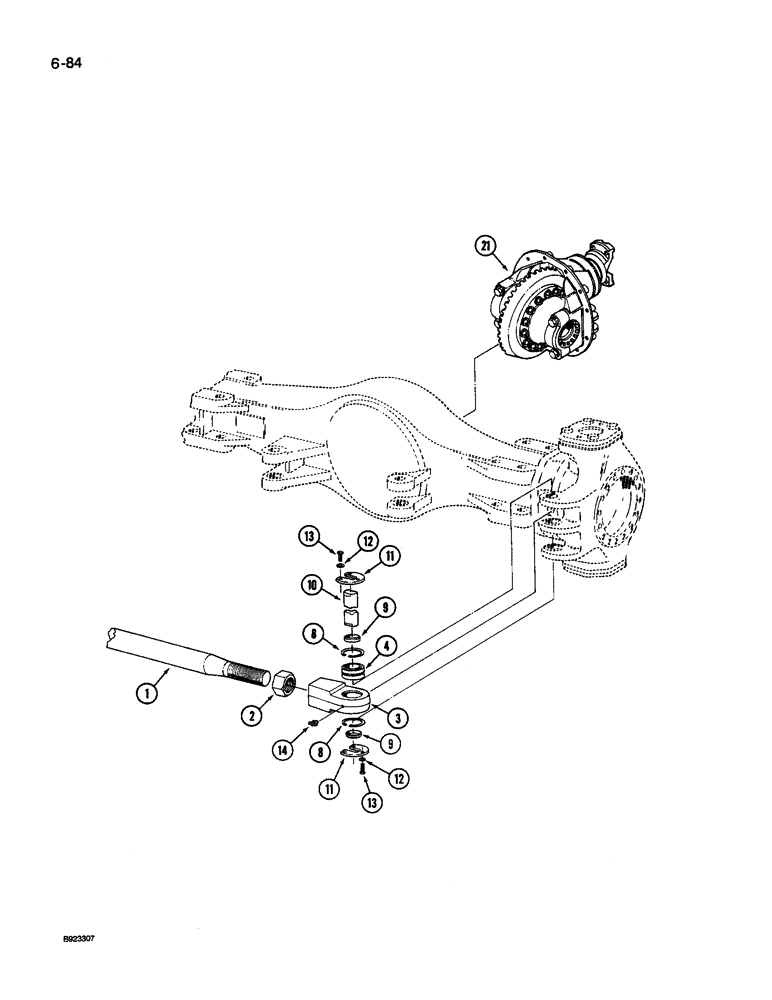

Схема запчастей Case IH 9240 - (6-084) - STEERABLE AXLE, TIE RODS (06) - POWER TRAIN
12
21
11
8
11
13
4
8
2
10
3
12
9
9
14
1
13

Артикул

Название

Примечание

Количество

90-7320T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without limited slip differential), Includes: Ref. 1 - 21

1шт.

90-7318T91

AXLE

ASSEMBLY - front (With limited slip differential), Includes: Ref. 1 - 21

1шт.

90-7319T91

AXLE, REAR

AXLE ASSEMBLY - rear (Without limited slip differential), Includes: Ref. 1 - 21

1шт.

90-7317T91

AXLE

ASSEMBLY - rear (With limited slip differential), Includes: Ref. 1 - 21

1шт.

1

90-7472T1

DRAG LINK

ROD - tie, front or rear

1шт.

2

90-7473T1

NUT

- retainer, right-hand thread

1шт.

2

90-7474T1

NUT

- retainer, left-hand thread

1шт.

3

90-7475T1

BALL JOINT

HOUSING - ball joint, right-hand thread

1шт.

3

90-7476T1

BALL JOINT

HOUSING - ball joint, left-hand thread

1шт.

4

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self aligning, cylinder pivot

2шт.

8

90-7477T1

RING, SNAP

RING - snap, bearing retainer

4шт.

9

2-3223T1

SPACER

- housing

4шт.

10

90-7478T1

PIN

- tie rod and steering cylinder

2шт.

11

90-7479T1

RING, SNAP

PLATE - retainer, tie rod pin

4шт.

12

90-7481T1

LOCK WASHER

- lock, 10 mm

6шт.

13

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex, 10 x 20 mm, class 10.9

6шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

21

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - without limited slip differential, See Figure 6-096 and 6-098

1шт.

21

REF

INSTRUCTION

DIFFERENTIAL ASSEMBLY - with limited slip differential, See Figure 6-100 and 6-102

1шт.

Выбрано товаров: 19
