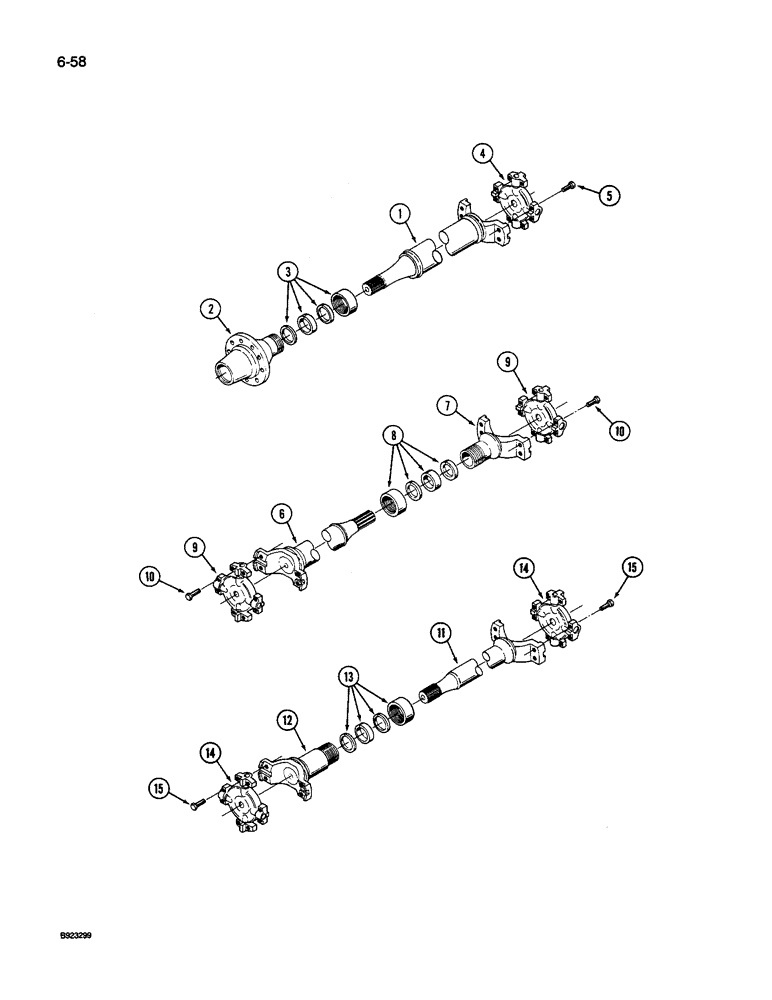

Запчасти Case IH 9240 (6-058) - DRIVE SHAFT, ENGINE TO TRANSMISSION, 9240 TRACTOR (06) - POWER TRAIN

90-7234T92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, input, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT - flanged

1шт.

3

90-6541T1

SEAL

- shaft retainer

1шт.

4

90-1907T3

DIFF. SPIDER

SPIDER - shaft, 6C

1шт.

5

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8

4шт.

90-7235T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, front axle

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - tube, front axle

1шт.

8

2-3829T1

SEAL RETAINER

- shaft retainer, front axle

1шт.

9

90-1907T3

DIFF. SPIDER

SPIDER - shaft 6C, front axle

2шт.

10

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8, front axle

8шт.

90-7237T91

DRIVE SHAFT

SHAFT ASSEMBLY - drive, rear axle, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - slip yoke, rear axle

1шт.

12

NSS

NOT SOLD SEPARAT

SHAFT - tube, rear axle

1шт.

13

2-3829T1

SEAL RETAINER

- shaft retainer, rear axle

1шт.

14

90-1907T3

DIFF. SPIDER

SPIDER - shaft, 6C, rear axle

2шт.

15

28-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

- hex, 3/8 NF x 1-3/4 inch, grade 8, rear axle

8шт.
