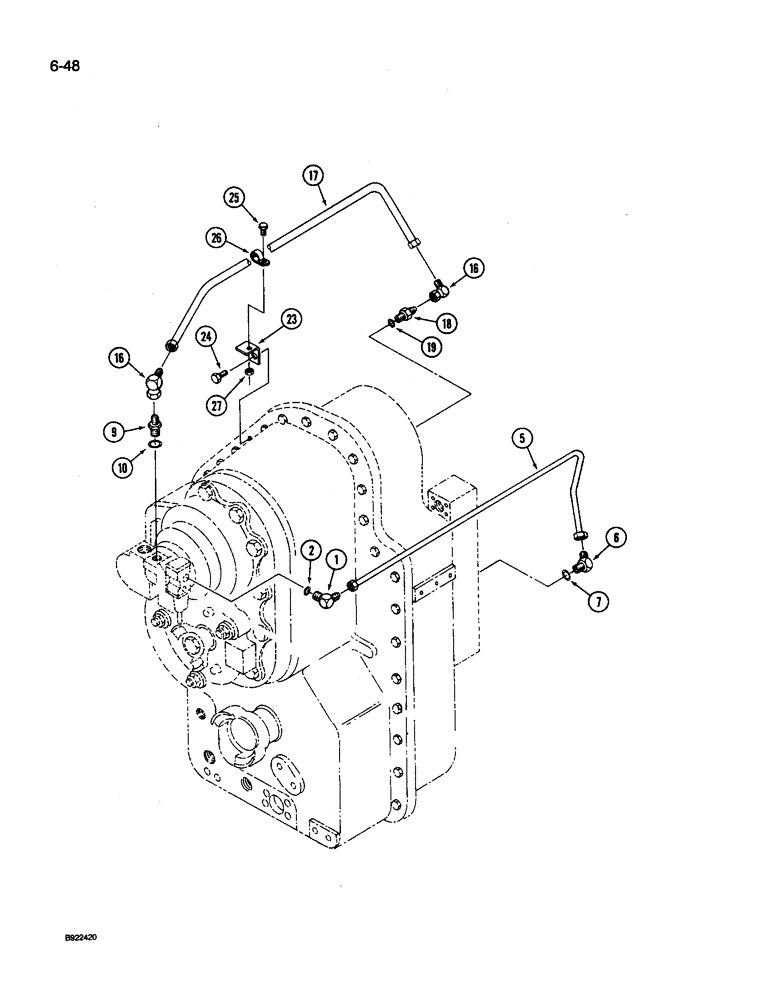

Запчасти Case IH 9240 (6-048) - TRANSMISSION LUBRICATION, TRANSMISSION WITH PTO SYSTEM (06) - POWER TRAIN

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve (With PTO system only)

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring, Includes: Ref. 7

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4 inch thread

2шт.

17

90-6889T1

TUBE,.5" OD

- regulator valve to PTO control valve (With PTO system only)

1шт.

18

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

90-6894T1

SUPPORT

BRACKET - support, clamp

1шт.

24

SM8121240

BOLT

BOLT - hex, 12 mm - 1.75 x 40 mm

1шт.

25

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

1шт.

26

31-1775

CLAMP

- tube

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.

35-1919T91

KIT - PTO, with three point hitch (9240 and 9260 Tractor) (Machinery Item)

1шт.

35-1921T91

KIT - PTO, with three point hitch (9250 Tractor) (Machinery Item)

1шт.

35-1920T91

KIT - PTO, without three point hitch (9240 and 9260 Tractor) (Machinery Item)

1шт.

35-1922T91

KIT - PTO, without three point hitch (9250 Tractor) (Machinery Item)

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
