Запчасти Case IH 9240 (6-032) - TRANSMISSION, LUBRICATION PUMP (06) - POWER TRAIN

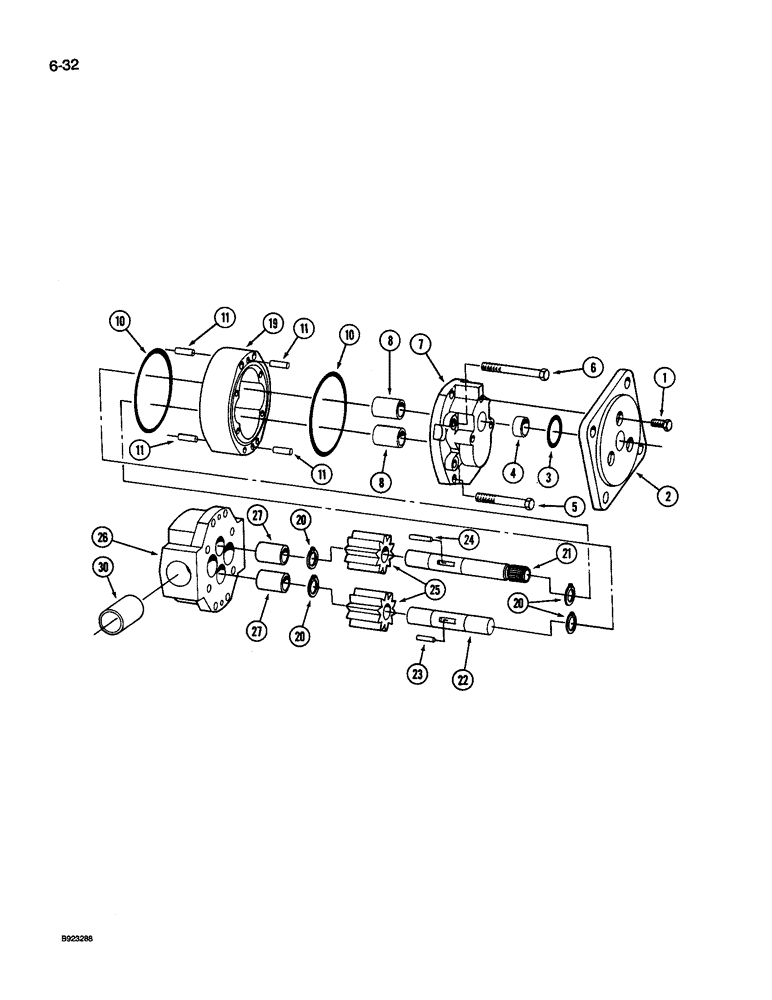

Схема запчастей Case IH 9240 - (6-032) - TRANSMISSION, LUBRICATION PUMP (06) - POWER TRAIN
6
2
3
11
30
11
8
25
19
11
26
20
11
24
7
1
10
10
23
5
8
21
20
27
4
20
27
22

Артикул

Название

Примечание

Количество

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 30

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9250 and 9260 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 30

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

33-1524T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - lubrication, Includes: Ref. 1 - 30

1шт.

33-1524T91R

REMAN-HYD PUMP

9240, 9260 Both (10/90-10/94), 9250 (9/90-5/95)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

1

33-1540T1

SCREW

BOLT - hex

3шт.

2

33-1541T1

ADAPTER

ADAPTER - pump mounting

1шт.

3

33-1542T1

O-RING

O-RING - seal

1шт.

4

33-1543T1

RING

RING - locating

1шт.

5

33-1544T1

SCREW

BOLT - hex, short

4шт.

6

33-1545T1

SCREW

BOLT - hex, long

4шт.

7

33-1546T1

HOUSING

HOUSING ASSEMBLY - front, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

BUSHING - front housing

2шт.

10

33-1547T1

O-RING

O-RING - seal, pump housing

2шт.

11

33-1548T1

DOWEL

PIN - dowel

4шт.

19

33-1549T1

HOUSING

HOUSING - center

1шт.

20

33-1550T1

RING, SNAP

RING SNAP RING - snap

4шт.

21

33-1551T1

DRIVE SHAFT

SHAFT - drive

1шт.

22

33-1552T1

SHAFT

SHAFT - idler

1шт.

23

33-1553T1

KEY

KEY - dowel, idler shaft

1шт.

24

33-1554T1

HITCH ASSY

KEY - dowel, drive shaft

1шт.

25

33-1555T1

PINION

GEAR - pump

2шт.

26

33-1556T1

HOUSING

HOUSING ASSEMBLY - rear, Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

BUSHING - rear housing

2шт.

30

33-1557T1

TUBE

TUBE - inlet

1шт.

Выбрано товаров: 27
