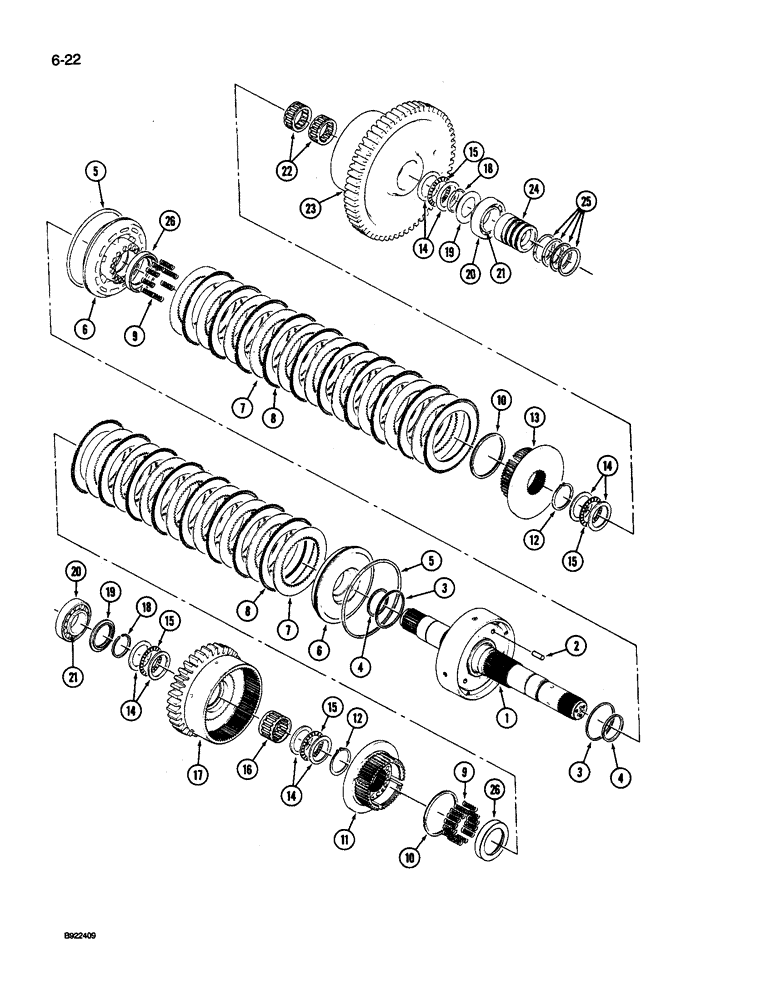

Запчасти Case IH 9240 (6-022) - TRANSMISSION, 8 INCH CLUTCH PACK (06) - POWER TRAIN

90-7354T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9240 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 26

1шт.

90-7015T91

TRANSMISSION

TRANSMISSION ASSEMBLY - 9250 and 9260 tractor, complete parts list on Figures 6-006 through 6-034, Includes: Ref. 1 - 26

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S4000S02H

CLUTCH ASSEMBLY

CLUTCH PACK ASSEMBLY - 8 inch (9240 Tractor), Includes: Ref. 1 - 26

1шт.

S4000S02F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 8 inch (9250 and 9260 Tractor), Includes: Ref. 1 - 26

1шт.

1

S4900S02F

SHAFT ASSY.

SHAFT - drum

1шт.

2

S4680S02F

SPECIAL NUT

PIN - guide, 11 mm diameter

4шт.

3

S4420S00F

RING

RING - piston

2шт.

4

S4410S00F

RING

RING - piston

2шт.

5

S4430S00F

RING

RING - sealing

2шт.

6

S4180S02F

PISTON

PISTON - clutch

2шт.

7

S4070S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - flat steel, 2.4 mm thick

1шт.

For 9240 Tractor, Ref. 7, a total of 11 steel plates must be used. For 9250 and 9260 Tractor, Ref. 7, a total of 18 steel plates must be used.

1шт.

7

S4110S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - flat steel, 2.1 mm thick

1шт.

For 9240 Tractor, Ref. 7, a total of 11 steel plates must be used. For 9250 and 9260 Tractor, Ref. 7, a total of 18 steel plates must be used.

1шт.

8

33-1519T1

NOTCHED DISK

PLATE - faced

18шт.

9

S4440S00F

SPRING

SPRING - return, piston

22шт.

10

S4390S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

11

S4100S01H

HUB

HUB - clutch (9240 Tractor)

1шт.

11

S4100S01G

HUB

HUB - clutch (9250 and 9260 Tractor)

1шт.

12

S2100S00F

RING, SNAP

RING SNAP RING - snap, external retaining

2шт.

13

S4380S01H

HUB

HUB - clutch (9240 Tractor)

1шт.

13

S4380S01G

HUB

HUB - clutch (9250 and 9260 Tractor)

1шт.

14

H144527

WASHER,63.55mm ID x 82.3mm OD x 3.2mm Thk

WASHER - thrust, bearing

8шт.

15

572182R1

THRUST BEARING,63.5mm ID x 82.5mm OD x 1.98mm W

BEARING - thrust

4шт.

16

S2210S00F

BEARING, ROLLER

BEARING - roller

1шт.

17

S4210S00F

PINION

GEAR - output (38 tooth)

1шт.

18

S2240S00F

RING, SNAP

RING SNAP RING - retaining

2шт.

19

S4040S00F

SPACER

SPACER - bearing

2шт.

20

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

2шт.

21

ST2016A

BEARING

BEARING - tapered roller

2шт.

22

S2030S00F

BEARING, ROLLER

BEARING - roller

2шт.

23

S4170S00F

PINION

GEAR - output (59 tooth)

1шт.

24

S4160S00F

SLEEVE

CARRIER - piston ring

1шт.

25

S4150S00F

RING

RING - sealing

4шт.

26

S4530S02F

LARGE PLATE

PLATE, LARGE PLATE - spring retaining (Replaces S4530S01F)

2шт.

35-1930T91

KIT

KIT - transmission, rebuild (9240 Tractor), Includes: Ref. 12, 17 and 23 and parts on Figures 6-018, 6-020, 6-024, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030

1шт.

35-1931T91

KIT

KIT - transmission, rebuild (9250 and 9260 Tractor), Includes: Ref. 12, 17 and 23 and parts on Figures 6-018, 6-020, 6-024, 6-028 and all parts of 33-1559T1 gasket kit on Figure 6-030

1шт.
