Запчасти Case IH 9240 (6-004) - TRANSMISSION MOUNTING, P.I.N. JCB0028400 AND AFTER (06) - POWER TRAIN

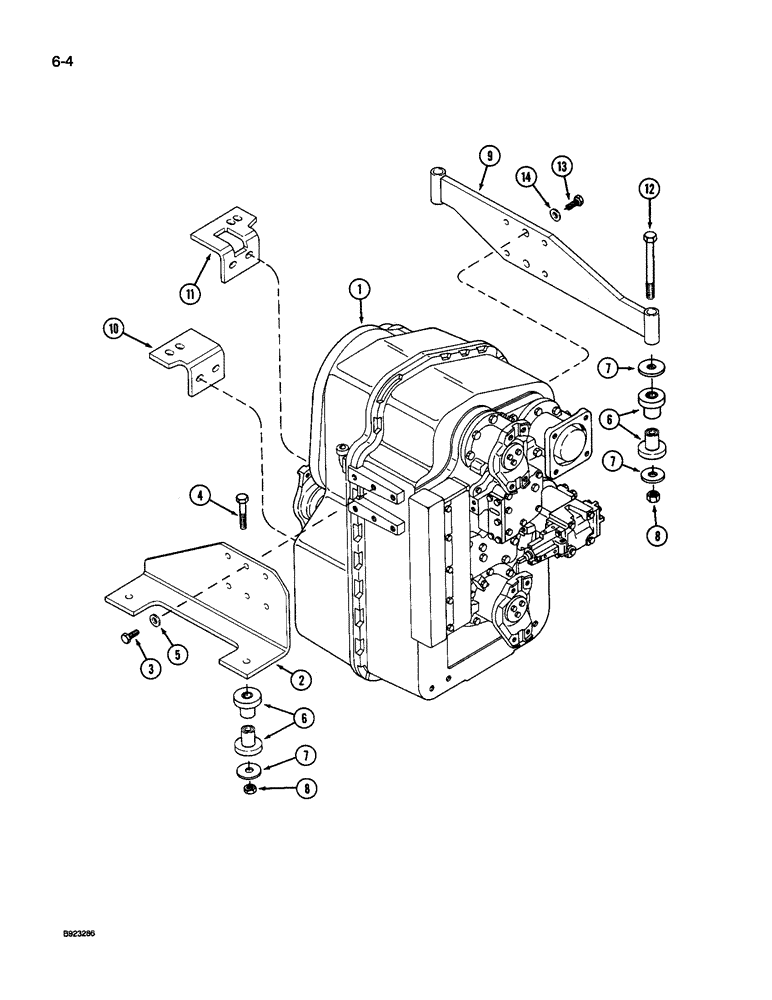

Схема запчастей Case IH 9240 - (6-004) - TRANSMISSION MOUNTING, P.I.N. JCB0028400 AND AFTER (06) - POWER TRAIN
8
6
2
6
7
5
13
12
9
8
11
4
14
7
10
7
1
3

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

TRANSMISSION ASSEMBLY - tractor, See Figures 6-006 through 6-034

1шт.

2

90-6255T1

SUPPORT

BRACKET - transmission mounting, right

1шт.

3

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

10шт.

4

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

- hex, 5/8 NC x 3-1/2 inch, grade 8

4шт.

5

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

12шт.

6

R49921

RUBBER MOUNTING

BUSHING - rubber, isolator

12шт.

7

496-81011

WASHER,21/32" x 3" x .179", HDN

- flat, 21/32 x 3 x 3/16 inch

10шт.

8

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

6шт.

9

90-7563T1

SUPPORT

BRACKET - transmission mounting, left

1шт.

10

90-7567T1

SUPPORT

BRACKET - mounting, 6-1/2 inch width

1шт.

11

90-7562T2

SUPPORT

BRACKET - mounting, 7-1/8 inch width

1шт.

12

426-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

- hex, 5/8 NC x 7 inch

2шт.

13

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

- hex, 5/8 NC x 1-3/4 inch, grade 8

6шт.

14

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

Выбрано товаров: 14
