Запчасти Case IH 9240 (5-028) - REAR STEERING CONTROL VALVE (05) - STEERING

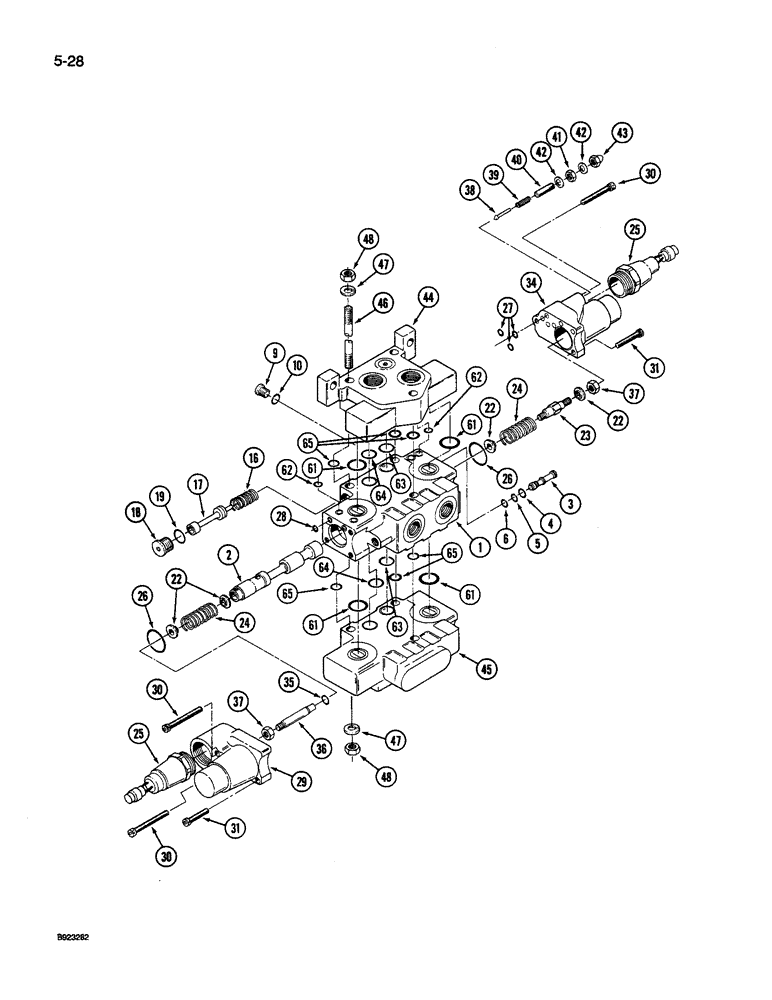

Схема запчастей Case IH 9240 - (5-028) - REAR STEERING CONTROL VALVE (05) - STEERING
24
37
36
35
9
61
61
17
25
65
2
30
44
5
29
22
47
61
31
23
42
30
46
26
1
47
39
34
6
42
62
28
45
16
64
65
64
38
27
22
4
40
65
25
61
18
63
26
41
43
24
31
37
48
62
10
48
3
19
30
22
63

Артикул

Название

Примечание

Количество

50-3286T91

VALVE

ASSEMBLY - control, rear steering, Includes: Ref. 1 - 65

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

3

A47209

SPOOL

SHUTTLE ASSEMBLY - primary, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - shuttle

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - shuttle

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - shuttle

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

9

31-2935

PLUG

ASSEMBLY- socket head, Includes: Ref. 10

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

16

50-3394T1

SPRING

- compensator

1шт.

17

NSS

NOT SOLD SEPARAT

SPOOL - compensator

1шт.

18

86625138

PLUG,7/18" - 14

Assy, Includes Ref. 19 Hex Soc, 7/8"-14 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - plug

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

22

S301472

RETAINER

- spring

4шт.

23

50-3392T1

COUPLING

-, Serial Range: solenoid-spool

1шт.

24

50-3391T1

SPRING

- centering, solenoid

1шт.

25

50-3390T1

VALVE

SOLENOID - valve

2шт.

26

NSS

NOT SOLD SEPARAT

O-RING - solenoid housing

2шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

27

NSS

NOT SOLD SEPARAT

O-RING - solenoid housing

3шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - solenoid housing

2шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

29

50-3388T1

HOUSING

- solenoid

1шт.

30

461-32524

HEX SOC SCREW,1/4"-20 x 1 1/2"

SCREW, Hex Soc Hd, 1/4"-20 x 1 1/2"

3шт.

31

461-32516

HEX SOC SCREW,1/4"-20 x 1"

BOLT - socket head

2шт.

34

50-3386T1

HOUSING

- solenoid

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING - coupling

1шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

36

50-3387T1

COUPLING

-, Serial Range: solenoid-spool

1шт.

37

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

38

50-1751T1

VALVE POPPET

POPPET - pilot

1шт.

39

50-3385T1

SPRING

- poppet

1шт.

40

484-43116

SET SCREW,Hex Soc, 5/16"-24 x 1"

1шт.

41

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

42

NSS

NOT SOLD SEPARAT

WASHER - sealing

2шт.

43

50-3384T1

SPECIAL NUT

NUT - cap

1шт.

44

50-3383T1

COVER

- inlet section

1шт.

45

50-3382T1

COVER

- end

1шт.

46

50-3380T1

STUD

- valve

3шт.

47

492-11038

LOCK WASHER,3/8"

6шт.

48

425-106

NUT,3/8"-16, Cl 5

6шт.

61

NSS

NOT SOLD SEPARAT

O-RING - valve

4шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

62

NSS

NOT SOLD SEPARAT

O-RING - valve

4шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

63

NSS

NOT SOLD SEPARAT

O-RING - valve

2шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

64

NSS

NOT SOLD SEPARAT

O-RING - valve

2шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

65

NSS

NOT SOLD SEPARAT

SHIM - valve

6шт.

Part of control valve seal kit P/N 50-3379T1.

1шт.

50-3379T1

SEAL KIT

KIT - seal, control valve Includes: Ref. 4 - 6, 10, 19, 26 - 28, 35, 61 - 65

1шт.

Выбрано товаров: 58
