(5-016) - STEERING SYSTEM HYDRAULICS, REAR STEERING, P.I.N. JCB0028400 AND AFTER

Запчасти Case IH 9240 (5-016) - STEERING SYSTEM HYDRAULICS, REAR STEERING, P.I.N. JCB0028400 AND AFTER (05) - STEERING

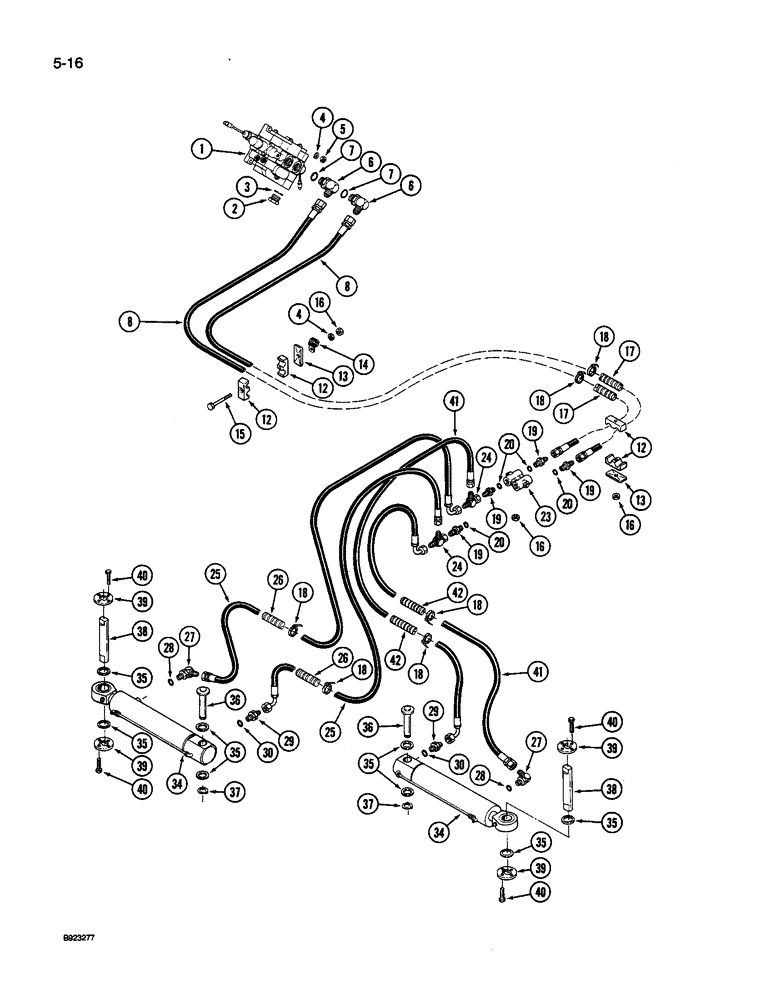

Схема запчастей Case IH 9240 - (5-016) - STEERING SYSTEM HYDRAULICS, REAR STEERING, P.I.N. JCB0028400 AND AFTER (05) - STEERING
25
4
42
18
40
40
8
28
19
40
12
34
36
30
12
18
4
35
19
13
15
3
17
8
20
18
35
5
24
7
25
26
16
7
29
13
27
16
39
18
23
30
41
27
39
35
2
38
35
19
24
39
29
26
19
35
16
1
8
37
36
18
17
41
6
34
42
35
37
39
38
20
40
28
20
12
14
18
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

50-3286T91

VALVE

ASSEMBLY - rear steering, See Figure 5-028

1шт.

2

9410363

PLUG

- o-ring, 1-5/16 inch thread, Includes: Ref. 3

1шт.

3

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

5

231-1446

NUT,3/8" - 16, Gr 5

NUT - light hex, self-locking, 3/8 inch NC

1шт.

6

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

32-152

HOSE

- hydraulic, steering valve to lock valve, 104 inch long

2шт.

12

50-2551T1

CLAMP

- hose, split, halves

4шт.

13

50-2533T1

PLATE

COVER - clamp

2шт.

14

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

15

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

16

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

3шт.

17

50-2741T1

CONDUIT

GUARD - hose protector, 30 inch (Order S119717 and, Serial Range: cut-length)

2шт.

18

19-135

CABLE TIE

STRAP - tie, nylon

6шт.

19

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 20 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

20

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

23

50-1220T91

VALVE

ASSEMBLY - lock, See Figure 5-032

1шт.

24

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

2шт.

25

31-2927

HOSE

- hydraulic, lock, Serial Range: valve-cylinder

2шт.

26

50-2905T1

CONDUIT

GUARD - hose, protector, 45 inch (Order S119717 and, Serial Range: cut-length)

2шт.

27

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 28

2шт.

28

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

29

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 30

2шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

34

50-3272T94

STEERING CYLINDER

CYLINDER - steering, See Figure 5-030

2шт.

35

2-3223T1

SPACER

- cylinder mounting

8шт.

36

50-3314T2

PIN

- cylinder retaining

2шт.

37

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

38

90-7478T1

PIN

- cylinder retaining

2шт.

39

90-7479T1

RING, SNAP

RING - cylinder retaining pin

4шт.

40

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex special, 10 x 20 mm, class 10.9

16шт.

41

31-2974

HOSE

- lock valve to steering cylinder, 29 inch long

2шт.

42

50-2697T1

CONDUIT

GUARD - hose protector, 15 inch (Order S119717 and, Serial Range: cut-length)

2шт.
