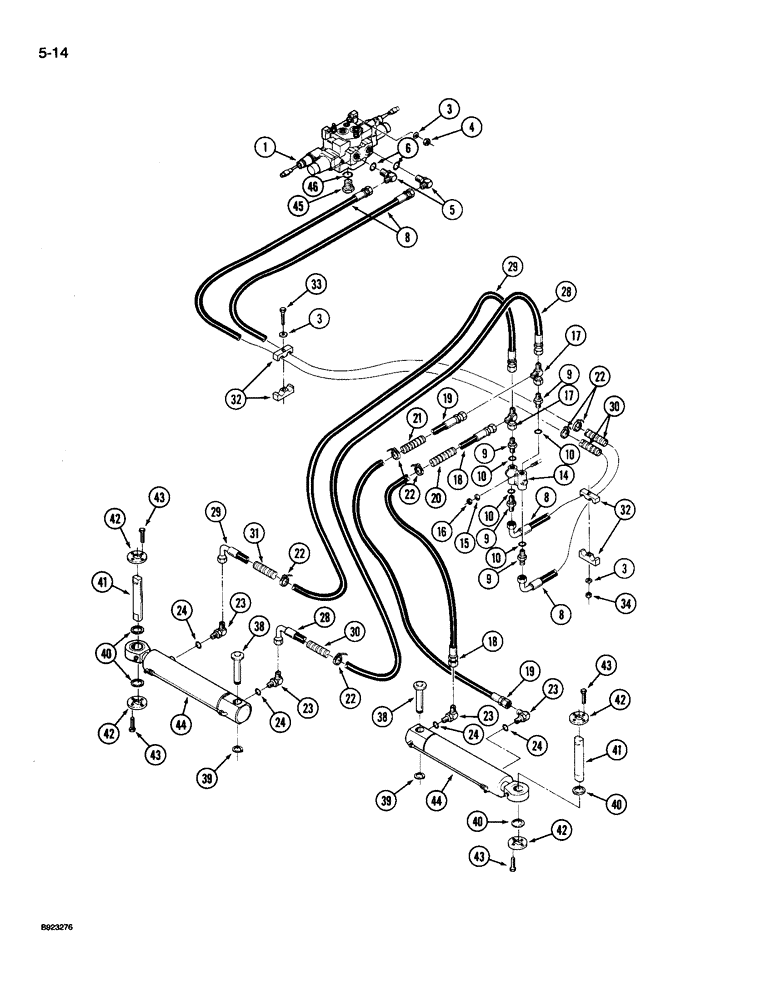

Запчасти Case IH 9240 (5-014) - STEERING SYSTEM HYDRAULICS, REAR STEERING, PRIOR TO P.I.N. JCB0028400 (05) - STEERING

1

50-3286T91

VALVE

ASSEMBLY - rear steering, See Figure 5-028

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

7шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 7/8 x 3/4 inch thread, Includes: Ref. 6

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

31-2973

HOSE ASSY.

HOSE - steering valve to lock valve, 98 inch

2шт.

8

31-2874

HOSE ASSY.

HOSE - steering valve to lock valve, 106 inch

2шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

14

50-1220T91

VALVE

ASSEMBLY - lock

1шт.

Alternative position; part rotated 90 degree. For component breakdown, See Figure 5-032.

1шт.

15

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

17

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

2шт.

18

31-2066

HOSE ASSY.

HOSE - lock valve to steering cylinder, 22 inch

1шт.

18

31-2974

HOSE

- lock valve to steering cylinder, 29 inch

1шт.

19

32-150

HOSE

- lock valve to steering cylinder, 26-1/2 inch

1шт.

20

50-2697T1

CONDUIT

GUARD - hose, protector, 15 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

21

50-2696T1

HOSE

GUARD - hose, protector, 20 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

22

19-135

CABLE TIE

STRAP - nylon

18шт.

23

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 24

4шт.

24

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 ID x 3/32 inch

4шт.

28

31-2928

HOSE ASSY.

HOSE - lock valve to steering cylinder, 43 inch

1шт.

29

31-2927

HOSE

- lock valve to steering cylinder, 52 inch

1шт.

30

50-2741T1

CONDUIT

GUARD - hose, protector, 30 inch (Order S119717 conduit and, Serial Range: cut-length)

3шт.

31

50-2905T1

CONDUIT

GUARD - hose, protector, 45 inch (Order S119717 conduit and, Serial Range: cut-length)

1шт.

32

50-2554T1

CLAMP

- hose, split halves

4шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

38

50-3314T2

PIN

- retainer, steering cylinder

2шт.

39

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

40

2-3223T1

SPACER

- cylinder, mounting

4шт.

41

90-7478T1

PIN

- retainer, steering cylinder

2шт.

42

90-7479T1

RING, SNAP

RING - retaining, cylinder pin

4шт.

43

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex, 10 x 20 mm, class 10.9

16шт.

44

50-3272T94

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, See Figure 5-030

2шт.

45

9410363

PLUG

- o-ring, 1-5/16 inch thread, Includes: Ref. 46

1шт.

46

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 ID x 1/8 inch

1шт.
