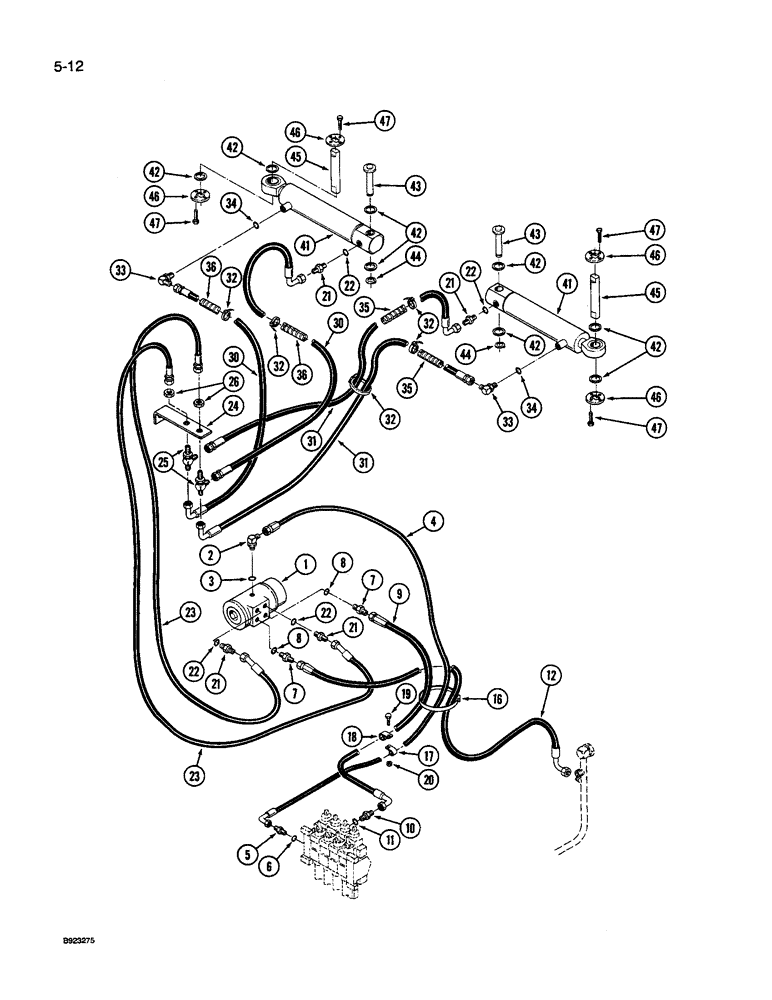

Запчасти Case IH 9240 (5-012) - STEERING SYSTEM HYDRAULICS, FRONT STEERING, P.I.N. JCB0028400 AND AFTER (05) - STEERING

1

50-2600T91

UNIT

VALVE - steering control, See Figure 5-024

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

31-2988

HOSE

- 38-1/2 inch, control valve

1шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 6

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Boss end

1шт.

7

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

32-258

HOSE

- 60 inch, control valve

1шт.

10

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring, Includes: Ref. 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

12

31-3013

HOSE

-, Serial Range: valve-drain

1шт.

16

50-2037T1

STRAP

- nylon retaining

1шт.

17

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

18

31-1348

CLAMP

- hose retaining

1шт.

19

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

1шт.

20

231-1446

NUT,3/8" - 16, Gr 5

NUT - light hex, self-locking, 3/8 inch NC

1шт.

21

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x o-ring boss, Incl. Ref 22

4шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

23

31-2521

HOSE

- 45 inch, control valve to mounting bracket

2шт.

24

50-3324T1

SUPPORT

BRACKET - tee mounting

1шт.

25

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch flare branch x flare x bulkhead flare

2шт.

26

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

30

31-2974

HOSE

- bulkhead tee to steering cylinder, 29 inch

2шт.

31

31-2927

HOSE

- 52 inch, bulkhead, Serial Range: tee-cylinder

2шт.

32

19-135

CABLE TIE

STRAP - tie, nylon

5шт.

33

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 34

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

50-2905T1

CONDUIT

GUARD - hose, protector, 45 inch (Order S119717 and, Serial Range: cut-length)

2шт.

36

50-2697T1

CONDUIT

GUARD - hose protector, 15 inch (Order S119717 and, Serial Range: cut-length)

2шт.

41

50-3272T94

STEERING CYLINDER

CYLINDER - steering, See Figure 5-030

2шт.

42

2-3223T1

SPACER

- cylinder mounting

8шт.

43

50-3314T2

PIN

- cylinder retaining

2шт.

44

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

45

90-7478T1

PIN

- cylinder retaining

2шт.

46

90-7479T1

RING, SNAP

RING - cylinder retaining pin

4шт.

47

90-7480T1

BOLT,Hex, M10 x 20, Cl 10.9

BOLT - hex special, 10 - 1.5 x 20 mm, class 10.9

16шт.
